Bruker Daltonik GmbH Instrument Layout
3.1.1 Instrument Controller
When the instrument is ready for operation the three green LED’s Mains, Ready, and
Access illuminate green light as shown in Figure 3-2.

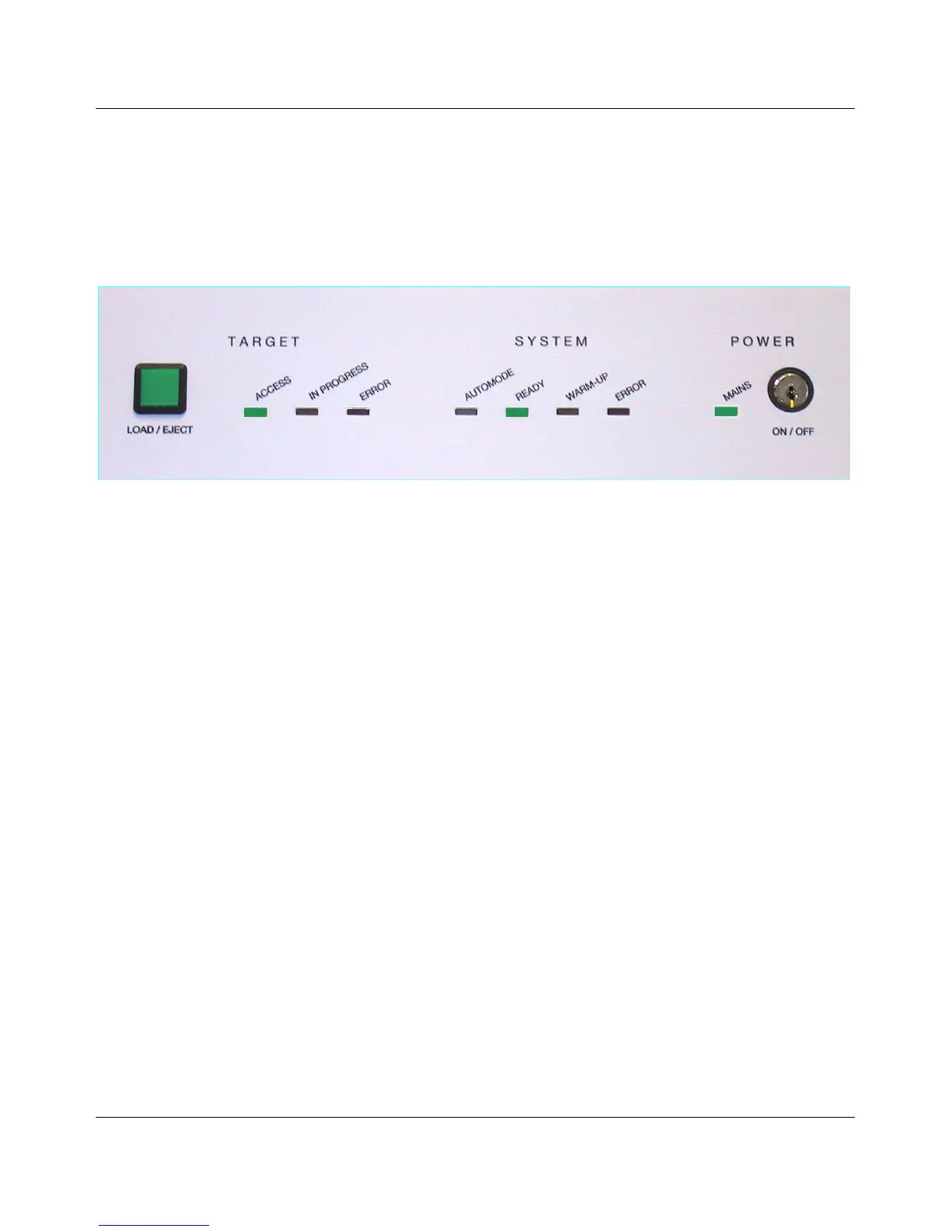

Figure 3-2 Control panel at the front of the instrument
1. Load / Eject: Moves the target in or out.
2. Access:
a) Permanently lit: When either the tray is inside or outside the instrument in the
end position.
b) OFF: During the target moves in or out.
3. In Progress: Permanently lit as long as the docking procedure is in progress
(Target In/ Out).
4. Error:
a) Permanently lit: Malfunction, requires intervention of the user or a service
technician details are shown on the PC (flexControl).
b) Flashing (combined with system error): Service mode or firmware update.
5. Automode: Permanent lit as long as AutoXecute is in progress. During this run
applying the related button cannot retract the target plate.
6. Ready:
a) Permanently lit: Ready for acquiring spectra, i.e. any interlock is closed; N
2
pressure is correct, sufficient vacuum, HV present, etc.
b) OFF: During the docking procedure.
7. Warm up:
