Bruker ultraflex III - Example of the Structure of a Bruker ID

Bruker Daltonik GmbH Instrument Layout

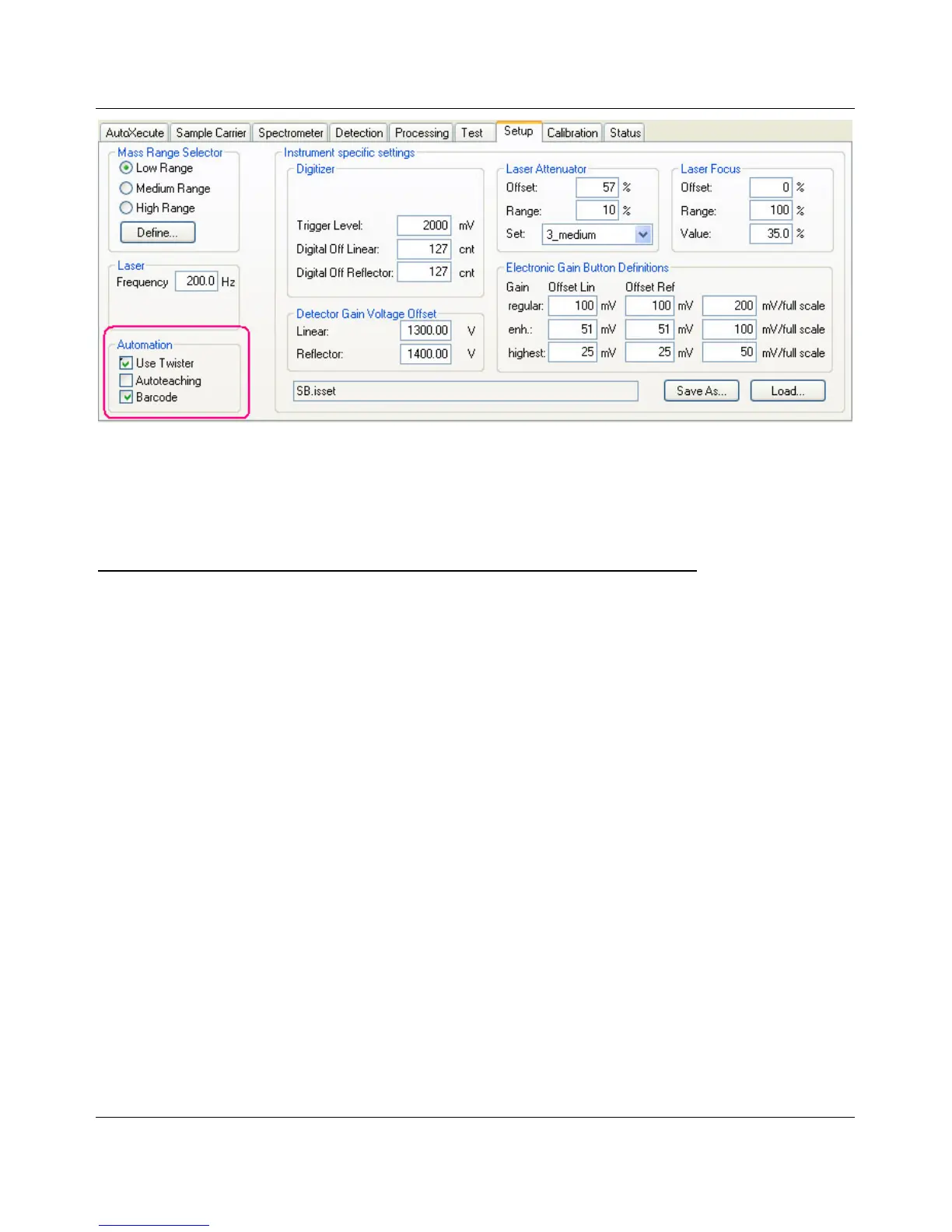

Figure 3-16 Features of the AutoXecute page in flexControl
To run the Twister in conjunction with the mass spectrometer select the checkbox “Use
Twister”. Select “Barcode”, if a barcode reader is mounted at the lid storage platform
for the labeled targets to identify.
Barcode Identification has precedence over transponder identification
.
Target plates without barcodes are identified by the IDs stored in their transponders.
3.5 Example of the Structure of a Bruker ID
The ID’s are normally the Bruker Transponder ID. This ID consists of
PartNumber.SerialNumber, e.g. 209515.240.
This code corresponds to a MTP AnchorChip 400/384 with the serial Number 240.
ultraflex III User Manual, Version 1.0 42
