The Post Lift Metastable Suppressor (PLMS) deflects (if switched on) the parent
together with those metastable fragments, which are formed after
LIFT (Figure 3-1,
Figure 3-8). It can be switched off to allow the detection of the parent, e.g., for
calibration purposes.
P
2
+
Target Reflector Reflector
plate detector
Linear detector
D
r
i
f
t
r
e
g
i
o
n
PLMS
P
1
+
PCIS
/ IS2
Ground
potential
P
1
+
P
1
+
Two stage field
ion lenses
Ion source
(PIE)
LIFT
IS2
Ground
potential
LIFT
IS1
IS1
IS1
IS1 /
Acceleration
potentials

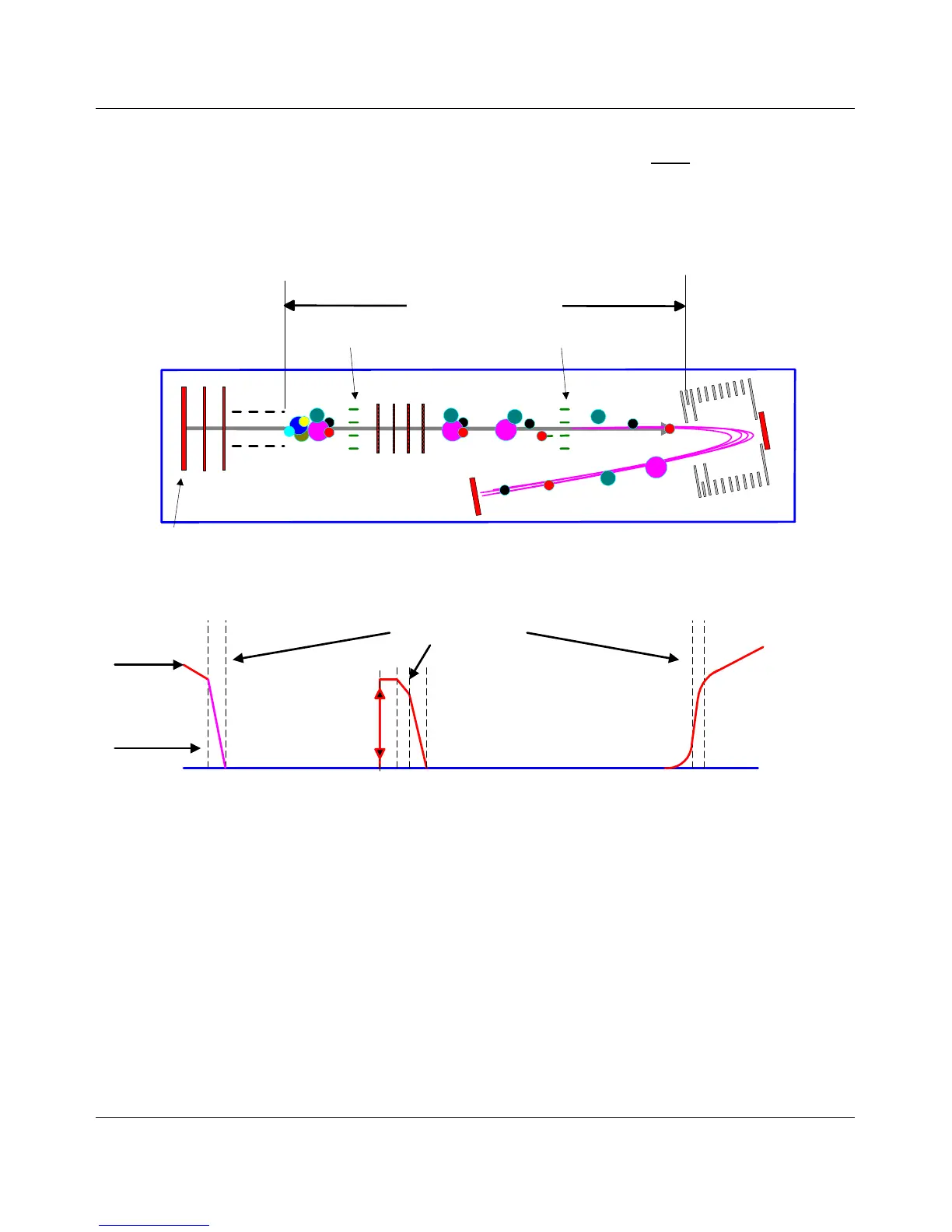

Figure 3-8 Working principle of the TOF/TOF analyzer
ultraflex III User Manual, Version 1.0 32
