Brute FT Series - Installation Procedures for the FT Series Boiler; Location and Clearance Requirements

The FT Series Heating Only, Boiler
Page 17
SECTION 4 Installation
NOTE: For Cascading Installations, please refer
to document 1349 ‘Cascading the FT Series
Boiler’, available online.

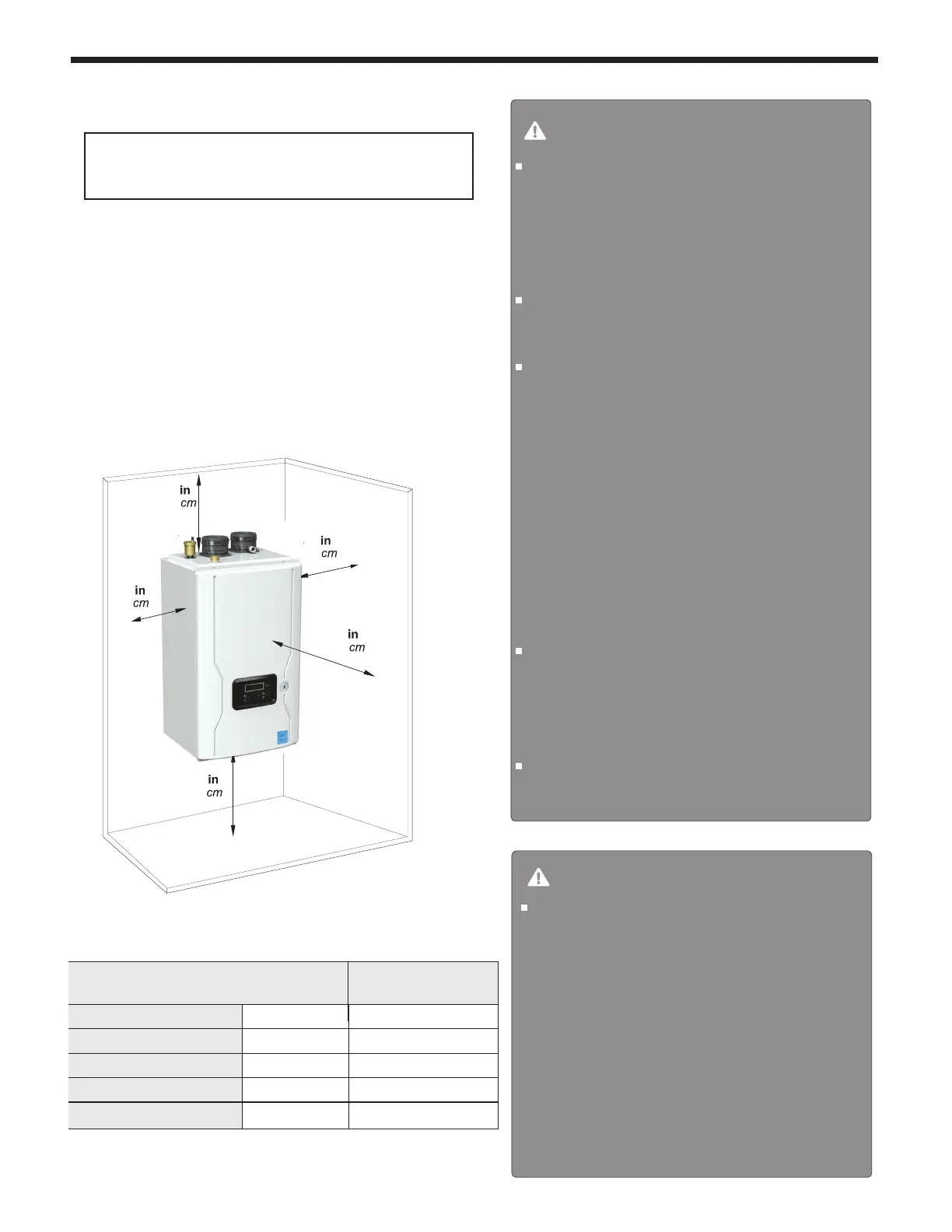

4.1 Location and Clearances
The FT must be mounted to a suitable wall by a
qualied heating contractor under the guidelines of a
boiler. The wall may be of concrete or wood. Suitable
fasteners for concrete or wood must be used. Failure to
wall mount this boiler using correct fasteners will a󰀨ect
the performance and life expectancy of the boiler and
will void the warranty.
9
23
3
8
3
8
24
60
12
30
Table 1. Minimum Clearances
Installations must comply with
• All the local, state, provincial, and national codes,
laws, regulations and ordinances.
• National Fuel Gas Code, ANSI Z223.1 – The latest
version.
• National Electrical Code.
• A National Standard of Canada CAN/CSA-B149.1
Check before placing the Boiler
• Always check the connected components which are
near to the heater. The components are below.
Water piping position / Venting adapter / Gas supply
piping / Electrical power / Condensate drain hose.
• Inspect area around Boiler. Remove any combustible
materials, gasoline and other ammable liquids.
Failure to keep Boiler area clear and free of
combustible materials, gasoline and other ammable
liquids and vapors can result in severe personal
injury, death or substantial property damage.
• The Boiler which has gas control system
components must be protected from any possible
danger during operation and service.
• If new Boiler replaces an existing appliance, check
and correct system problems, for example:
- Do not install if: System leaks causing oxygen
corrosion or heat exchanger cracks from hard water
deposits.
Provide clearances
• If the boiler was installed in a narrow space or
corner, please ensure that there is su󰀩cient
space for service and maintenance access. For
regular maintenance, gas and water lines must be
accessible.
The boiler must be installed on a wall that can bear it’s
weight.
WARNING
WARNING
CLEARANCES FOR SERVICE ACCESS
• If you do not provide the minimum clearances
shown, it might not be possible to service the
boiler without removing it from the space.
• Space must be provided with combustion /
ventilation air openings correctly sized for
all other appliances located in the same
space as the boiler. The boiler cover must be
securely fastened to prevent it from drawing
air from the boiler room. This is particularly
important if the boiler is in a room with other
appliances. Failure to comply with the above
warnings could result in substantial property
damage, severe personal injury, or death.
Minimum clearances to combustibles.
to Combustibles and for Service.
For installation from
Non-Combustibles and Combustibles
Suggested Service
Clearance
TOP of appliance 9 in (23 cm) 18 in (46 cm)
BACK of appliance 0 in (0 cm) 0 in (0 cm)
FRONT of appliance 24 in (60 cm) 40 in (101 cm)
SIDE of appliance 3 in (7 cm) 8 in (20 cm)
BOTTOM of appliance 12 in (30 cm) 24 in (61 cm)
