Document 4387

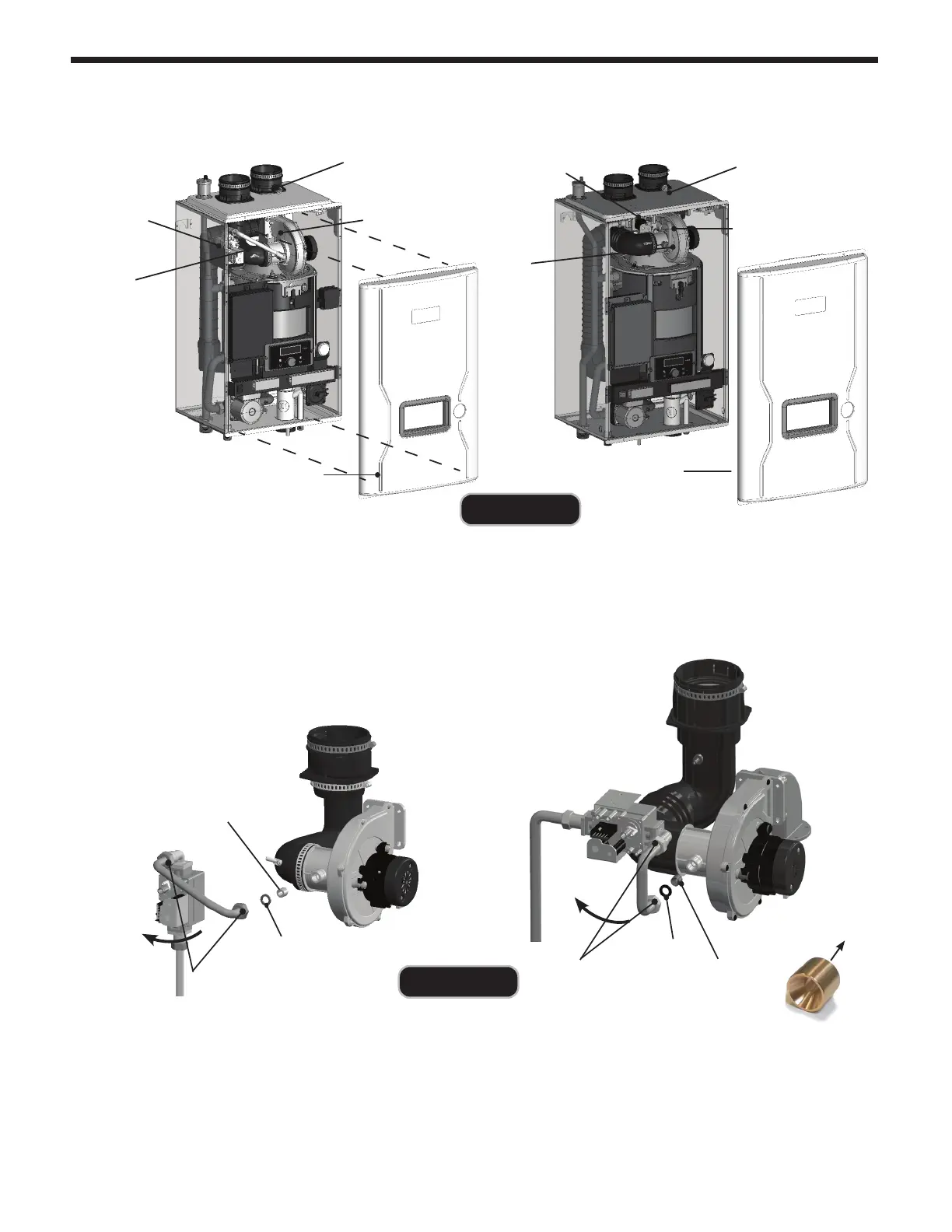

The FT Series, Heating Only, Gas Conversion Kit
pg 2 of 4
BLOWER
GAS
VALVE
GAS
VALVE
COMBUSTION
TEST PORT
COMBUSTION
TEST PORT
COVER
BLOWER
COVER
GAS
INLET PIPE
GAS
INLET PIPE
( FTHW 100 / 140 ) ( FTHW 199 )
( FTHW 100 / 140 ) ( FTHW
199 )
BRASS FITTINGS
ORIFICE
BRASS FITTINGS
PACKING
PACKING
ORIFICE
3.
Using a Phillips screwdriver, remove the 4 screws on the front cover. See Figure A.
4.
Locate the Gas Inlet Pipe at the top of the unit as is shown in Figure A, and loosen the Brass Fittings at both ends
of the Gas Inlet Pipe.
5.
Completely un-thread the Brass Fittings at the blower end of the Gas Inlet Pipe, and then carefully swing the Gas
Inlet Pipe to the left, just enough so that it is out of the way. See Figure B.
6.
Remove the existing Natural Gas Ori ce. Save the Packing for re-use. It is also advised to
save the ori ce just in
case the unit needs to be converted back to natural gas at any time in the future.
7.
Replace the old Ori ce with the new one for LP (propane). Re-use the Packing from previous.
8.
Return the Gas Inlet Pipe to its original position and tighten both of the Brass Fittings.
Figure B
Flat Side
Inward
