Bryant CHS072 - Page 4

4 506 01 2303 01
Specifications are subject to change without notice.
UNIT
Standard
Weight
Corner
A
Corner
B
Corner
C
Corner
D
Center of Gravity Unit Height
CHS072
444 201 134 61 97 44 90 41 123 56
22
[559]
25
[635]
13
[330]
42-3/8
[1076]
CHS091
483 219 162 74 110 50 85 39 125 57
20
[508]
24
[610]
21
[533]
42-3/8
[1076]
CHS121
575 261 186 84 126 57 106 48 157 71
21
[533]
24
[610]
23
[584]
50-3/8
[1280]
lbs. kg. lbs. kg. lbs. kg. lbs. kg. lbs. kg. X Y Z H
C150355

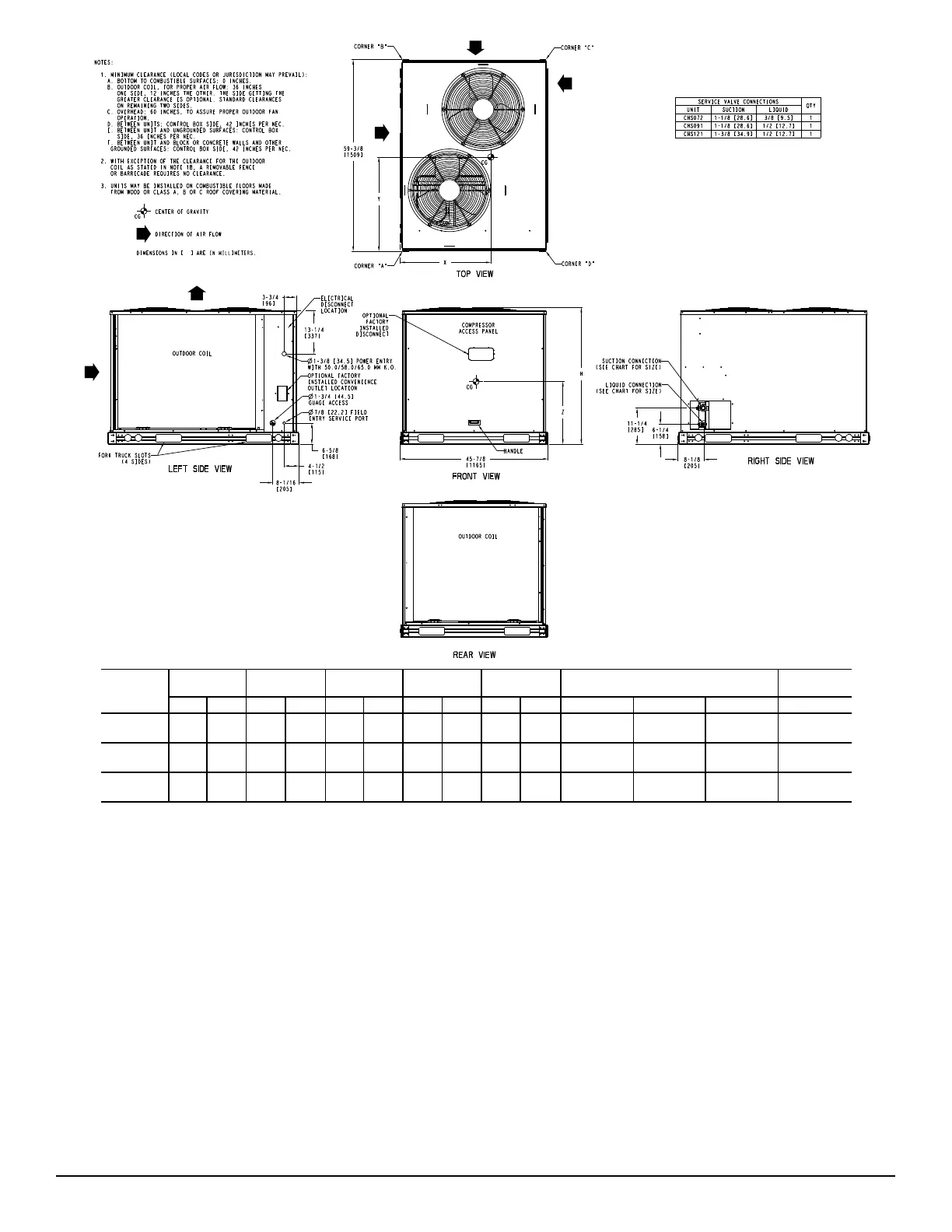

Fig. 1 -- CHS072--121 Unit Dimensions
