PERSONAL INJURY AND UNIT DAMAGE
HAZARD
Failure to follow this caution may result in personal
injury or equipment damage.
Only approved c leaning is recommended.
CAUTION
!
Routine Cleaning of Indoor Coil Surfaces —
Periodic clea ning with envi ronmenta lly sound coil c leane r
is essential to extend the life of coils. This cleaner is
available from FAST Parts. It is recommended that all
coils, including standard aluminum, pre-coated or
E-coa ted coils be cleaned with the environmentally sound
coil c leaner as described below. Coil cleaning should be
part of the unit’s regularly scheduled maintenance
procedures to ensure long life of the coil. Failure to clean
the coils may result in reduced durability in the
environment.
Avoid the use of:
S coil brighteners
S acid cleaning prior to painting
S high pressure washers
S poor quality water for cleaning
Environmental ly sound coil cleaner is nonflammable,
hypoallergenic, non bacterial, and a USDA accepted
biodegradable agent that will not harm the coil or
surrounding components such as electrical wiring, painted
metal surfaces, or insulation. Use of non-recommended
coil cleane rs is strongly discouraged since coil and unit
durability could be affected.
Environmentally Sound Coil Cleaner Application
Equipment:
S 2
1
/
2
gallon garden sprayer
S Water rinse with low velocity spray nozzle
UNIT DAMAGE HAZARD
Failure to follow this caution may result in corrosion
and damage to the unit .
Harsh chemicals, household bleach or acid or basic
cle aners should not be used to clean outdoor or indoor
coils of any kind. These cleaners can be very difficult
to rinse out of the coil and can accelerate corrosion at
the fin/tube interface where dissimilar materials are in
contact. If there is dirt below the surface ot the coil,
use the environme ntall y sound coil cleaner as
described above.
CAUTION
!
UNIT RELIABILTY HAZARD
Failure to follow this caution may result in reduced
unit performance .
High velocity water from a pressure washer, garden
hose, or c ompressed air should never be used to clean
a coil. The force of the water or air jet will bend t he
fin edges and increase airside pressure drop.
CAUTION
!
Environmentally Sound Coil Cleaner Application
Instructions:
NOTE: Proper eye protection such as safety glasses is
recommended during mixing and application.
1. Turn off unit power.
2. Remove screws holding rear corner post and top cover
in place. P ivo t top cover up 12 to 18 inches (305 to 45 7
mm) and support with a rigid support. See Fig. 37.
C10216

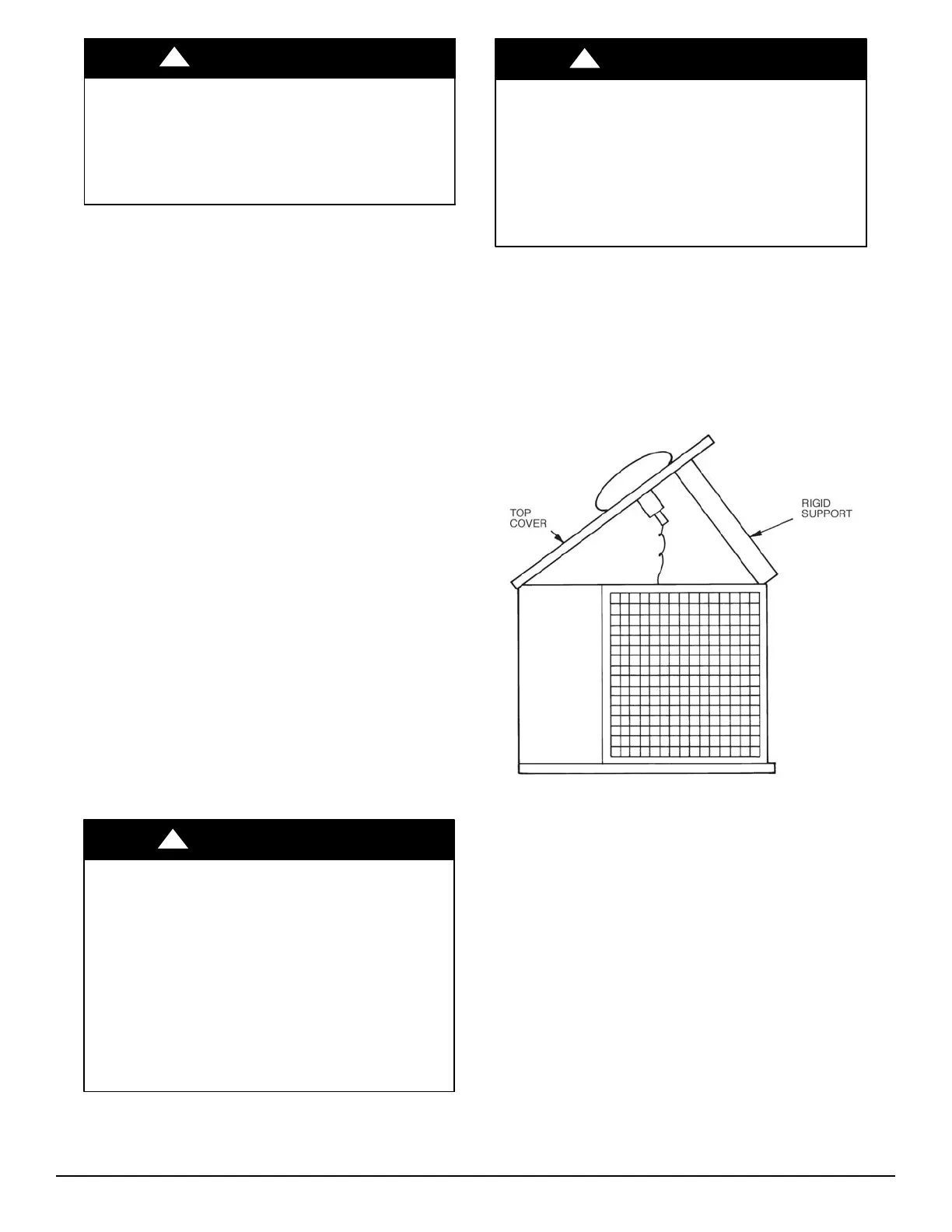

Fig. 37 -- Pivot and Support Top Cover
3. Remove all surface loaded fibers and dirt with a vacu-
um cleaner. If a vacuum cleaner is not available, a
soft non-metallic bristle brush may be used. In either
case, the tool should be applied in the dire ction of the
fins. Coil surfaces can be easily damaged (fin edges
can be easily bent over and damage to the coating of
a protected coil) if the tool is applied across the fins.
NOTE: Use of a water stream, such as a garden hose,
against surface loaded coil will drive the fibers and dirt
into the coil, making cleaning efforts more difficult.
Surface loaded fibers must be completely removed prior
to using low velocity clean water rinse.
4. Using a low velocity garde n hose thoroughl y wet
finned surfaces with clean water. Be careful not to
bend the fins.
