ekr 500 digital Unit Touch – Application with Wide Array Edge Sensors 13/39

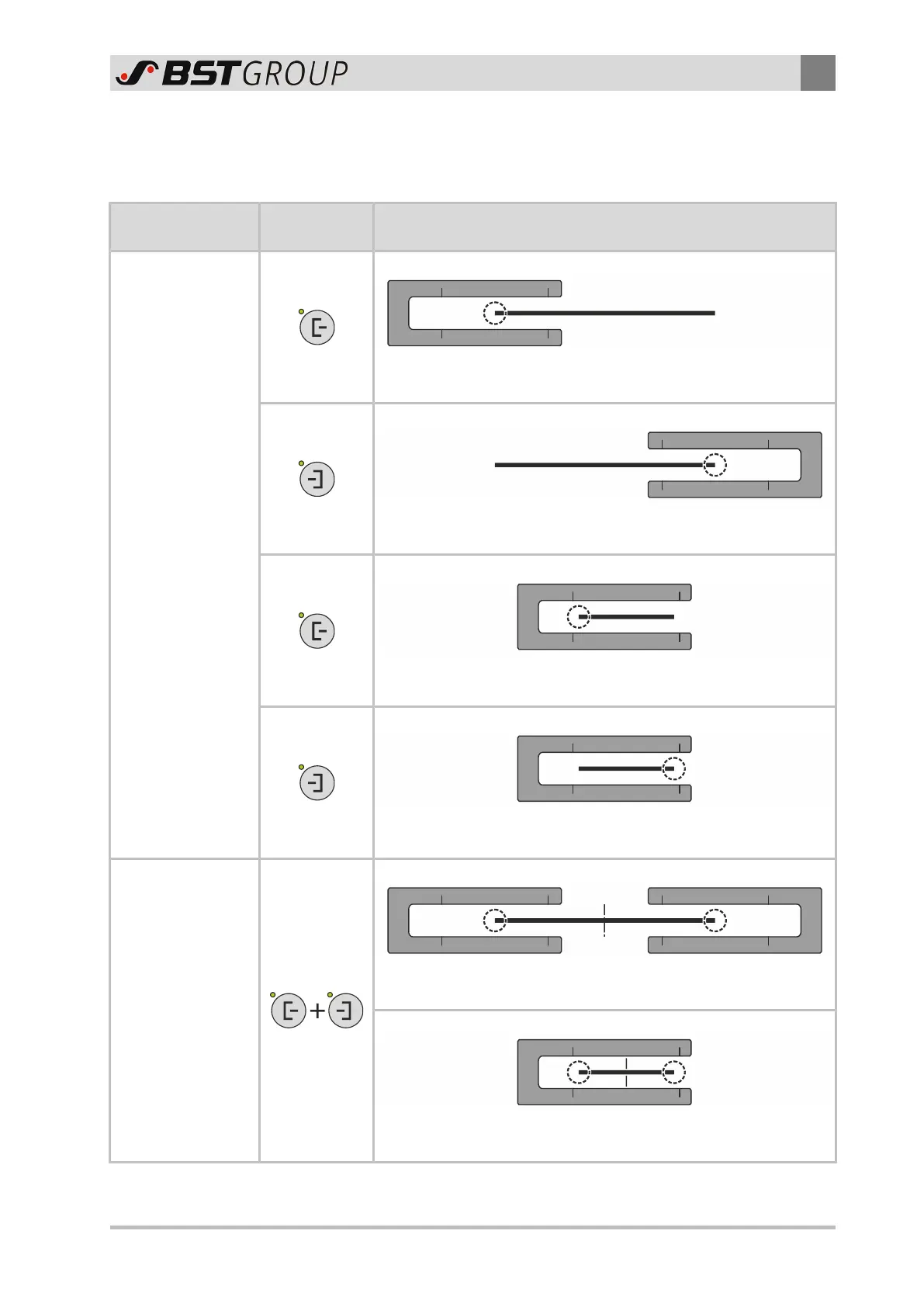

3.4 Guiding Modes

Combined with one or two wide array edge sensors, the ekr 500

digital Unit Touch controller permits the following guiding modes:

Guiding mode Key on the

controller

Basic principle

Web edge guiding

Guiding to the left web edge

Guiding to the right web edge

Guiding to the left web edge

Guiding to the right web edge

Web center-line

guiding

Web center-line guiding with two wide array edge sensors

Web center-line guiding with one wide array edge sensor
