Electrical Connection

ekr 500 digital Unit Touch – Application with Wide Array Edge Sensors 25/39

7.3 Checking Correct Connection

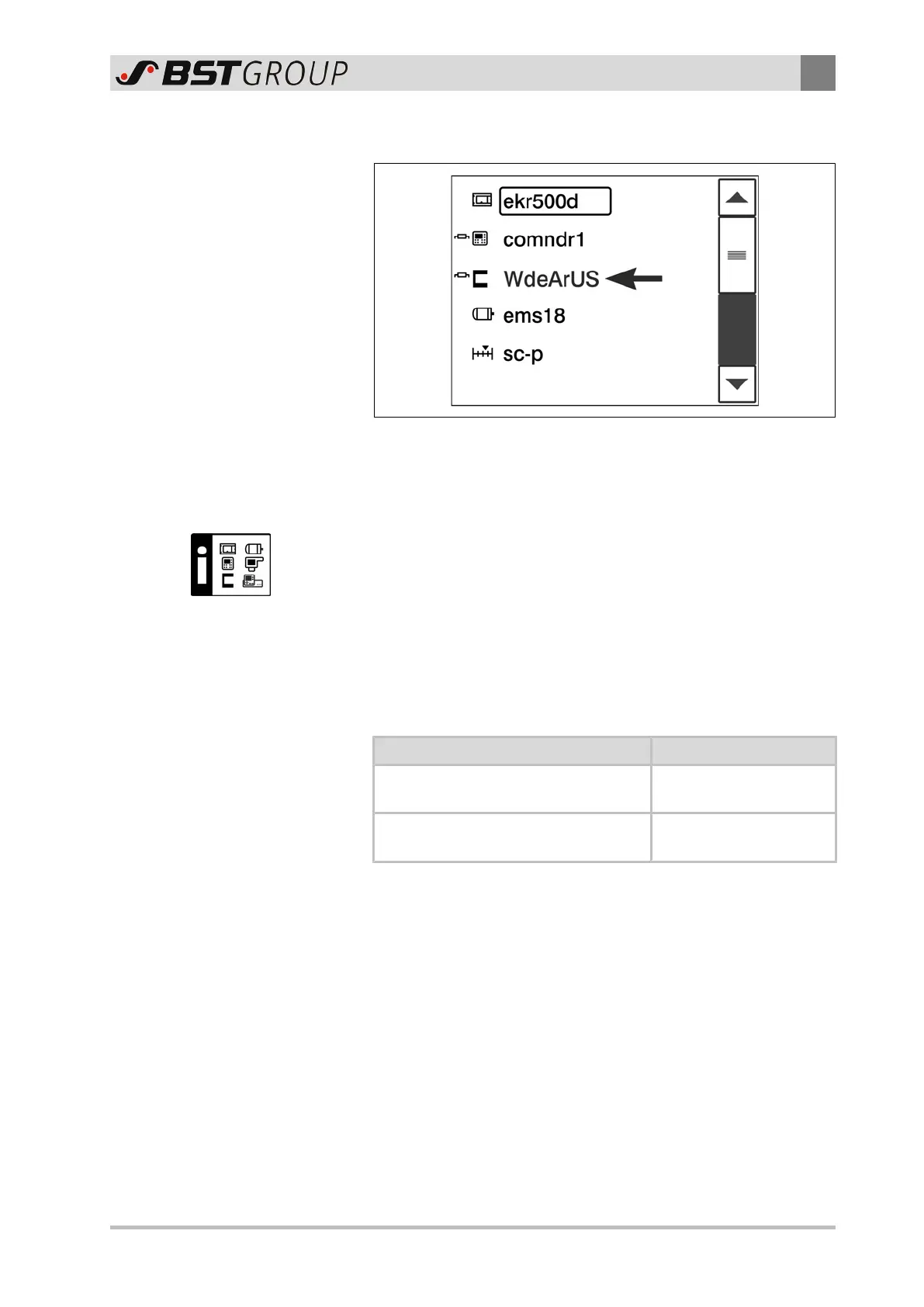

Fig.10: System Components service display with connected ultrasonic wide array

edge sensor

In order to check, whether a connected wide array edge sensor is

recognized correctly by the controller, proceed as follows:

1. Activate the System Components service display in the control-

ler’s setup menu (procedure see operating manual ekr 500

digital Unit Touch, document number MD.492).

The system components connected are shown in the display.

2. Check the entries for the connected sensors.

If a wide array edge sensor is correctly connected to the control-

ler, one of the following texts must be displayed behind the

sensor symbol (Sensor1, Sensor2) depending on the sensor type:

Sensor type Text displayed

Ultrasonic wide array edge sensor

USSEN300…309

WdeArUS

Infrared wide array edge sensor

IRSEN400…409

WdeArIR
