Technical Specifications

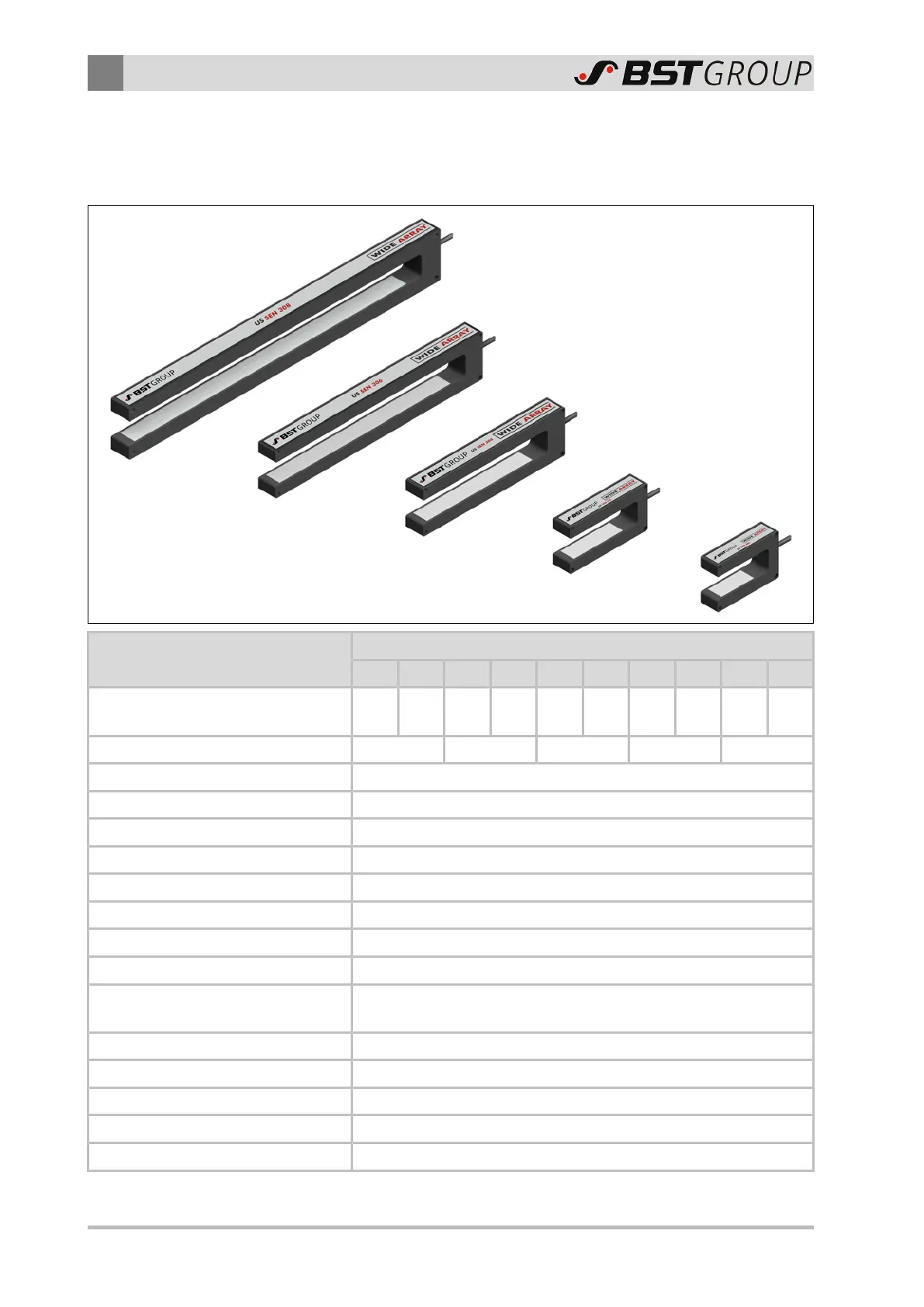

14/39 ekr 500 digital Unit Touch – Application with Wide Array Edge Sensors
4 Technical Specifications
4.1 Ultrasonic Wide Array Edge Sensors US SEN 300 ... 309
USSEN…
300 301 302 303 304 305 306* 307 308* 309
Fork width
38
mm
101
mm
38
mm
101
mm
38
mm
101
mm
38
mm
101
mm
38
mm
101
mm
Measuring range 30mm 60mm 162mm 284mm 467mm
Min. web width 11mm
Linearity ≤ 0.3%
Supply voltage From the controller (24V⎓ ±10%)
Ultrasonic frequency 208kHz
Output signal BST CAN bus
Polarity reversal protection (supply) yes
Operation display LED (bicolour)
Electrical connection M8 plug, 4-pin (at the connection box)
Ambient temperature
during operation
0 to +75°C
Storage temperature 0 to +75°C
Protection category IP40
Noise emission <70dB
Housing dimensions See dimensional drawing
RoHS conformity yes
* in preparation
