BST ekr 500 digital Unit Touch Installation And Operating Manual

Technical Specifications
4
ekr 500 digital Unit Touch – Application with Wide Array Edge Sensors 15/39
Dimensions [mm]
= Fixing dimensions
Measuring range M
Center of measuring range
600 mm cable
(connection to the
connection box)
Operating range

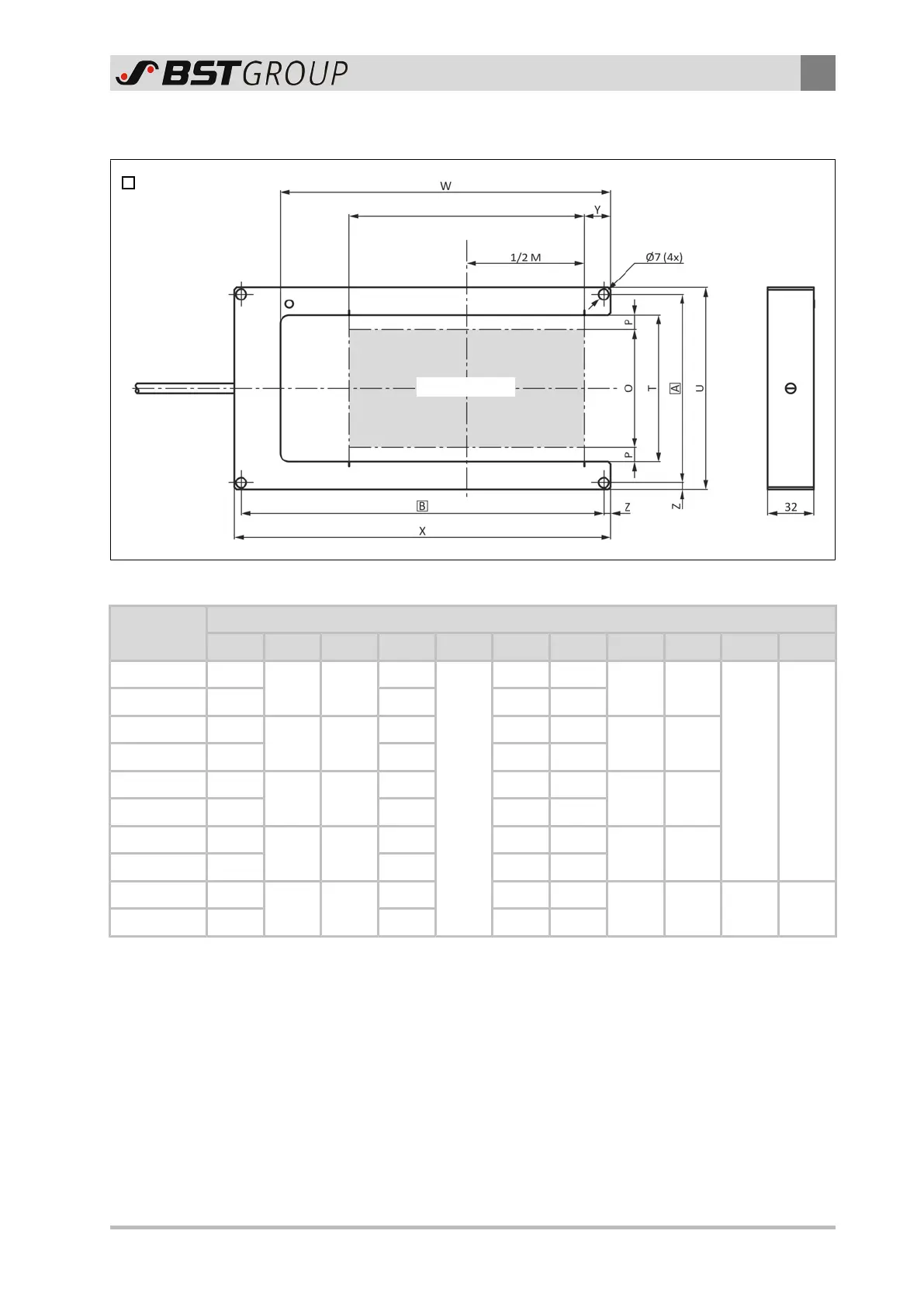

Fig.4: Dimensions of the ultrasonic wide array edge sensors US SEN 300 ... 309
Sensor Dimension
A B M O P T U W X Y Z
USSEN300 67
106 30
18
10
38 77
95 116
18 5
USSEN301 130 81 101 140
USSEN302 67
136 60
18 38 77
127 146
USSEN303 130 81 101 140
USSEN304 67
251 162
18 38 77
228 261
USSEN305 130 81 101 140
USSEN306* 67
373 284
18 38 77
355 383
USSEN307 130 81 101 140
USSEN308* 67
556 467
18 38 83
533 572 21 8
USSEN309 130 81 101 146
* in preparation

BST ekr 500 digital Unit Touch Specifications

General

Brand	BST
Model	ekr 500 digital Unit Touch
Category	Controller
Language	English
