Operation
9
ekr 500 digital Unit Touch – Application with Wide Array Edge Sensors 31/39
9.2.3 Examples for the Display of the Edge Positions

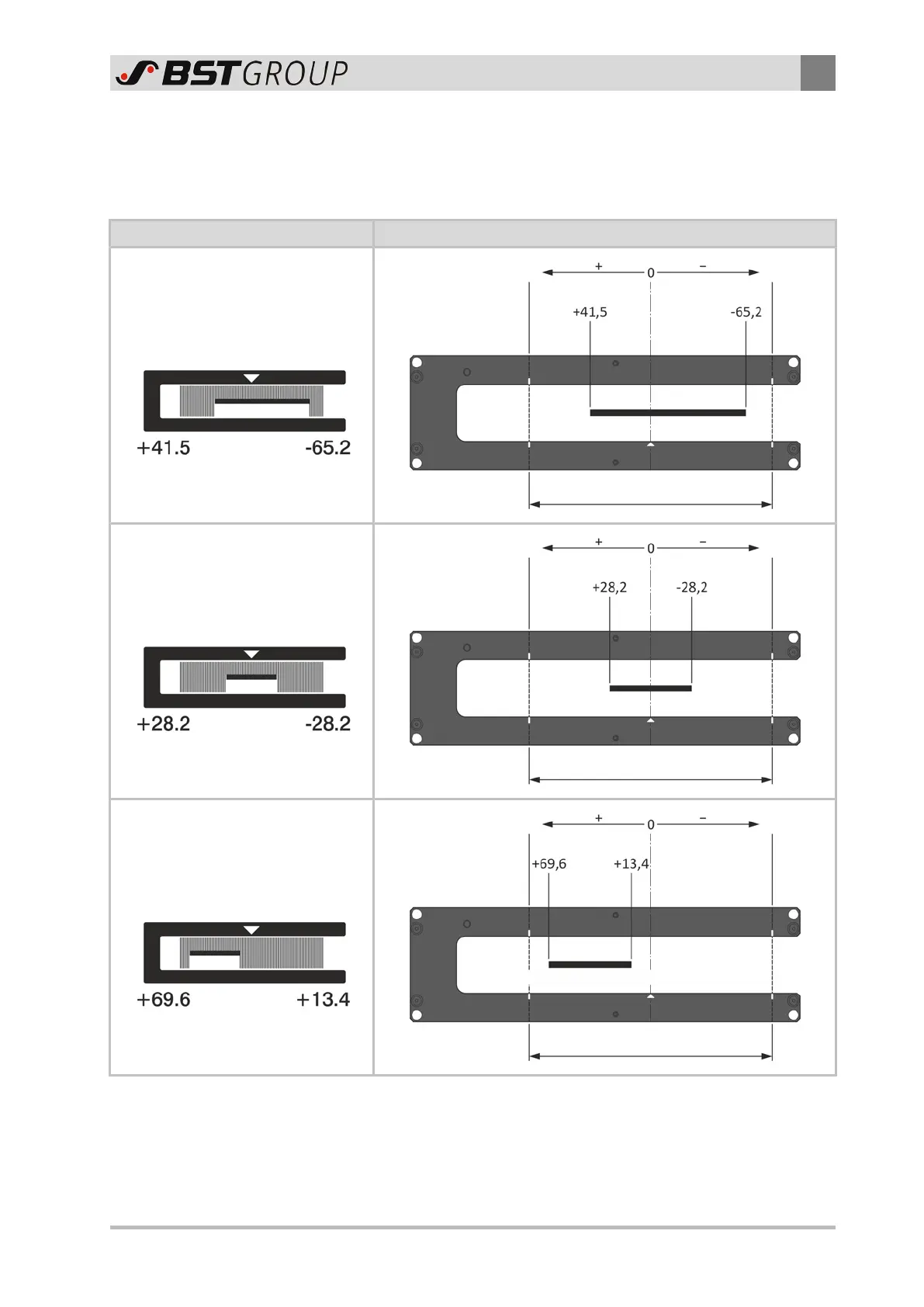

The following examples show the connection between the screen
display on the controller and the position of the web of material
within the measuring range of the wide array edge sensor.
Screen display Position of the web edges within the sensor measuring range
+81 -81
Edge 1 Edge 2
Measuring range (e.g. 162 mm)
+81 -81
Edge 1 Edge 2
Measuring range (e.g. 162 mm)
+81 -81
Edge 1 Edge 2
Measuring range (e.g. 162 mm)
