Logamatic SC40 - Technical specifications are subject to change without prior notice.
29
Installation (for engineers only)
4

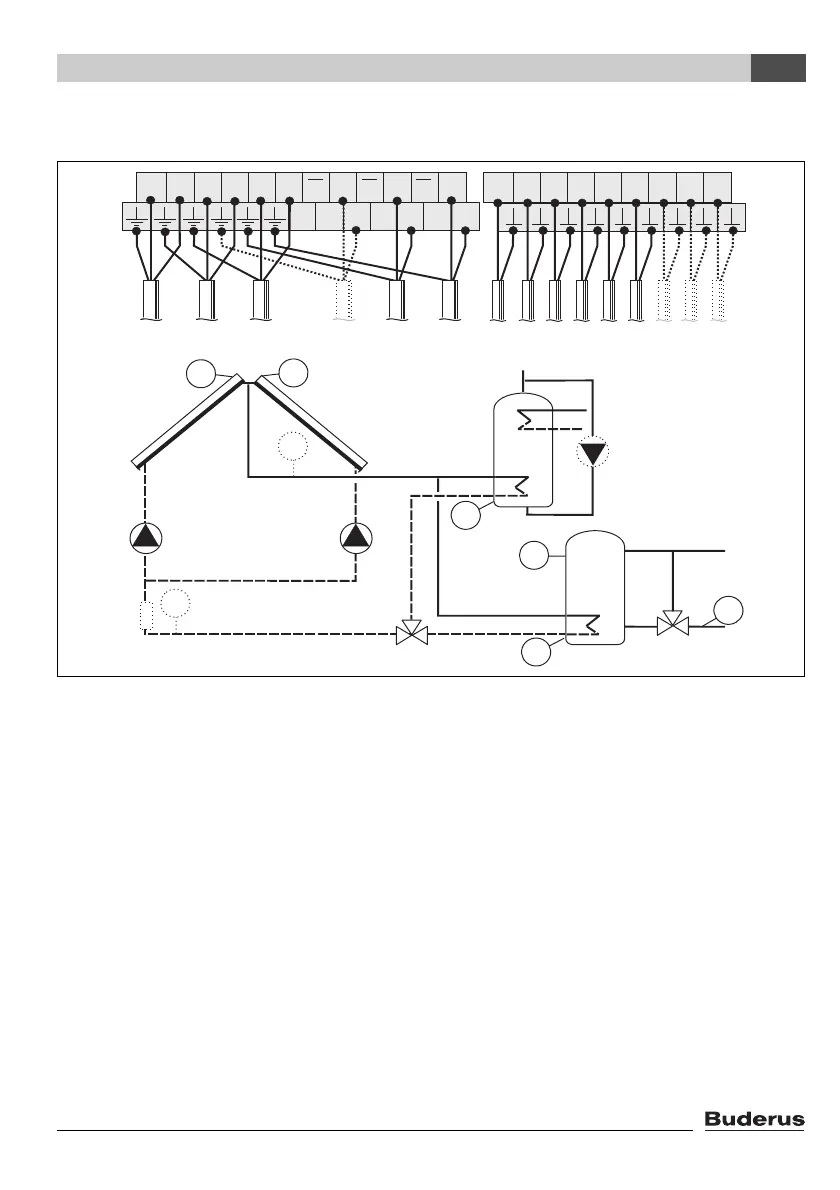

4.4.17 Configuration diagram H7 - heating boost system with East/West aspect func-
tion and 2 cylinders connected via valve
Fig. 23
R1 Solar circuit pump 1
R2 Solar circuit pump 2
R3 Daily heating pump (optional)
R4 Cylinder selection valve
R5 Return flow boost valve
S1 Collector temperature sensor FSK, field 1
S2 Cylinder 1 bottom temperature sensor
S3 Heating return temperature sensor
S4 Cylinder 2 bottom temperature sensor
S5 Collector temperature sensor FSK, field 2
S6 Cylinder 2 top temperature sensor
S7 Flow heat meter WMZ temperature sensor (optional)
S8 Return heat meter temperature sensor (optional)
WMZ Heat meter (optional)
WMZ
5
R1
S2
S3
S6
S8
S7
R5
R4
S4
R2
S1
S5
R3
7747006072-16.1 SD
S1 S2 S3 S4 S5 S6 S7 S8 I9
L N R1N1R2N2R3R3R4R4R5R5
L3 N3 L4 N4 L5 N5
230V
AC
R4
R3
R5R2R1
S1 S2 S3 S4 S5 S6 S7 S8
WMZ
