Logamatic SC40 - Technical specifications are subject to change without prior notice.
11
Installation (for engineers only)
4
4.3 Fitting a heat meter (optional)
The heat meter gives an approximation of the heat gained from the solar panels.
Included in delivery:
– Item 1: water meter connections, ¾" inc. seals
(2 off)
– Item 2: temperature sensor NTC 10K inc. fix-
ings (2 off)
– Item 3: volumetric flow meter (1 off)

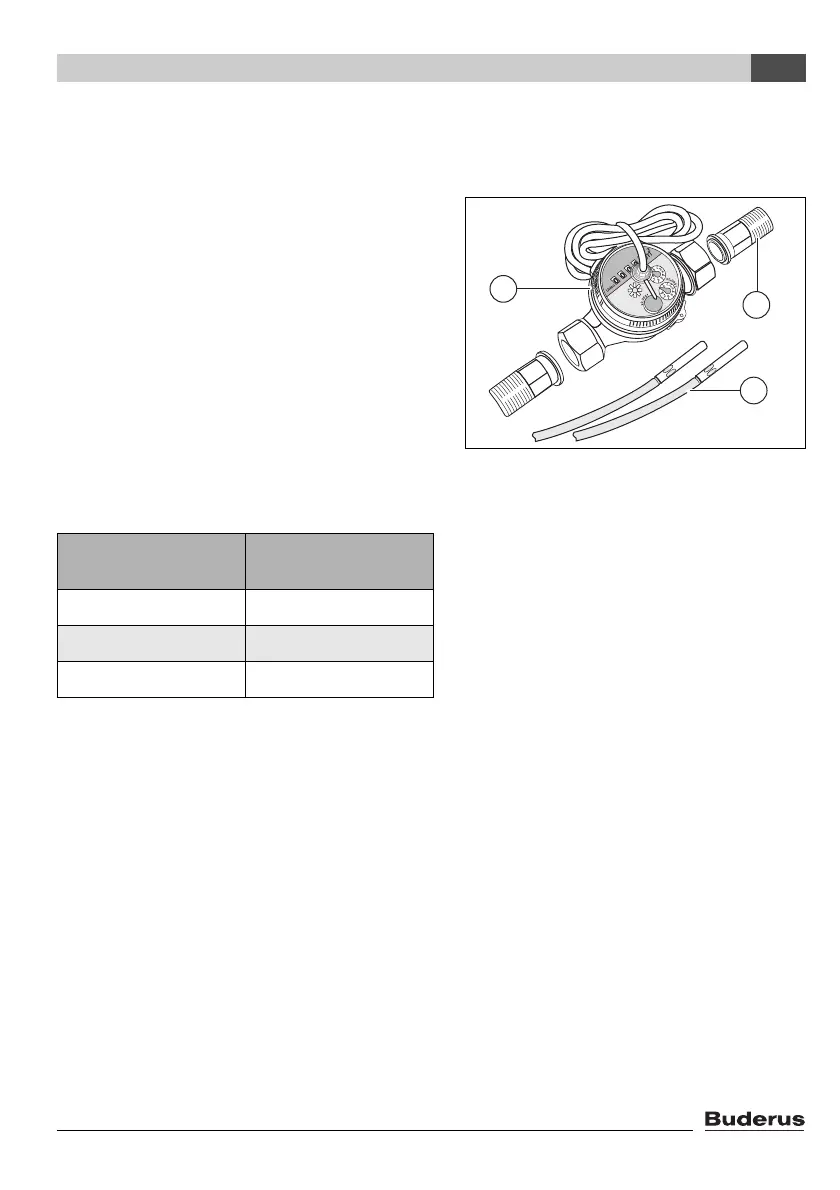

Fig. 6 Heat meter
Tab. 4
Number of collectors
Rated volumetric
flow rate
1 - 5 0.6 m³/h
6 - 10 1.0 m³/h
11 - 15 1.5 m³/h
Tab. 5 Rated volumetric flow rate
7747006072-33.1 SD
3
1
2
