Buderus Logamatic SC40 Installation And Servicing Instructions

Logamatic SC40 - Technical specifications are subject to change without prior notice.
37
Installation (for engineers only)
4

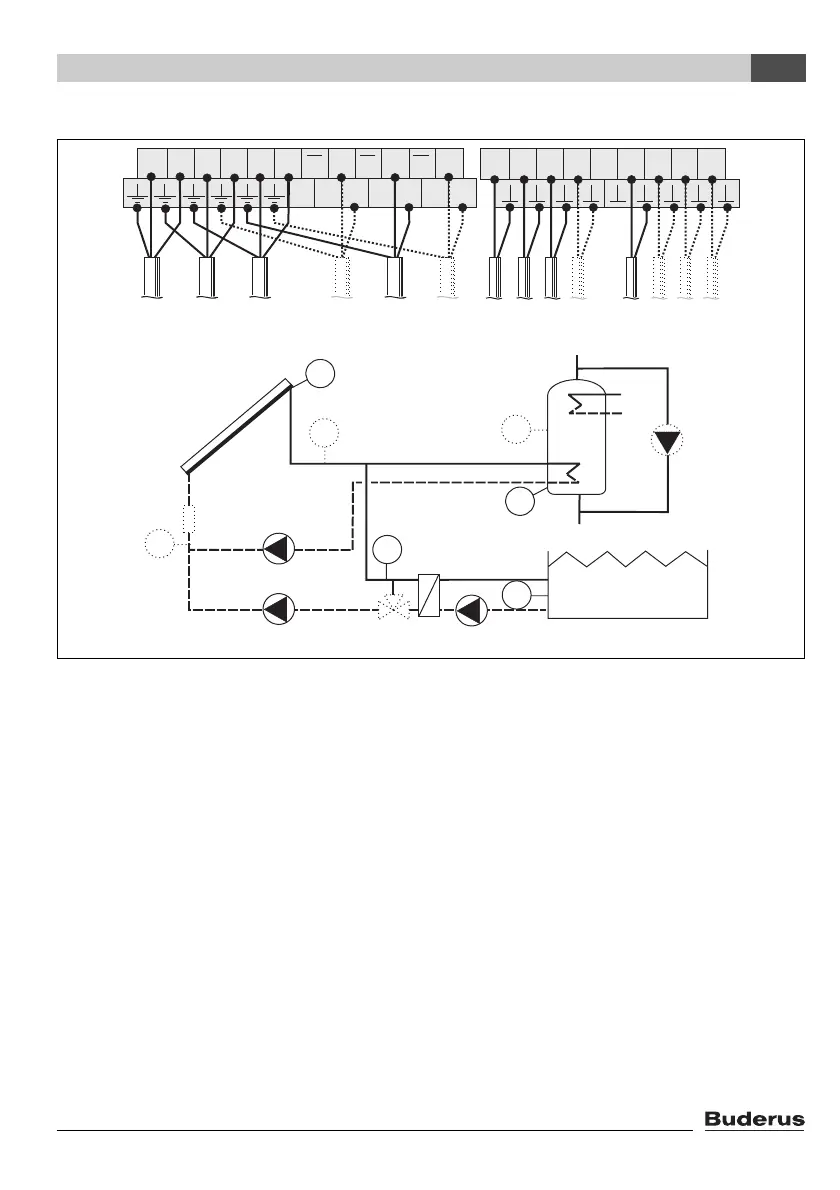

4.4.25 Configuration diagram S2 - swimming pool connected via second pump
Fig. 31
R1 Solar circuit pump 1
R2 Heat exchanger pump
R3 Daily heating pump (optional)
R4 Solar circuit pump 2
R5 Anti-icing system valve (optional)
S1 Collector temperature sensor FSK
S2 Cylinder bottom temperature sensor
S3 Swimming pool temperature sensor
S4 Cylinder centre temperature sensor (optional)
S6 Temperature sensor for external heat exchanger
S7 Flow heat meter WMZ temperature sensor (optional)
S8 Return heat meter temperature sensor (optional)
WMZ Heat meter (optional)
S3
R4
S2
S6
S7
S1
R1
R2
R5
7747006072-31.1 SD
R3
S4
WMZ
S8
S1 S2 S3 S4 S5 S6 S7 S8 I9
L NR1N1R2N2R3R3R4R4R5R5
L3 N3 L4 N4 L5 N5
230V
AC
R4
R3
R5R2R1
S1 S2 S3 S4 S6 S7 S8
WMZ
