Buderus Logamatic SC40 Installation And Servicing Instructions

Installation (for engineers only)
Logamatic SC40 - Technical specifications are subject to change without prior notice.
38
4

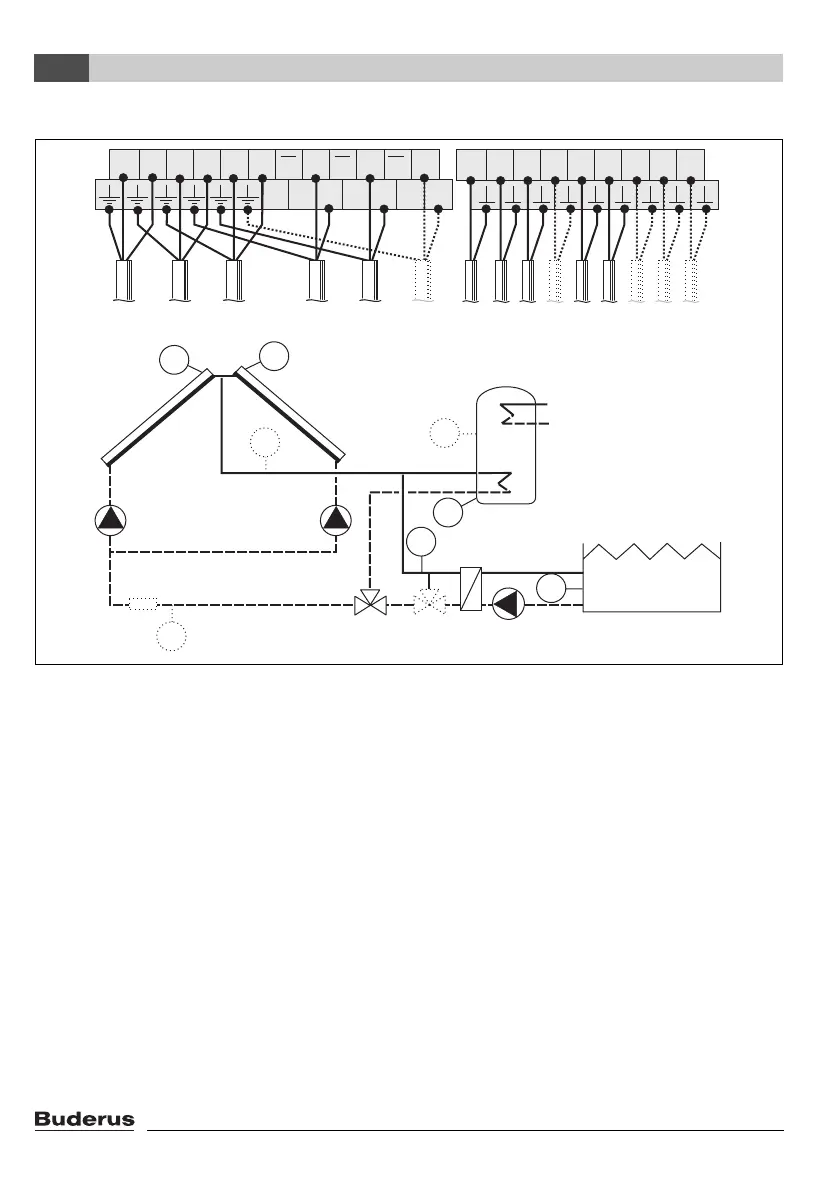

4.4.26 Configuration diagram S3 - swimming pool with East/West aspect function
Fig. 32
R1 Solar circuit pump 1
R2 Heat exchanger pump
R3 Solar circuit pump 2
R4 Cylinder selection valve
R5 Anti-icing system valve (optional)
S1 Collector temperature sensor FSK, field 1
S2 Cylinder bottom temperature sensor
S3 Swimming pool temperature sensor
S4 Cylinder centre temperature sensor (optional)
S5 Collector temperature sensor FSK, field 2
S6 Temperature sensor for external heat exchanger
S7 Flow heat meter WMZ temperature sensor (optional)
S8 Return heat meter temperature sensor (optional)
WMZ Heat meter (optional)
WMZ
5
R1
S2
S3
S8
S7
R5
S1
R4
R2
S6
S4
R3
S5
7747006072-32.1 SD
S1 S2 S3 S4 S5 S6 S7 S8 I9
L N R1N1R2N2R3R3R4R4R5R5
L3 N3 L4 N4 L5 N5
230V
AC
R4
R3
R5R2R1
S1 S2 S3 S4 S5 S6 S7 S8
WMZ
