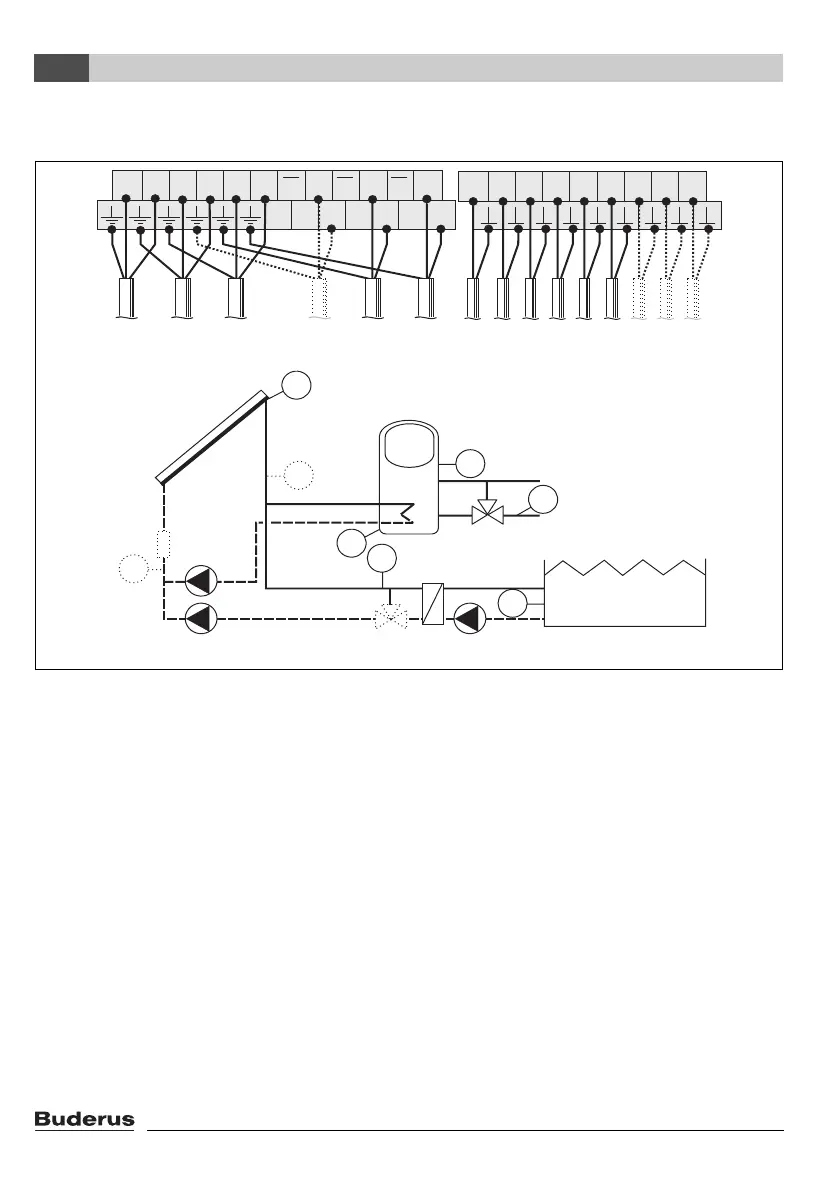

4.4.28 Configuration diagram S5 - swimming pool and heating boost system connected
via second pump
Fig. 34
R1 Solar circuit pump 1
R2 Heat exchanger pump
R3 Anti-icing system valve (optional)
R4 Solar circuit pump 2
R5 Return flow boost valve
S1 Collector temperature sensor FSK
S2 Cylinder bottom temperature sensor
S3 Heating return temperature sensor
S4 Temperature sensor for external heat exchanger
S5 Swimming pool temperature sensor
S6 Cylinder centre temperature sensor
S7 Flow heat meter WMZ temperature sensor (optional)
S8 Return heat meter temperature sensor (optional)
WMZ Heat meter (optional)
5
R4
S2
S5
S7
R3
S1
R2
S4
S6
S3
R5
R1
7747006072-22.1 SD
WMZ
S8
S1 S2 S3 S4 S5 S6 S7 S8 I9
L NR1N1R2N2R3R3R4R4R5R5
L3 N3 L4 N4 L5 N5
230V
AC
R4
R3
R5R2R1
S1 S2 S3 S4 S5 S6 S7 S8
WMZ
