Buderus Logamatic SC40 Installation And Servicing Instructions

Logamatic SC40 - Technical specifications are subject to change without prior notice.
41
Installation (for engineers only)
4

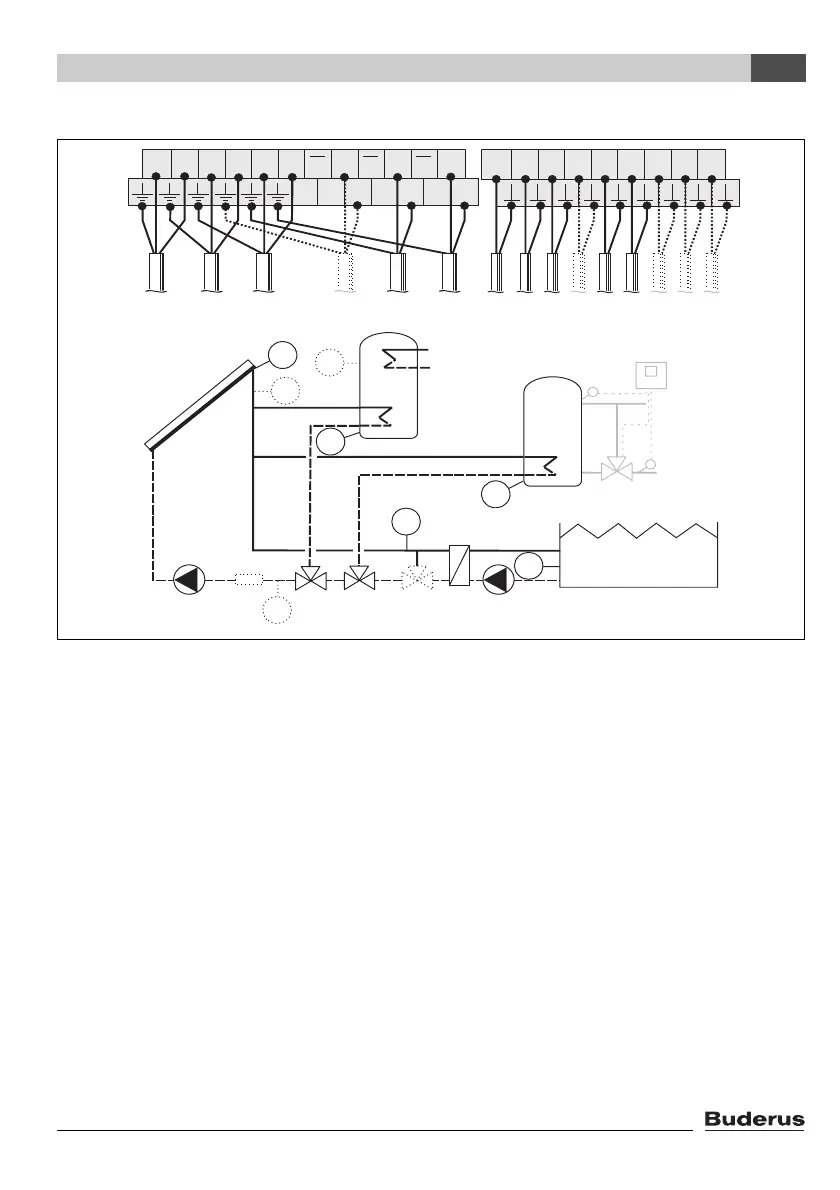

4.4.29 Configuration diagram S6 - swimming pool with two cylinders
Fig. 35
R1 Solar system pump
R2 Heat exchanger pump
R3 Anti-icing system valve (optional)
R4 Cylinder selection valve 1
R5 Cylinder selection valve 2
S1 Collector temperature sensor FSK
S2 Cylinder 1 bottom temperature sensor
S3 Cylinder 2 bottom temperature sensor
S4 Cylinder 1 top temperature sensor (optional)
S5 Swimming pool temperature sensor
S6 Temperature sensor for external heat exchanger
S7 Flow heat meter WMZ temperature sensor (optional)
S8 Return heat meter temperature sensor (optional)
WMZ Heat meter (optional)
WMZ
5
R1
S3
S5
S8
S7
R5
S1
R4
R2
S6
S4
R3
7747006072-28.1 SD
S2
S1 S2 S3 S4 S5 S6 S7 S8 I9
L NR1N1R2N2R3R3R4R4R5R5
L3 N3 L4 N4 L5 N5
230V
AC
R4
R3
R5R2R1
S1 S2 S3 S4 S5 S6 S7 S8
WMZ
