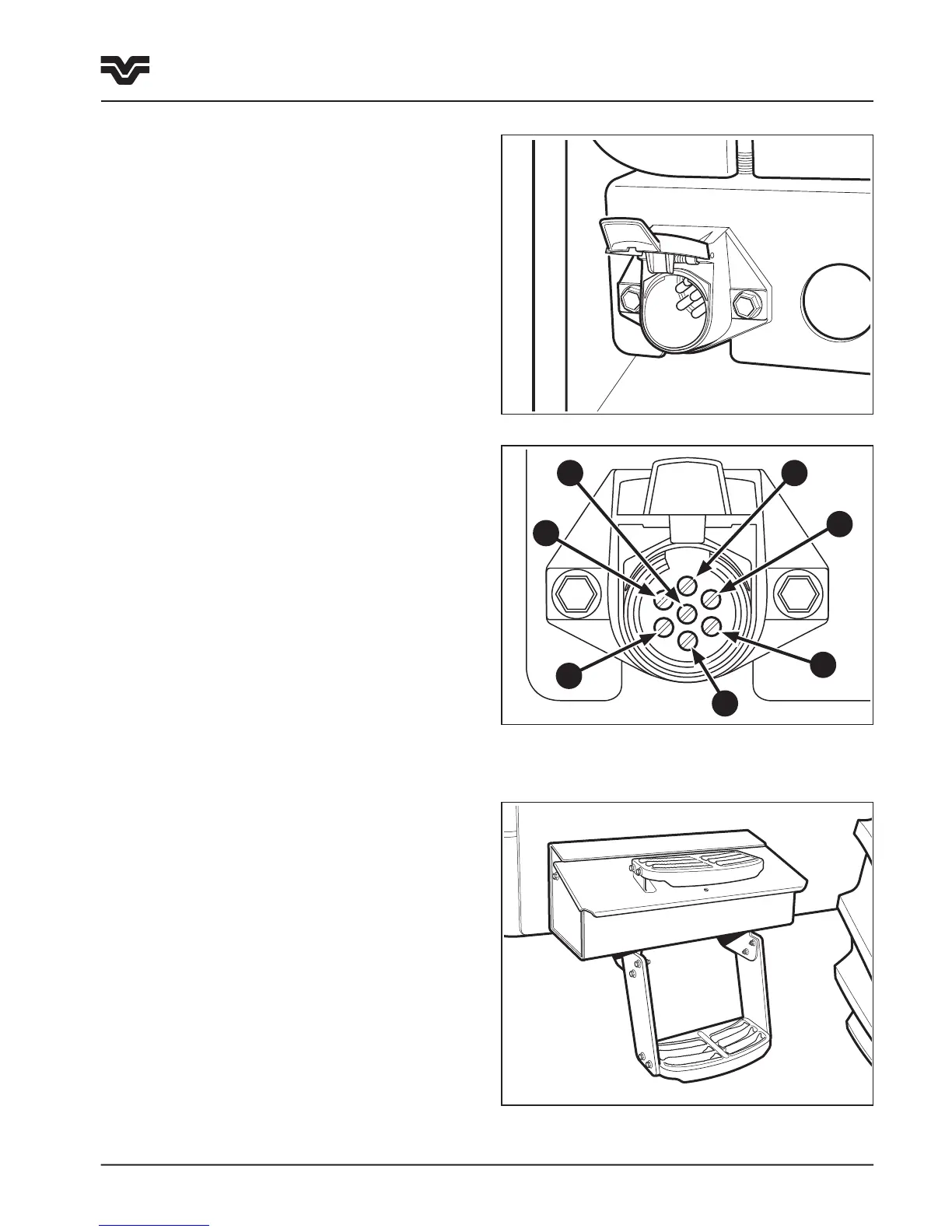

Trailer Socket
The trailer socket is attached to the hydraulic remote
coupler bracket at the rear of the tractor.
It is a seven-pin connector that can be used for a
trailer light hookup or as an outlet to attach an optional
implement status switch.
The pins in the socket are identified as follows:
Pin 1 - Ground
Pin 2 - Work lamps
Pin 3 - Left flasher
Pin 4 - Stop lamps
Pin 5 - Right flasher
Pin 6 - Tail lamps
Pin 7 - Auxiliary (key switched 12 volt source protected
by a 20 amp fuse)
There is a male connector available through your
Buhler Versatile dealer, (BVI p/n: 59624), that can be
purchased to accommodate trailer wire harnesses.
Toolbox/storage tray
A toolbox/storage tray is located on the left front frame
of the tractor. The toolbox lid will accommodate a
lock.
1
2
3
4
5
6
7
Section 3 - Operation
External lighting
