Buhler 435 - Lubricate the Front Steering Cylinder Pins; Lubricate the Rear Steering Cylinder Pins; Lubricate the Upper Articulation Pins

4-16
435/485/535
Section 4 - Lubrication & Maintenance
Every 10 Hours
Operation 12

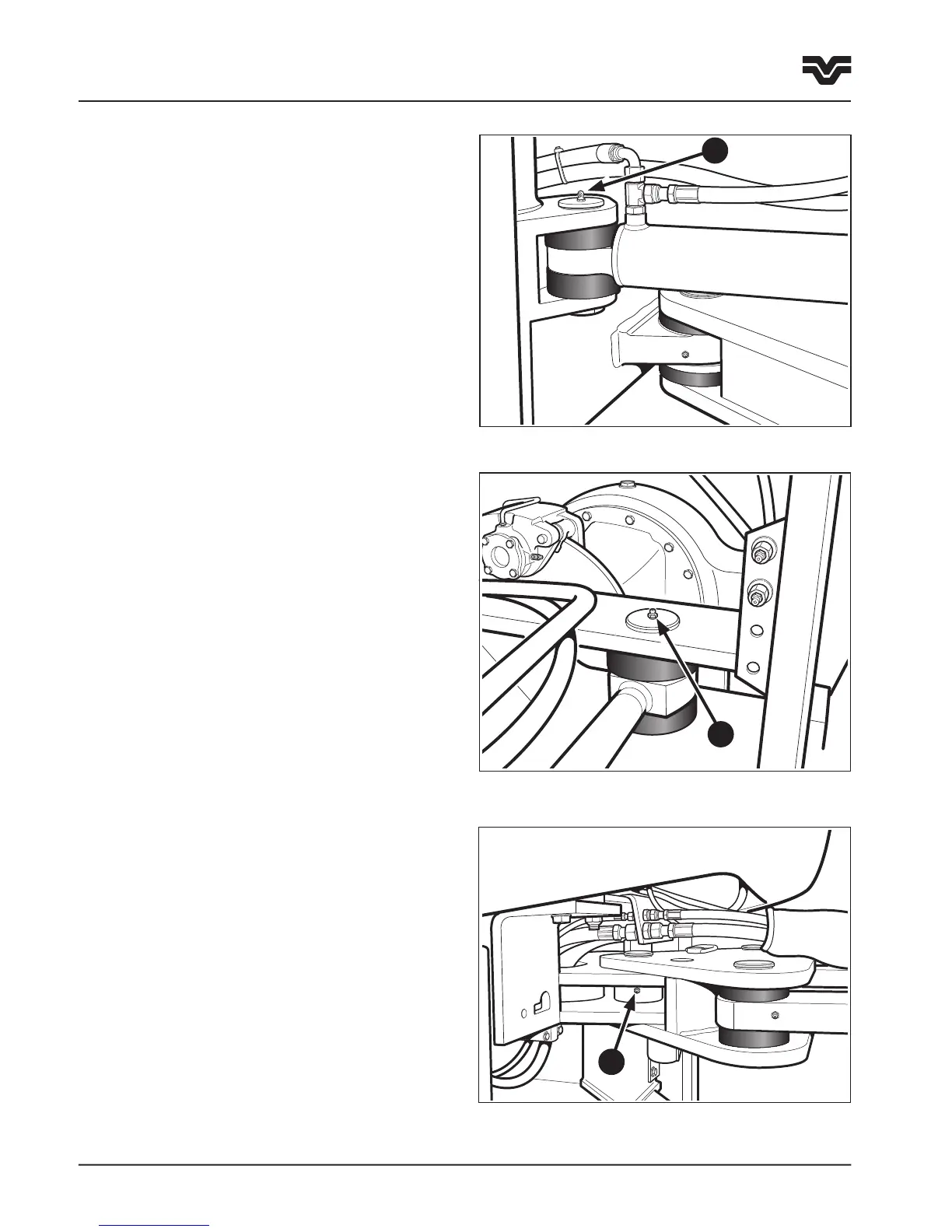

Lubricate the Front Steering Cylinder Pins
Lubricate the two grease fittings (1) (one on each side)
until grease flows from around the pin seals.
This will purge any dirt accumulated in the pivot pin
area.
Use Moly base grease (NLGI 1 Lithium, Moly).
Operation 13
Lubricate the Rear Steering Cylinder Pins
Lubricate the bottom two grease fittings (2) (one on
each side) until grease flows from around the pin
seals. This will purge any dirt accumulated in the
pivot pin area.
Use Moly base grease (NLGI 1 Lithium, Moly).
Operation 14
Lubricate the Upper Articulation Pin
Lubricate the grease fitting (3) until grease flows from
between the frame pieces. This will purge any dirt
accumulated in the pivot pin area.
Start the unit and articulate from side to side to work
the grease into the joint.
Use Moly base grease (NLGI 1 Lithium, Moly).
