Transporting
Transporting the Tractor
1. Haul the tractor with all four wheels on to a flatbed
trailer.
2. Remove the outer duals or triples during
transporting unless special permits allow for over-
width hauling. Consult local authorities for
information on over-width hauling.
3. Make an accurate measurement of the highest point
on the tractor when it is loaded on the transporter.
Consult local authorities regarding over-height
hauling based on the measurements taken.

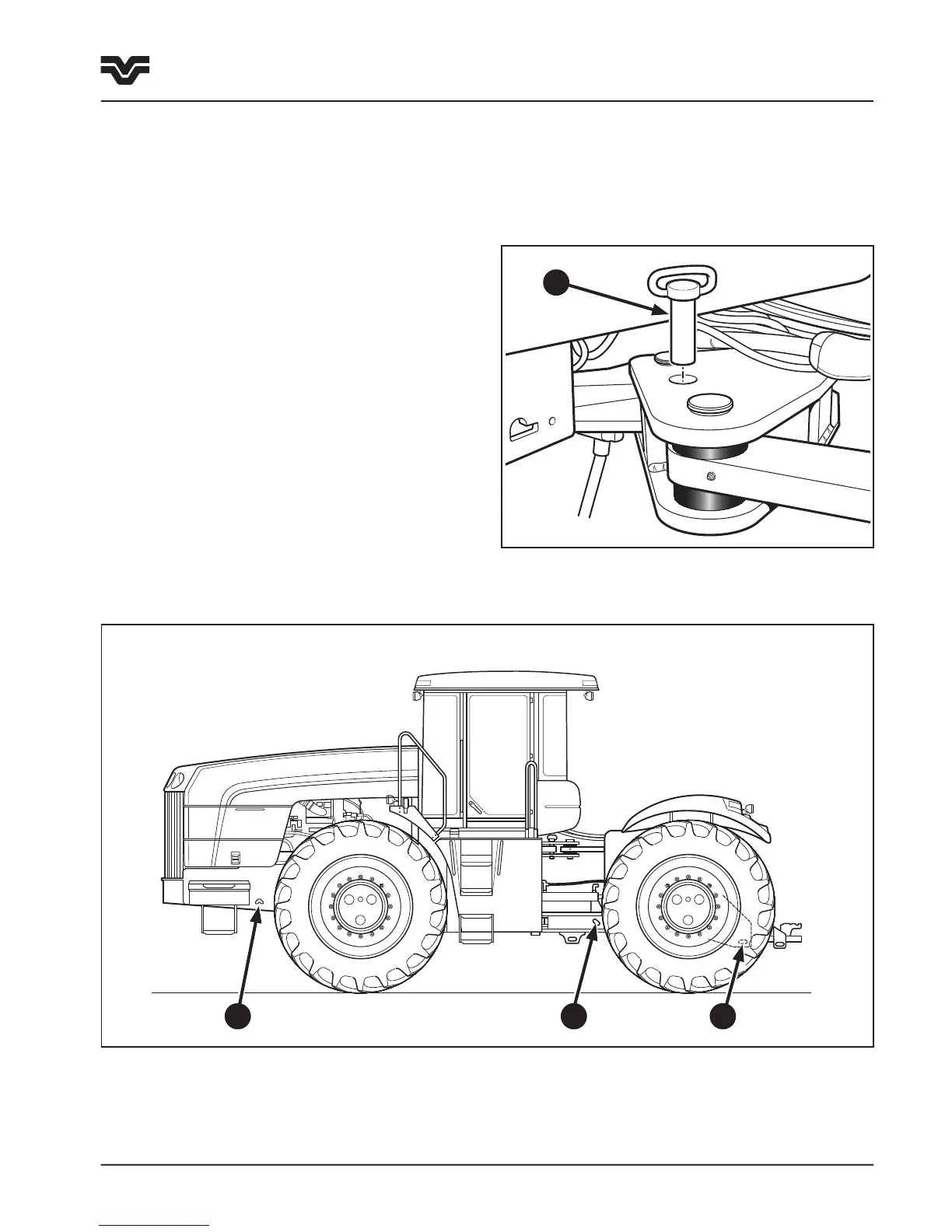

4. Tie-down brackets are located in the following
positions.
Cutout slots (1) are located on either side of the front
frame to allow a chain hook to be used to hold down
the front end of the tractor.
Tie-down brackets are located on either side of the rear
frame, in the articulation area (2) and on the drawbar
cage (3). Use a chain of adequate size, routed through
the brackets to hold down the tractor.
1
6. Always fully engage the park brake and install
the articulation lock pin (4) when transporting the
vehicle.
4
2 3
