Buhler 435 - Check the Engine Turbocharger Connections; Check the Cab Mounts

4-46
435/485/535
F4-77
F4-75
Operation 61

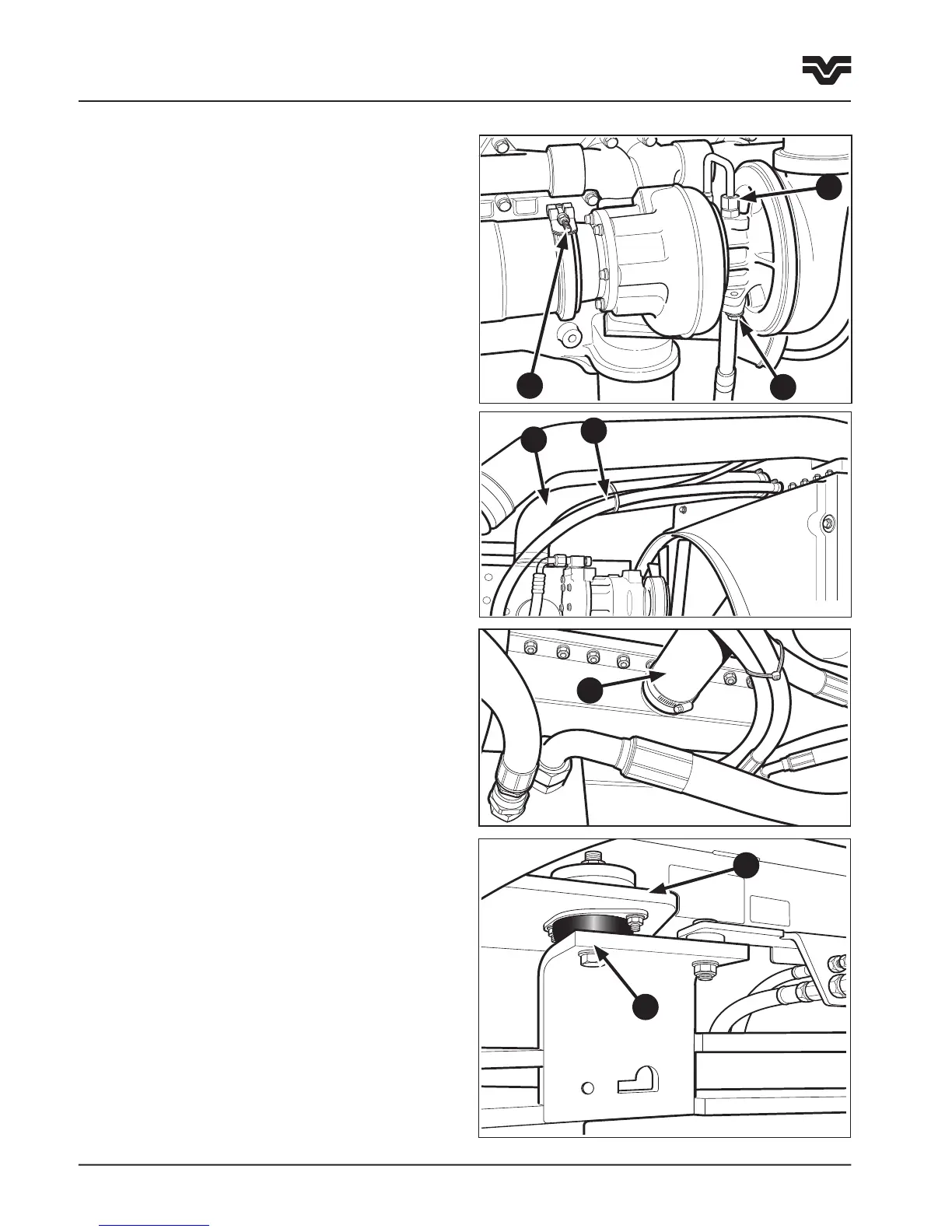

Check the Engine Turbocharger Connections
Check the exhaust pipe to turbo outlet clamp (1).
Torque the clamp to 9 N
.
m (80 in. lbs.). Torque
the lower oil drain line cap screws (2) to 27 N
.
m
(239 in-lbs). Tighten the upper oil supply line fitting
(3) to 20 N
.
m (177 in-lbs)
Tighten the four nuts that mount the turbocharger
to the exhaust manifold of the engine to 61 N
.
m
(45 ft-lbs). (Not shown).
Operation 62
Check the Radiator and Heating System Hoses
Check the upper (4) and lower (5) radiator hoses for
deterioration due to heat or contact with other engine
components. Inspect the fill hose (6) for similar wear
or damage.
If any hoses in the engine cooling system or tractor
heating system require replacement, contact your
Buhler Versatile dealer.
Operation 63
Check the Cab Mounts
The cab is mounted on four rubber mounts in each
corner of the cab.
Check the mounts for wear or deterioration and torque
the mount nut and bolts (7) to 217 N
.
m (160 ft-lbs).
Torque the nut and bolts (8) that hold the mounts to
the frame to 97 N
.
m (72 ft-lbs).
If the mounts require replacement, contact your
Buhler Versatile dealer.
Section 4 - Lubrication & Maintenance
