Section 3 - Operation
Cab Features - Seating
Standard Seat

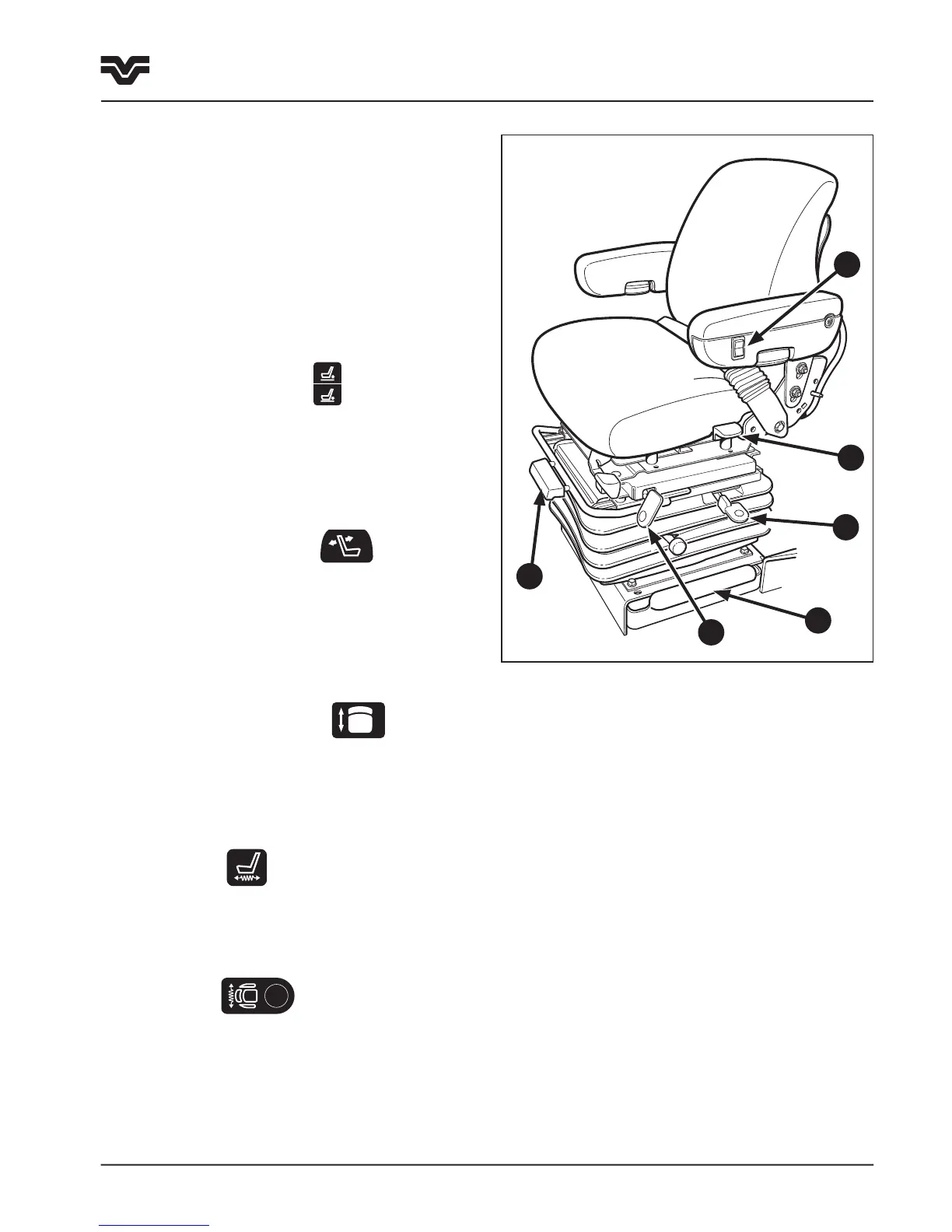

The seat is equipped with controls to permit the
following adjustments for personal comfort.
NOTE: All adjustments should be made in the following
order while sitting in the seat.
Adjust the seat using the following procedures:
NOTE: With the engine off, adjust the seat by
turning the ignition switch to the “ACC” position.
DO NOT START THE ENGINE.
1. Height/Weight Adjustment
Raise - Depress the top of the switch. Release when
the desired height is obtained.
Lower - Depress the bottom of the switch. Release
when the desired height is achieved.
2. Backrest Angle Adjustment
Lift the lever and tilt the backrest to the desired
position. Release the lever to lock the backrest in
position.
NOTE: The backrest will tilt backward far enough to
contact the rear window.
3. Fore/Aft Position Adjustment
Pull up on the lever and move the seat fore/aft
through the 178 mm (7”) adjustment range to the
desired position. Release the lever to lock the seat
into position.
4. Fore/Aft Float
Pull up on the lever to allow the seat to float fore and
aft 51 mm (2”).
Push down on the lever to lock the
seat into position.
5. Lateral Float
Pull up on the lever to allow the seat to float laterally
51 mm (2”). Push down on the lever to lock the seat
into position.
6. Storage tray
Pull out for access.
