Buhler 435 - Page 43

3-14
435/485/535
ON
N
N
N
N
N
N
N
N
F3-13
AUTO
F3-12
(SET)
OFF
CRUISE
N
1
3
2
4
N
L
H
M
R
N
ON
STOP
AUTO
1. Gear selector
2. Range selector
3. Hydraulic lever control 1-6
4. PTO - Power Take Off (optional)
5. Fuse & relay panel cover
6. Flow controls 1-4
7.
CAT TA22 transmission autoshift switch (optional)
8. Differential lock switch (optional)
9. Hand throttle control lever
10. Cruise control +/- increment/decrement switch
11. Cruise control on/off switch
12. Cup holder
13. Cigarette lighter
14. Electro-hydraulic control pods (optional)
15. Electro-hydraulic engagement switch

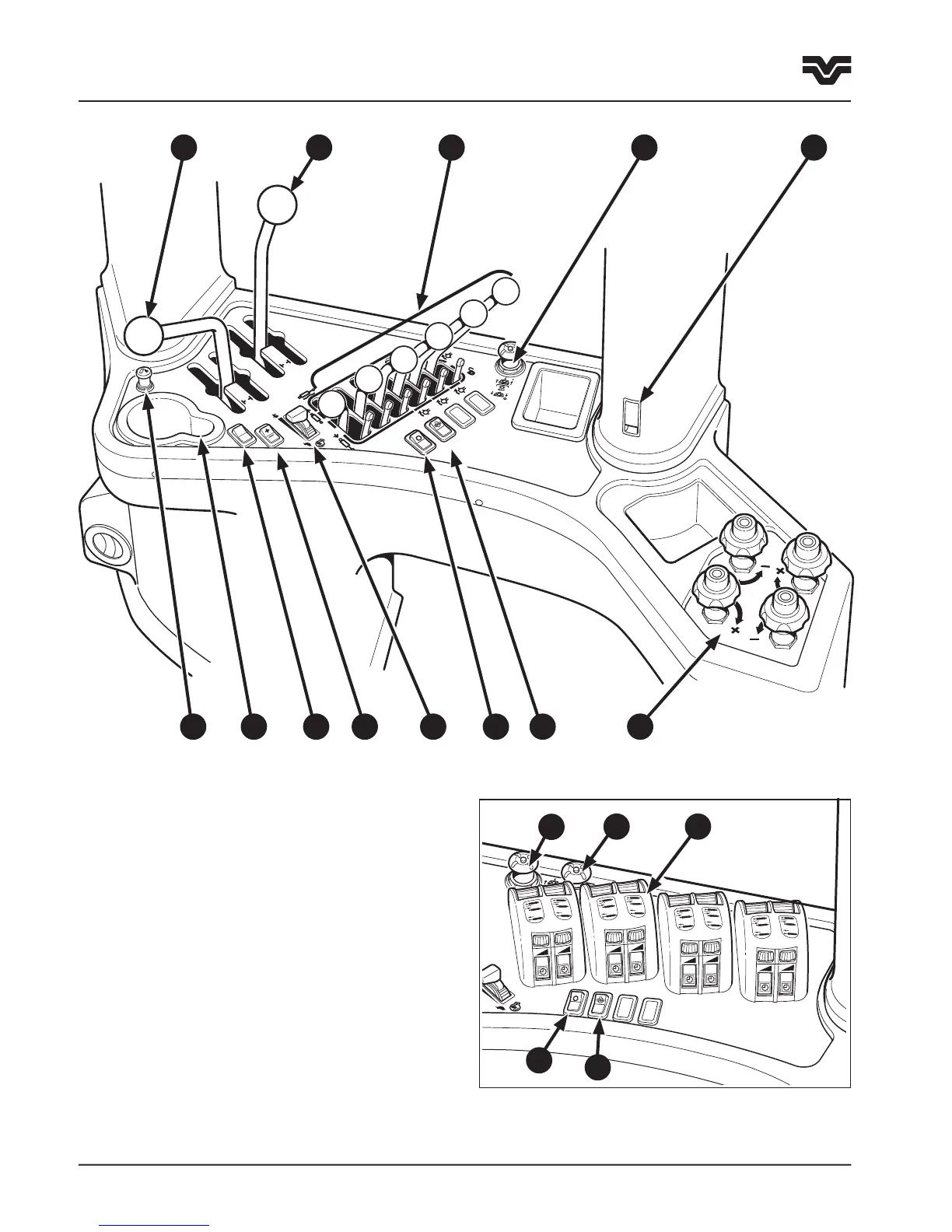

Right Side Console Controls - Synchromesh Transmission with Manual Hydraulics
54321
13
11
679
12
Synchromesh transmission with optional
Electro-hydraulics
15 14
4
