Electronic Instrument Cluster - EIC
F3-29
F3-32
TRAILER BRAKE
TRAILER 1
Indicator, Warning Lamps and Audible Alarm

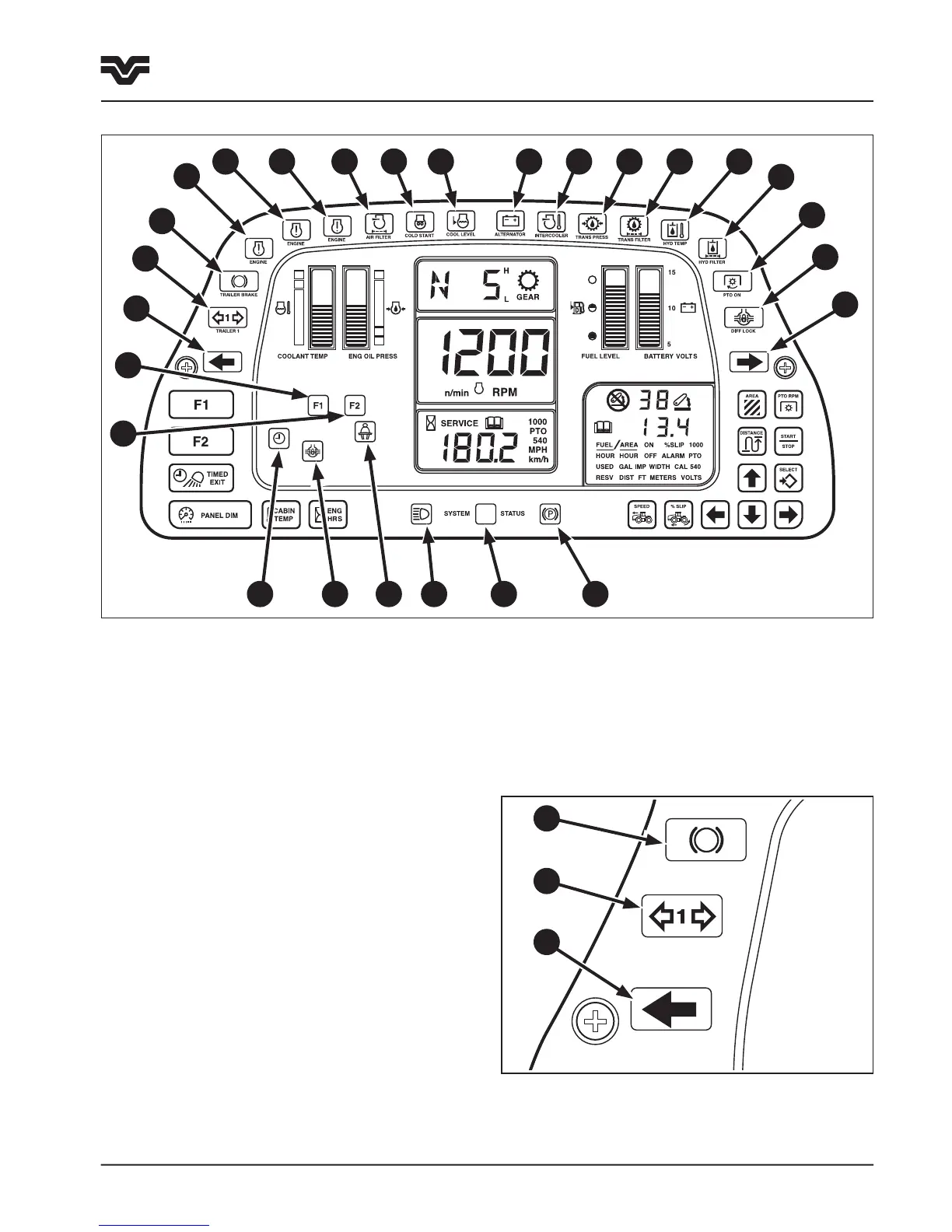

The twenty-six colored status lamps, shown above,
provide operating information or give warning of
system malfunction. The malfunction warning lamps
are accompanied by an audible alarm.
The status lamps/audible alarm function as follows:
1. Left Turn Signal
The Turn Signal lamp (1) will flash in unison with
tractor left-hand turn signal. An audible alarm will
sound if the turn signals are left on for more than two
minutes.
2. Trailer 1 Turn Signal
Not used.
3. Trailer Brake
Not used.
5 6 7 8 9 10 11 12 13 14
4
3
2
1
15
16
17
18
192021242526
3
2
1
22
23
