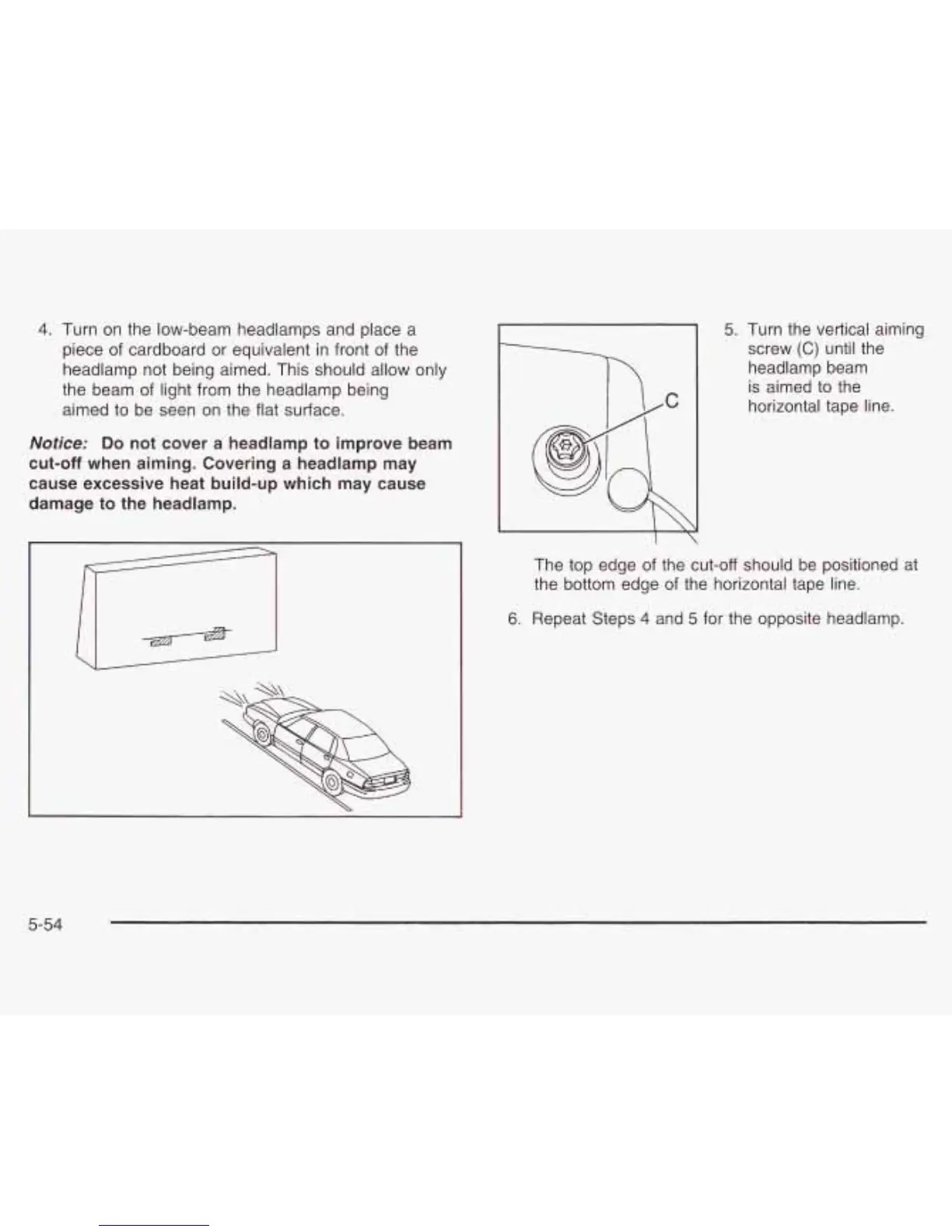

4.
Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being aimed. This should allow only
the beam
of
light from the headlamp being
aimed to be seen on the flat surface.
Notice;
Do not cover a headlamp to improve beam
cut-off when aiming. Covering a headlamp may
cause excessive heat build-up which may cause
damage to the headlamp.
5.
Turn the vertical aiming
screw
(C)
until the
headlamp beam
is aimed to the
horizontal tape line.
The top edge of the cut-off should be positioned at
the bottom edge of the horizontal tape line.
6.
Repeat Steps
4
and
5
for the opposite headlamp.
