Fuses Usage
F10 Rear power windows
F11 –
F12 Sunroof
F13 Front heated seats
F14 Exterior rearview
mirror
F15 Body control
module 3
F16 –
F17 Body control
module 6
F18 Body control
module 7
F19 Data link connector
F20 SDM
F21 HVAC
F22 Liftgate release
F23 Passive entry/
Passive start
F24 OCC sensor
F25 Steering wheel
controls
Fuses Usage
F26 Ignition
F27 Body control
module 4
F28 Transmission control
module
F29 Body control
module 2
F30 USB
F31 Rear HVAC blower
F32 Body control
module 1
F33 Universal remote
system
F34 Parking assist
F35 OnStar
F36 Display
F37 Radio

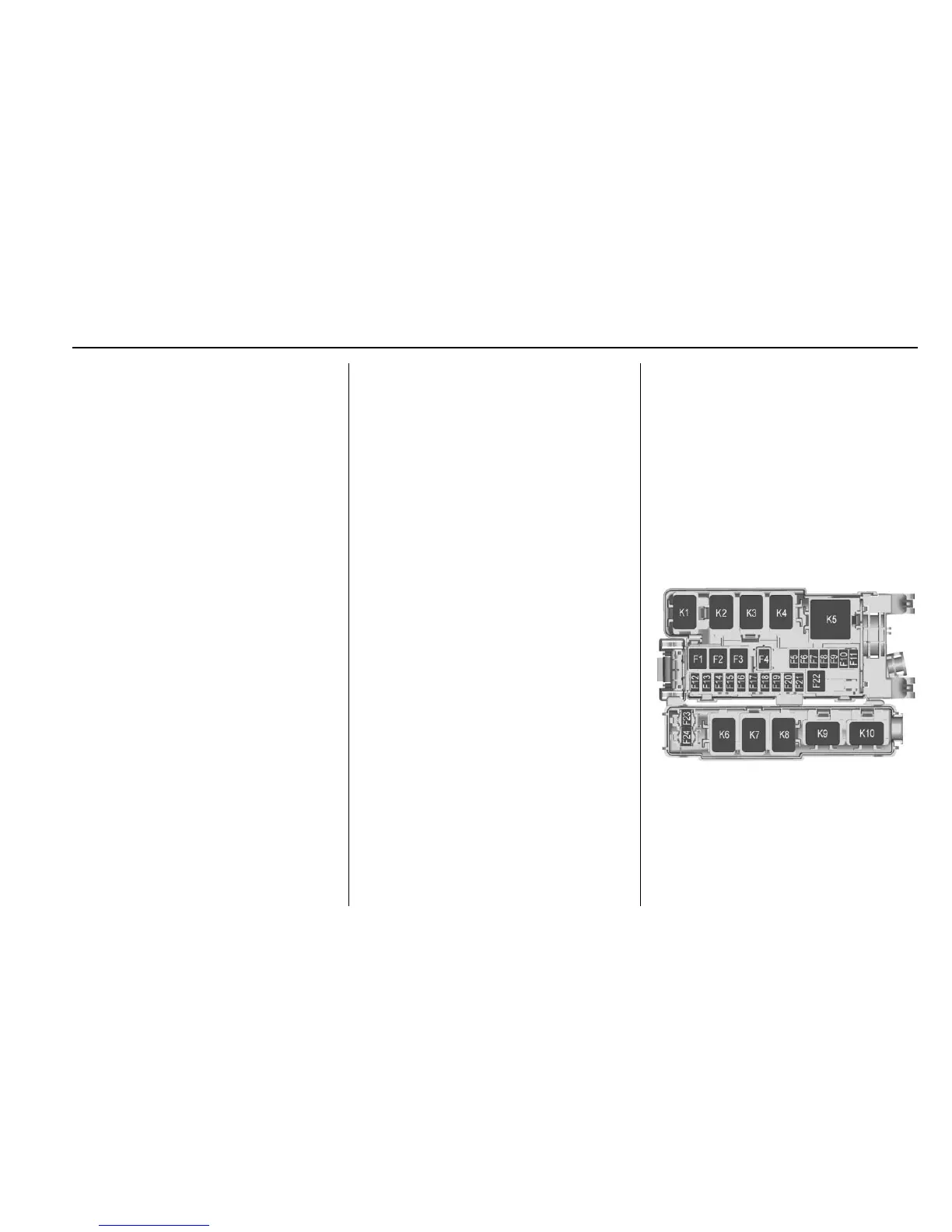

Rear Compartment Fuse
Block
The rear compartment fuse block is
behind a cover on the left side of
the rear compartment. To access
the fuses, remove the cover.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Fuses Usage
F1 –
F2 DC AC
F3 –
To Next Page
