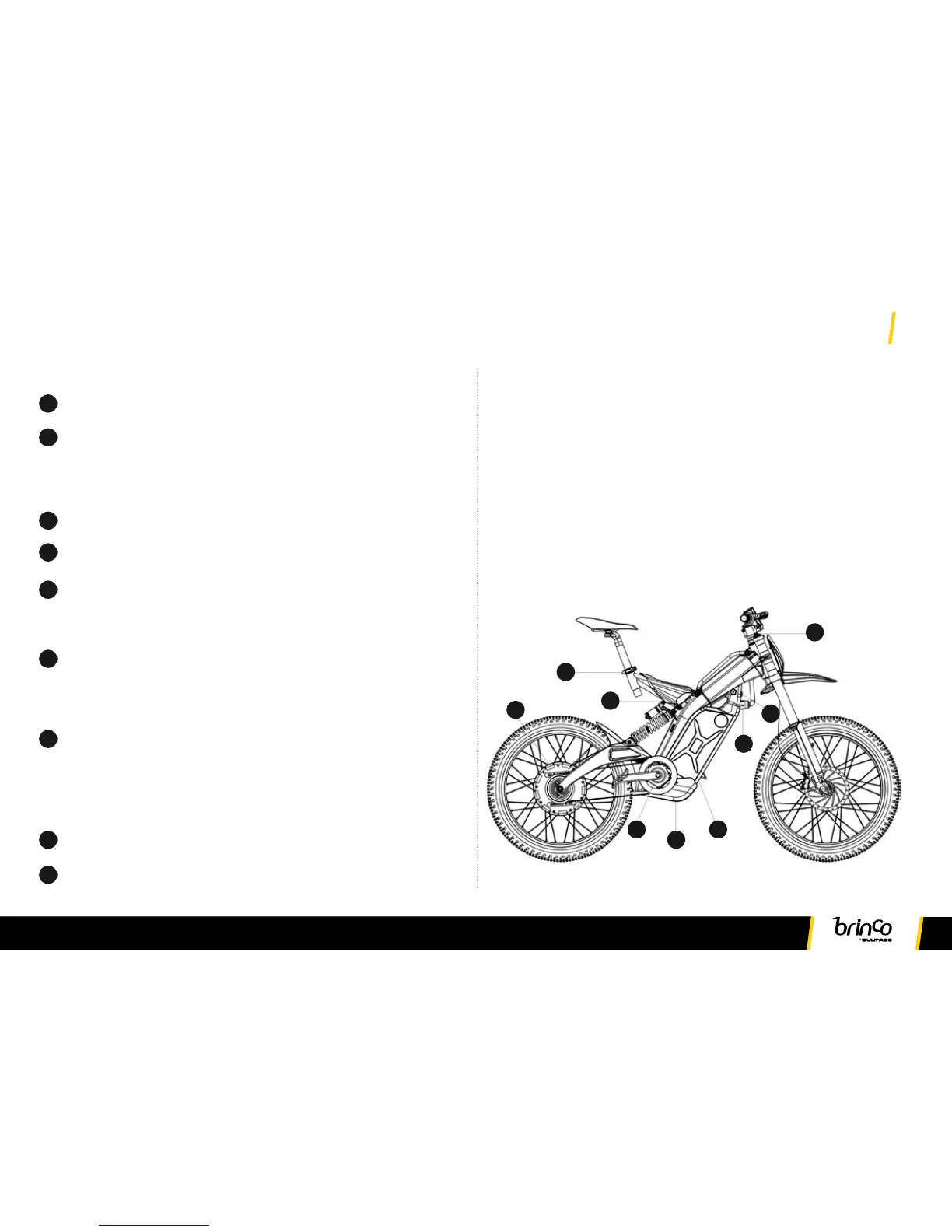

2.2. Location of Components
5
6
9
7
8
1
2
3
4
Three-phase Permanent Magnet Motor. [See section 2.9]
Planetary gearbox [See section 3. 5]
Possibility of Change: Overdrive - Low Range Gearbox (2) by
touching the button located at the base of the rod: Pressing
with the right foot it goes to the gear ratio of higher speed.
DC / AC Three Phase Controller [See 2.9]
Power Cell Li-Ion Matrix Battery [See 2.9]
Battery Connector [See 3.2.1]
Disconnect your battery power system quickly with a simple
twist of the connector in a counterclockwise direction.
Battery safety lock [See 3.2.1]
The battery has a single key safety lock for each vehicle. The
battery will be attached to the chassis and the key is required
to remove it.
Seat Adjustment [See 2.9]
With the standard sub-chassis, the seat can reach a minimum
height of 1 metre from the ground (cutting the seat bar). There
is also the option to purchase a LowSeat sub-chassis that
allows you to further reduce the seat height.
Rear Suspension Adjustment [See 4.1]
Front Suspension Adjustment [See 4.2]
5
6
9
7
8
1
2
3
4
