ITCB-DV HV Training
14
Dilution System
The dilution system consists of:
Dilution Valve
.50 Flow Control
Dilution Nozzle
The ITCB-DV HV can be programmed for quick brewing (without delay) or programmed with a dilution delay time
under tea recipes. After or during the dispense of concentrate into the receiving vessel, the brewer will activate the
dilute valve to begin the diluting process for the tea concentrate. The dilution valve is rated 120VAC and is mounted
on the same body as the inlet valve. The dilution water is regulated with a .50 ow washer before it dispenses out the
dilution nozzle.
Dispensing System
The dispensing system consists of:
Dispense Valve
By-pass Valve
Sprayhead
Smart Funnel
®
/Pouch Pack Tea Funnel
The ITCB-DV HV brewer is a gravity brewing system. This process
uses the head pressure in the hot water tank to allow the water to ow
from the tank once a valve is opened. For coffee brewing, the ITCB-
DV HV uses two valves; a dispense valve and a by-pass valve. Both
valves are activated by the CBA for a set time in order to achieve the
desired volume of water or by-pass percentage. The dispense valve is
rated at 120VAC. The brewing water ows out of the sprayhead on the
end of the valve. The sprayhead not only serves to diffuse the water
over the product but also serves as the outlet ow control; any spray-
head change will increase or decrease the volume of nished product.

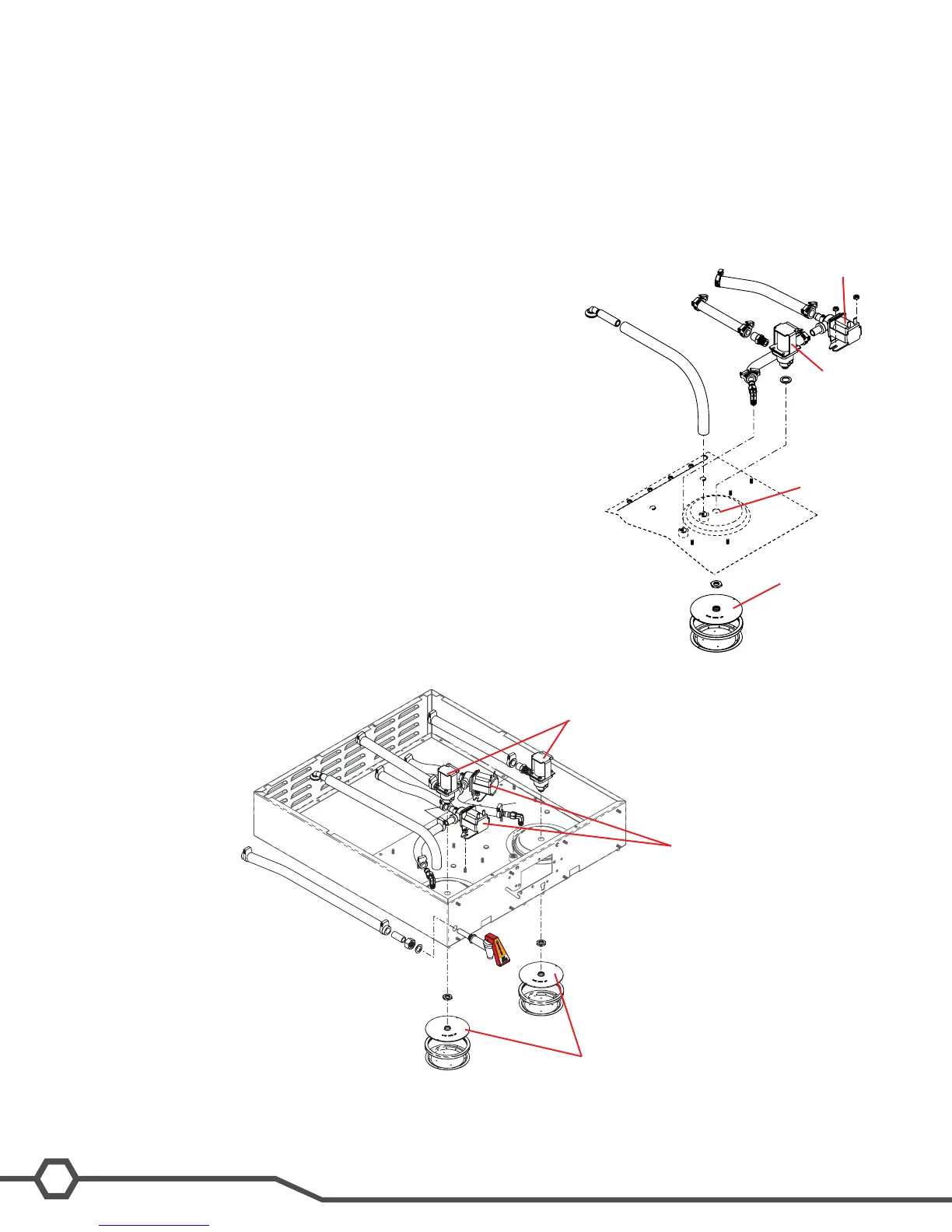

Dispense Solenoid
Bypass Solenoid
Sprayhead Outlet
Sprayhead
3
4
Dispense Solenoid
Bypass Solenoid
Sprayhead
