Sensor Lower limit Upper limit
NTC -40 °C 110 °C
PTC -50 °C 150 °C
Pt100 -200 °C 600 °C
TcK 0 °C 1300 °C
TcJ 0 °C 600 °C
TcS 0 °C 1400 °C
MEASUREMENT LIMITS FOR THE SENSOR TYPES

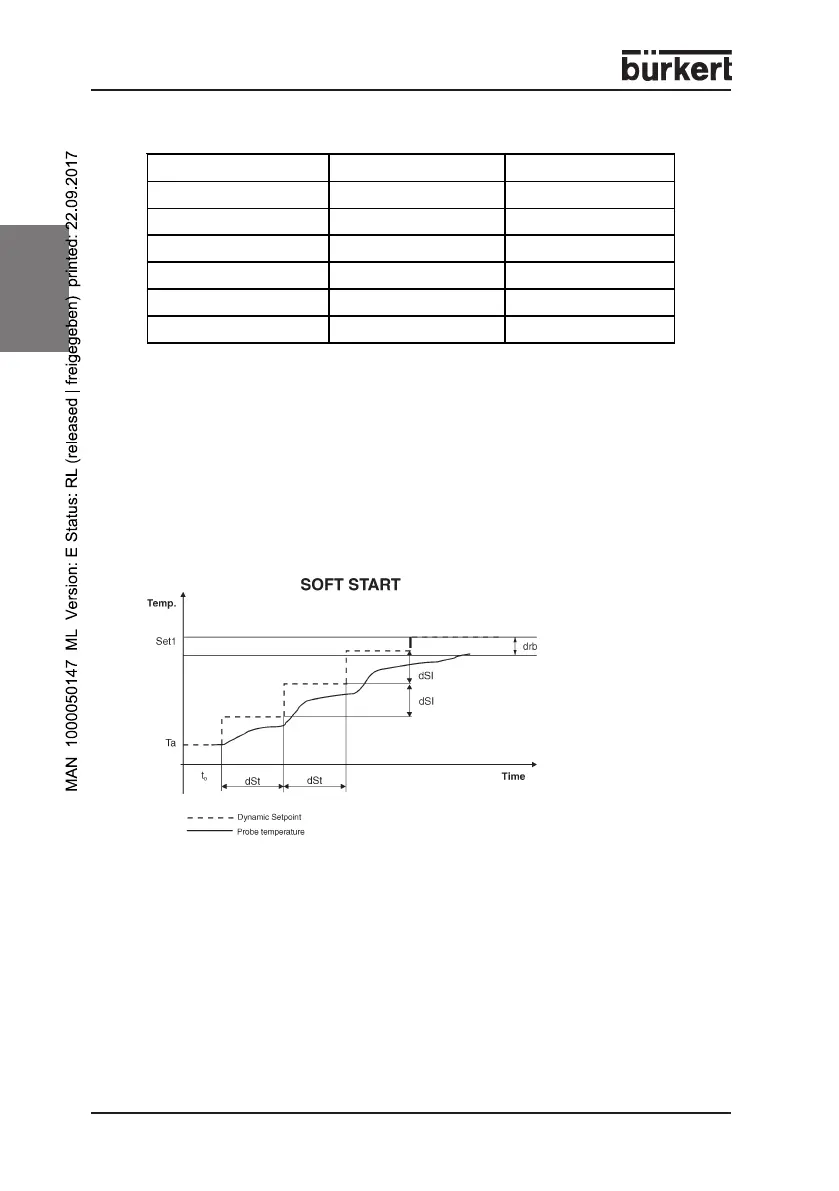

2.4 SOFT-Start function
dSI = Increase the set-value in steps (in °C or °F; deactivated with 0).
dSt = Cycle time for the step-by-step increase of the set-value
(1...3600 sec).
drb = Increasing the set-value (in °C or °F); the function is deactivated with
drb = 0. This value determines the set-value increase in steps in Kelvin
or °F.
drb Soft-Start range (in °C or °F; deactivated with 0). If the temperature
is outside this range (on both sides of the set-value),
a new SOFT-Start will be initiated.
dSI Dynamic set-value increase (in °C or °F; deactivated with 0). This
value determines the step-by-step increase of the set-value of SET1.
dSt Clock time for the dynamic set-value increase (1...999 sec) or dSl
(SOFT-Start).
Ta = Measured temperature after device commissioning.
t = Time axis.
