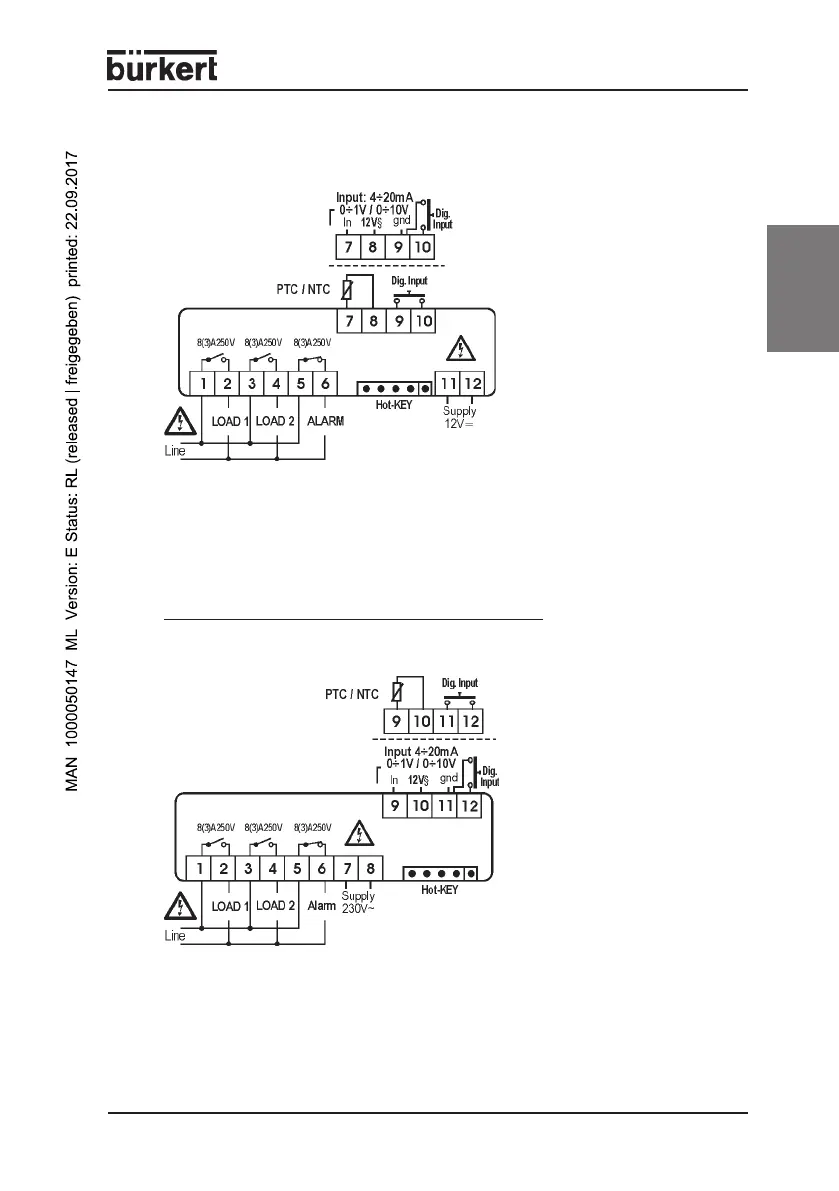

PIN ASSIGNMENT
12 V AC/DC or 24 V AC/DC
Standard signal input: 0...1 V; 0...10 V = 7(+), 9(-)
4...20 mA = 7(+), 9(-)
Thermoelement J, K, S = 7(+) - 9(-)
sensor: Pt100 = 7 - 9(8)
voltage supply: 24 V AC/DC = 11 - 12
230 V AC
Standard signal input: 0...1 V; 0...10 V = 9(+), 11(-)
4...20 mA = 9(+), 11(-)
Thermoelement J, K, S = 9(+) -11(-)
sensor: Pt100 = 9 -11(10)
voltage supply: 230 V AC = 7 - 8
