Technical data
Type 8045
10
9
8
7
6
5
4
3
2
1
0
0 +20 +40 +60 +80
PVDF (PN10) /
PP (PN10)
P (bar)
PVC + PP
A
PVC (PN10)
T (°C)
Metal
A: range of use

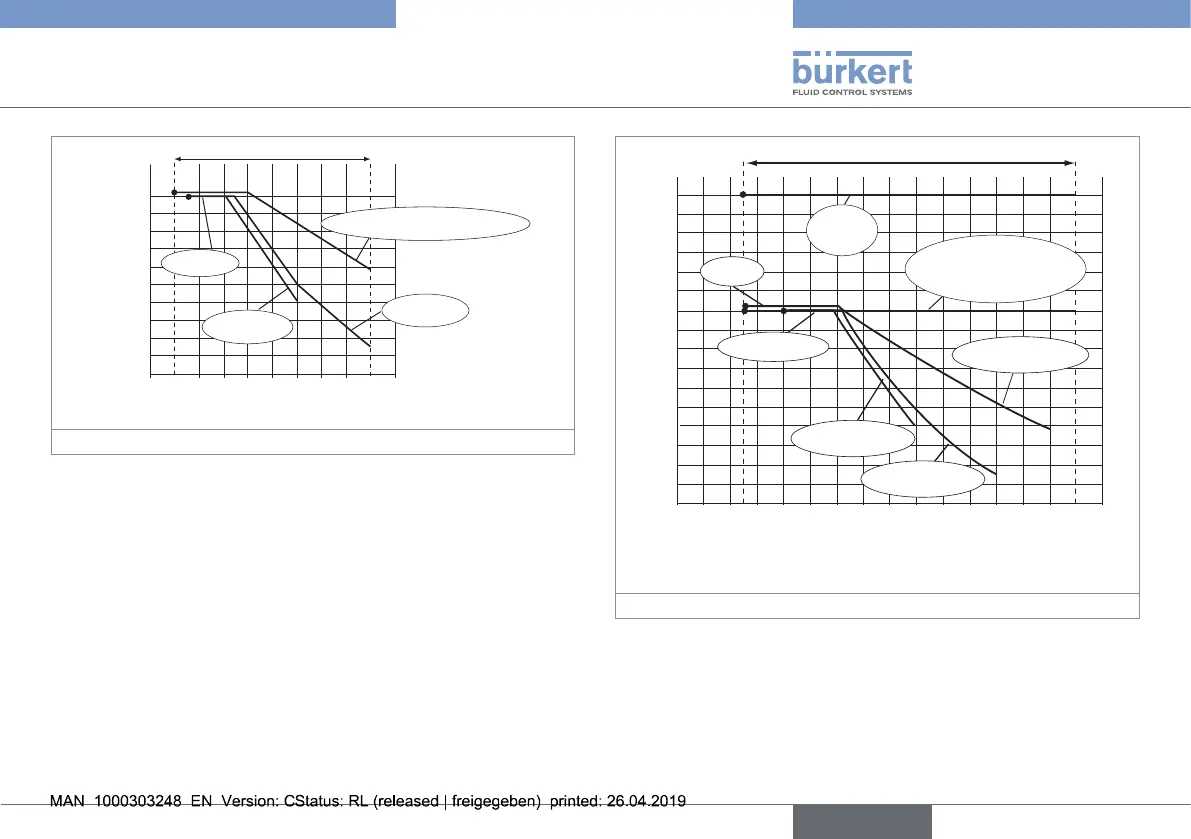

Fig. 2 : Fluid pressure / fluid temperature dependency for a 8045
with PVDF flow sensor and a fitting S020 in metal, PVC,
PVDF or PP
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
-20 0 +20 +40 +60 +80 +100 +120
PVDF (PN10)
PVC (PN10)
PP (PN10)
T (°C)
P (bar)
PVC + PP
PVDF
A
DN100 for measuring
devices with a clamp con-
nection (PN10)
Metal
(PN16)
1)
1)
Except DN100 for measuring devices with a clamp connection
A: range of use
Fig. 3 : Fluid pressure / fluid temperature dependency for a 8045
with stainless steel flow sensor and a fitting S020 in
metal, PVC, PVDF or PP
