→ Make sure the seal 3 is on the product 2.
→ Install product 2 with clamp connection onto the clamp 4 of the
pipe and put them together.
→ Fix the clamps with the clamp collar 1.
Fig. 11: Installation of a 8221 with 4 electrodes and a clamp
connection onto a pipe
7.5.2. Installation on a vessel
→ Make sure the process connection is clean. Clean it if necessary.
→ Obey the following recommendations when installing the
product.
The cell constant and the linearity of the product may vary
depending on the mounting position. A symmetrical setup is
recommended:
▶ Leave a minimum clearance of 60 mm around the
product.
▶ Use connection pieces made of non-conductive materials.
To achieve high precision the cell constant should be cali-
brated in the final setup:
▶ Make sure all 4 electrodes are completely and continu-
ously immersed in the measuring sample.
1 (not delivered)
2
3 (not delivered)
4 (not delivered)
→ Make sure the seal 3 is on the product 2.
→ Install product 2 with clamp connection onto the clamp 4 of the
vessel and put them together.
→ Fix the clamps with the clamp collar 1.

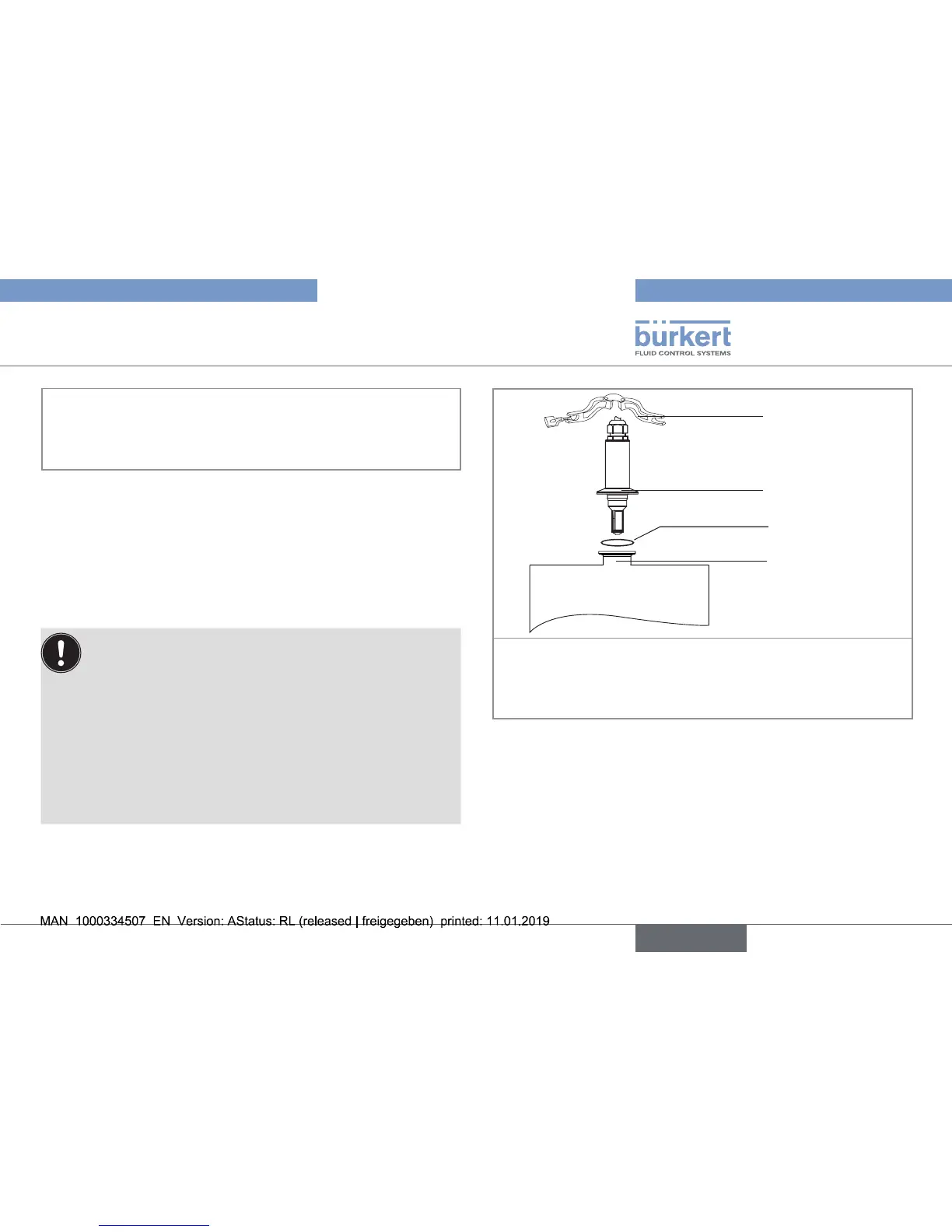

Fig. 12: Installation of a 8221 with 4 electrodes and a clamp
connection on a vessel
23
Installation
Type 8221
