7.3. Product with a G1¼'' connection
Install the product in the following ways: onto a pipe (chap. 7.3.1) or
on a vessel (chap. 7.3.2).
7.3.1. Installation onto the pipe
→ Mount a 1¼'' weld-in socket, with article number 737241 on the
pipe. Obey the instructions given with the weld-in socket.
1
3
2
(not delivered)
→ Insert the product 1 in the socket 2.
→ Screw the nut 3 on the socket 2.

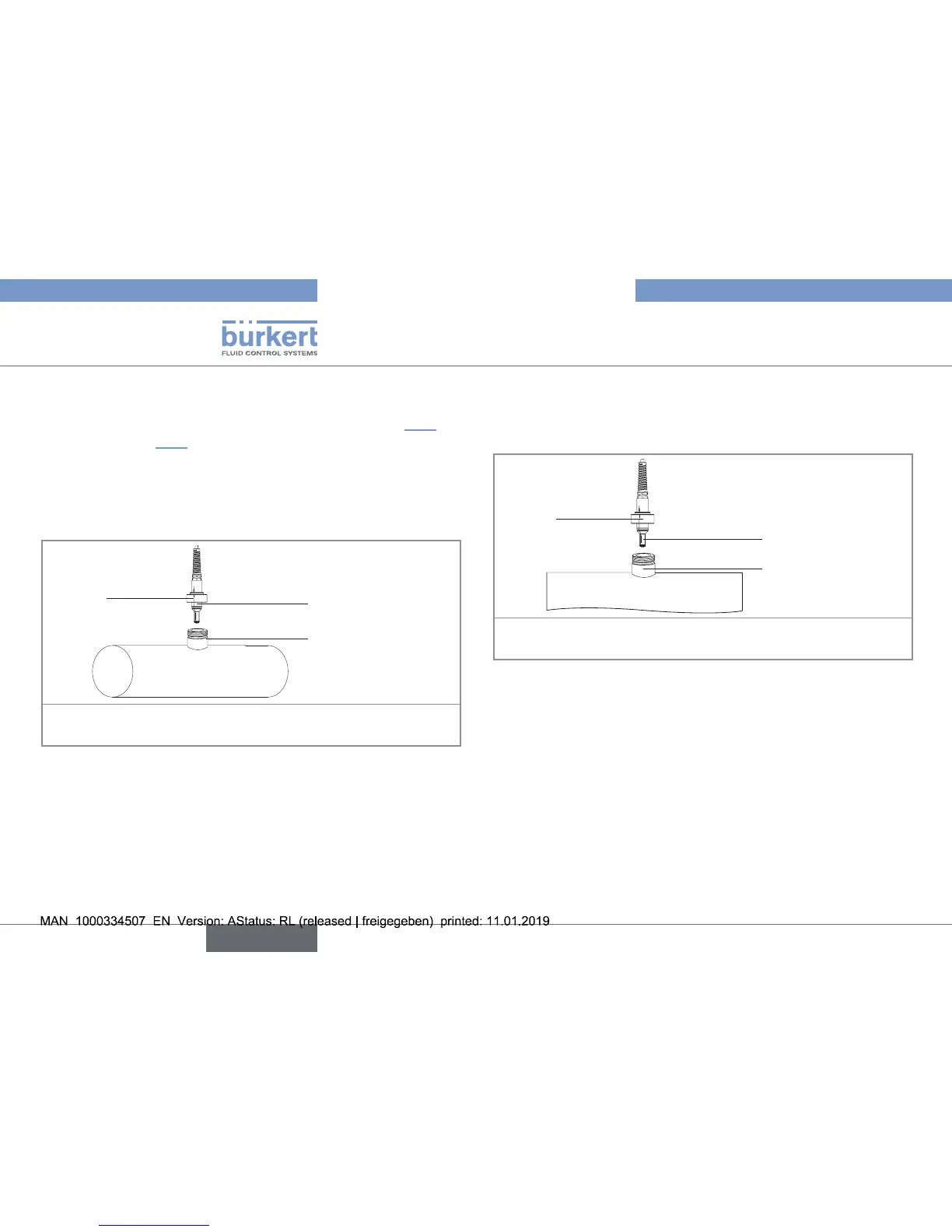

Fig. 6: Installation of a 8221 with a G1¼'' connection onto a pipe
7.3.2. Installation on a vessel
→ Mount a 1¼'' weld-in socket, with article number 737241 on the
vessel. Obey the instructions given with the weld-in socket.
1
3
2
(not delivered)
→ Insert the product 1 in the socket 2.
→ Screw the nut 3 on the socket 2.
Fig. 7: Installation of a 8221 with a G1¼'' connection on a vessel
