7.6. Product with a 2'' (DN50/40)
connection
The product with a 2'' (DN50/40) connection is mounted onto the
GEA Tuchenhagen VARINLINE process connections to the appro-
priate dimensions.
7.7. Product with a PG13.5
connection
The product with a PG13.5 connection is mounted onto a holder of
the following types:
• 8200 direct welding holder (see chap. 7.8);
• 8200 hygienic holder with G1¼'' threaded connection (see chap. 7.9);
• 8200 hygienic holder with clamp connection (see chap. 7.10).
To install the holder, refer to the Operating Instructions of
the direct welding holder Type 8200 or to the Operating
Instructions of the hygienic holder Type 8200.

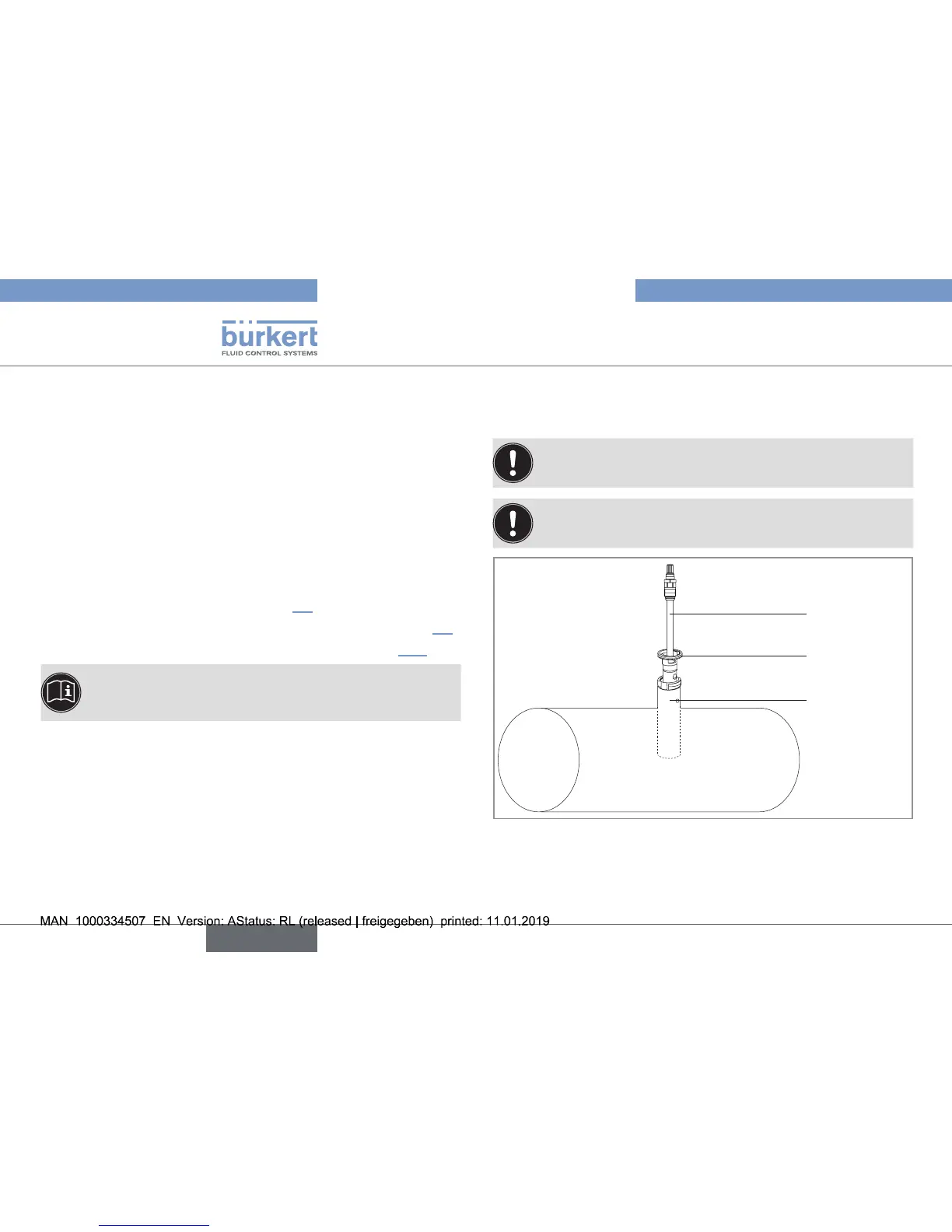

7.8. Product with a PG13.5 connection
onto a direct welding holder
The holder is only intended for the mounting of products
with a length of 120 mm.
Make sure the welded area has cooled down before
inserting the product.
2
1
3
(not delivered)
