7.2.2. Installation on a vessel
→ Choose an appropriate fitting for the installation of the product
on the vessel.
→ Make sure the seals are in good condition.
→ Place seals adapted to the process (temperature, fluid type) in the
grooves of the Clamp fitting.
→ Mount the fitting into the vessel. Obey the mounting instructions
given with the fitting.
→ Make sure the electrodes will always be completely immersed in
the liquid.
→ Make sure no air bubbles will disturb the measurements.
→ Choose an appropriate clamp collar.
1
(not delivered)
2
3
4
(not delivered)
→ Put the seal 3 onto the fitting 4.
→ Put the product 2 onto the seal 3.
→ Fix the clamp of the product 2 and the clamp of the fitting 4 with
the clamp collar 1.

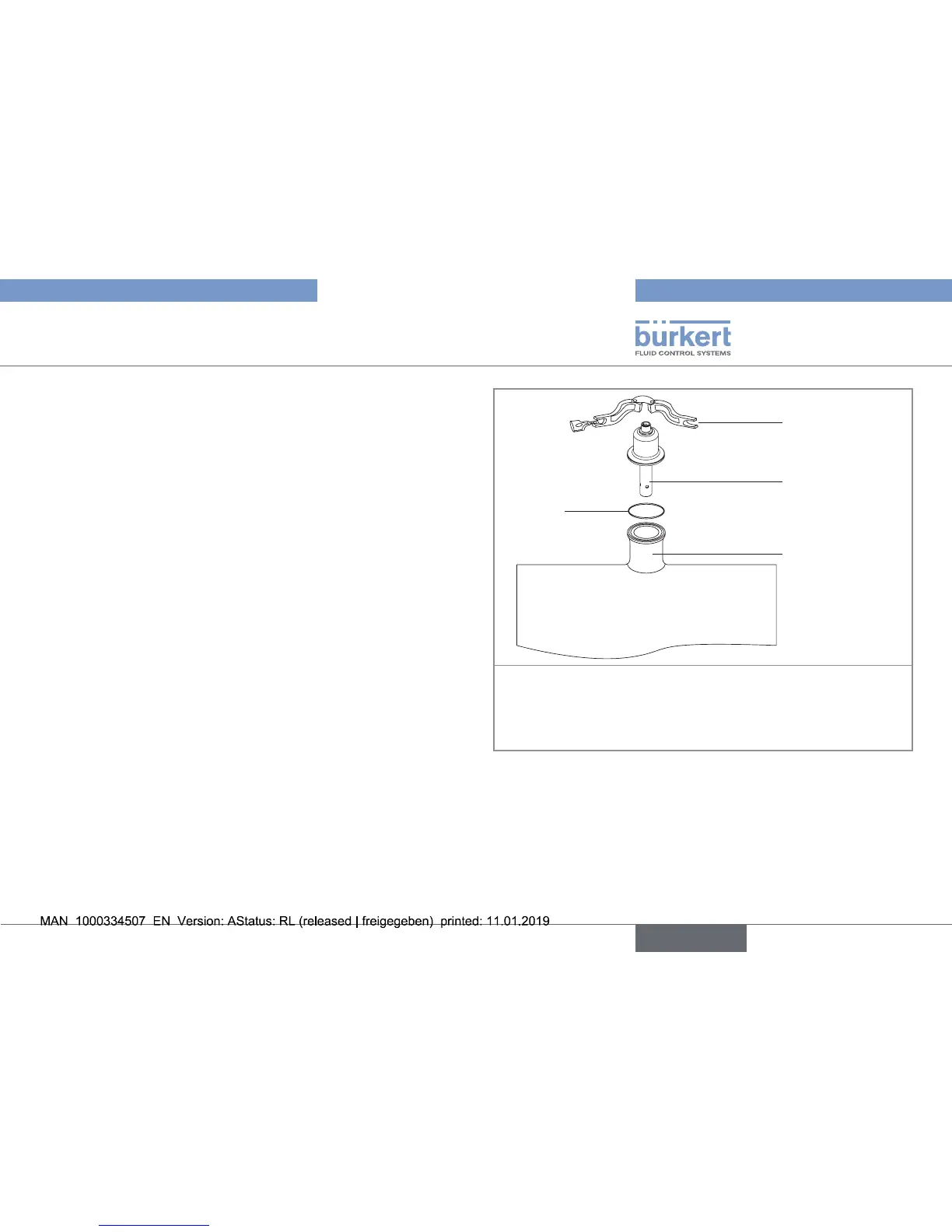

Fig. 5: Installation of a 8221 with 2 electrodes on a vessel
19
Installation
Type 8221
