Burkert 8221 - Page 18

1
(not delivered)
2
3
4
(not delivered)
5
(not delivered)
Flow direction (indicated by the arrows on the product)
→ Put the seal 4 onto the hygienic tee-fitting 5.
→ Put the product 2 onto the seal 4.
→ Align the hole 3 of the product with the flow direction. The
arrows on the product indicate how to place the product.
→ Fix the clamp of the product 2 and the clamp of the tee-fitting
with the clamp collar 1.

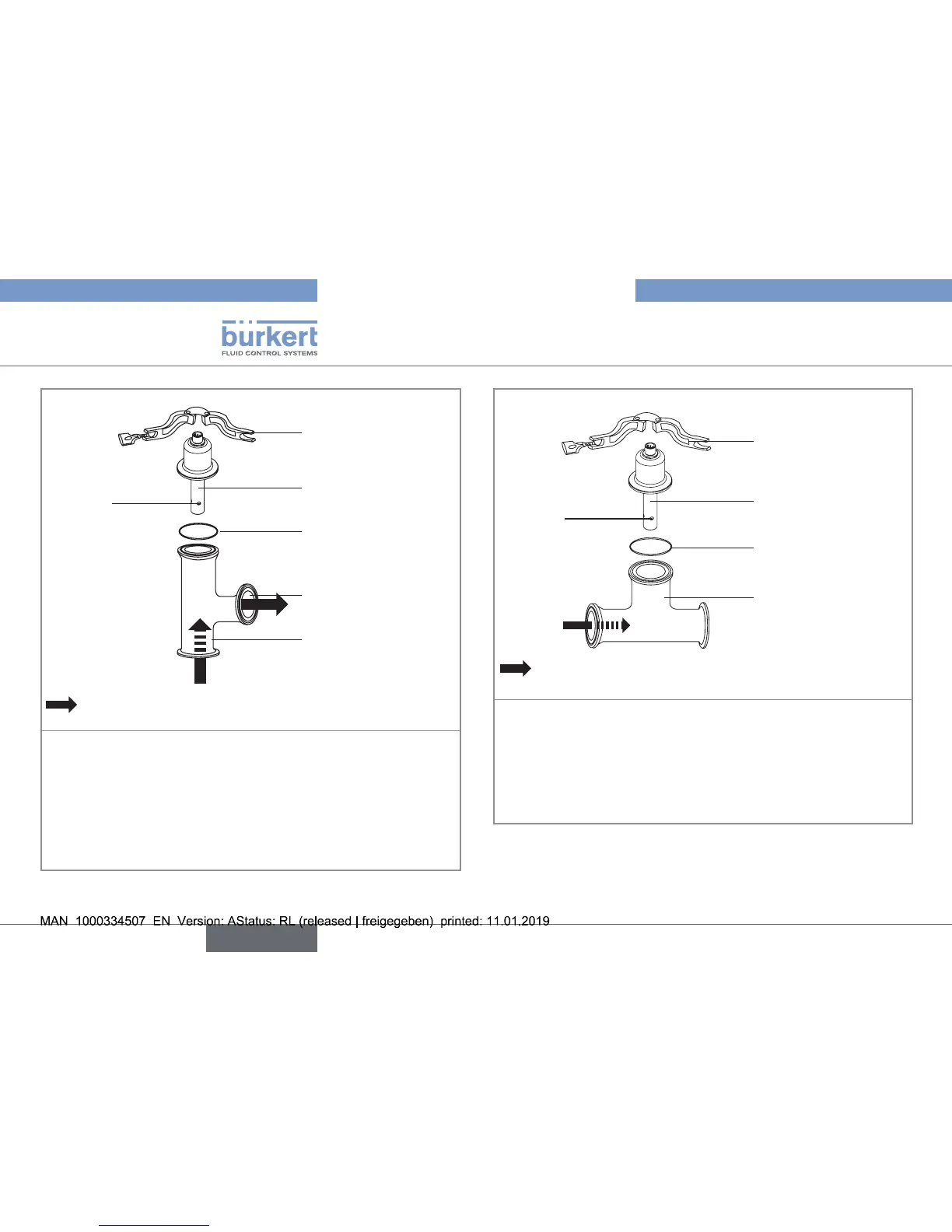

Fig. 4: Installation of a 8221 with 2 electrodes and with article
number 564899, 562261, 568818 or 569643 onto a pipe
1
(not delivered)
2
3
4
(not delivered)
5
6
(not delivered)
Flow direction (indicated by the arrows on the product)
→ Put the seal 4 onto the hygienic tee-fitting 6.
→ Put the product 2 onto the seal 4.
→ Align the hole 3 of the product with the outlet 5 of the tee-
fitting. The arrows on the product indicate how to place the
product.
→ Fix the clamp of the product 2 and the clamp of the tee-fitting
with the clamp collar 1.
Fig. 3: Installation of a 8221 with 2 electrodes and with article
number 564898, 568818 or 569643 onto a pipe
18
Installation
Type 8221
English
