Installation and wiring
C+
P+
P-
C-
GD
FE
SE
TS TS
1 2 3 4 5 6 7 8 9
Temperature
sensor
FE = functional earth

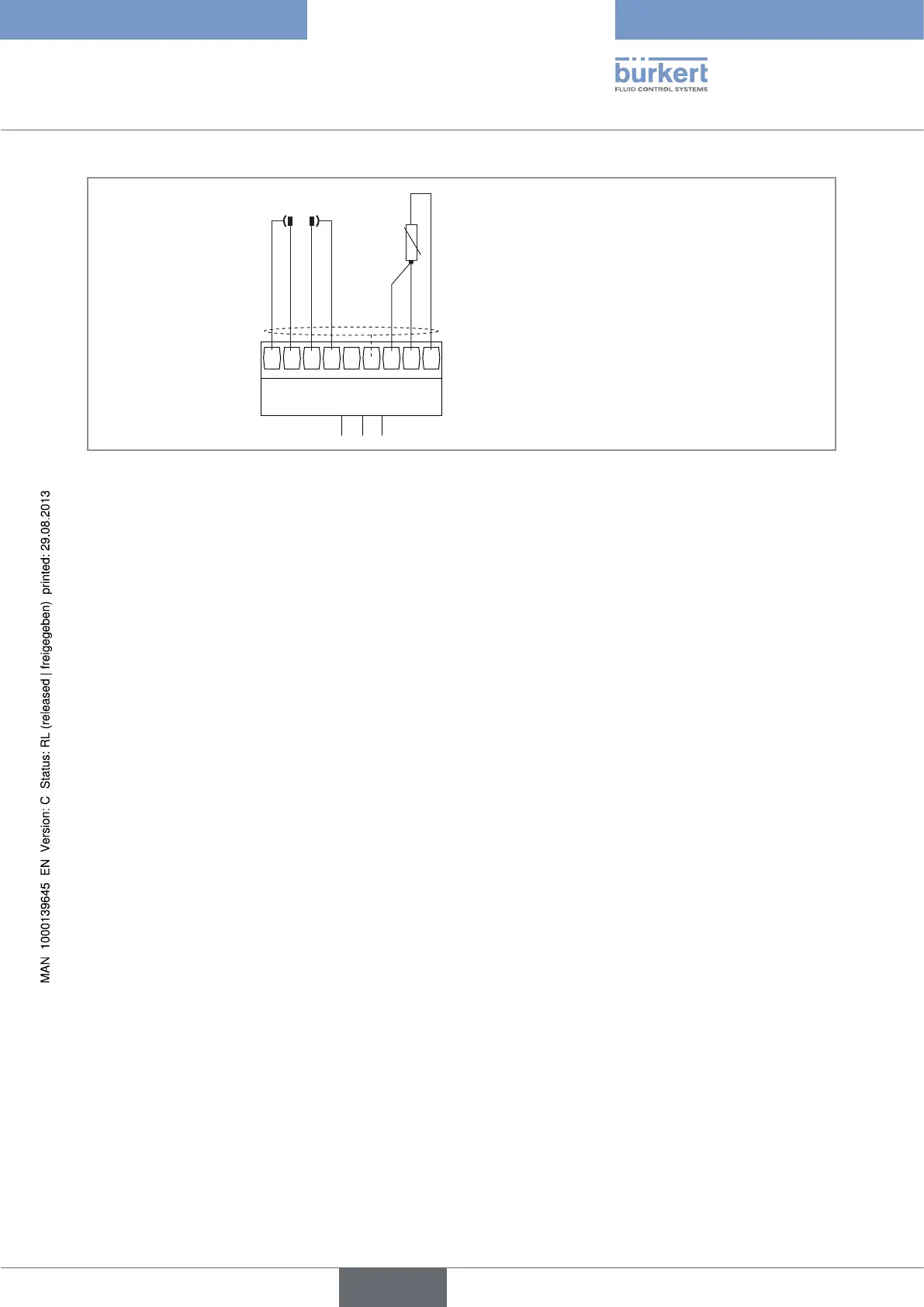

Figure 17 : Wiring a resistive conductivity cell with 4 electrodes and a Pt100 or Pt1000 temperature sensor in a conduc-
tivity module
Type 8619
