Burnham FREEDOM - Page 48

48

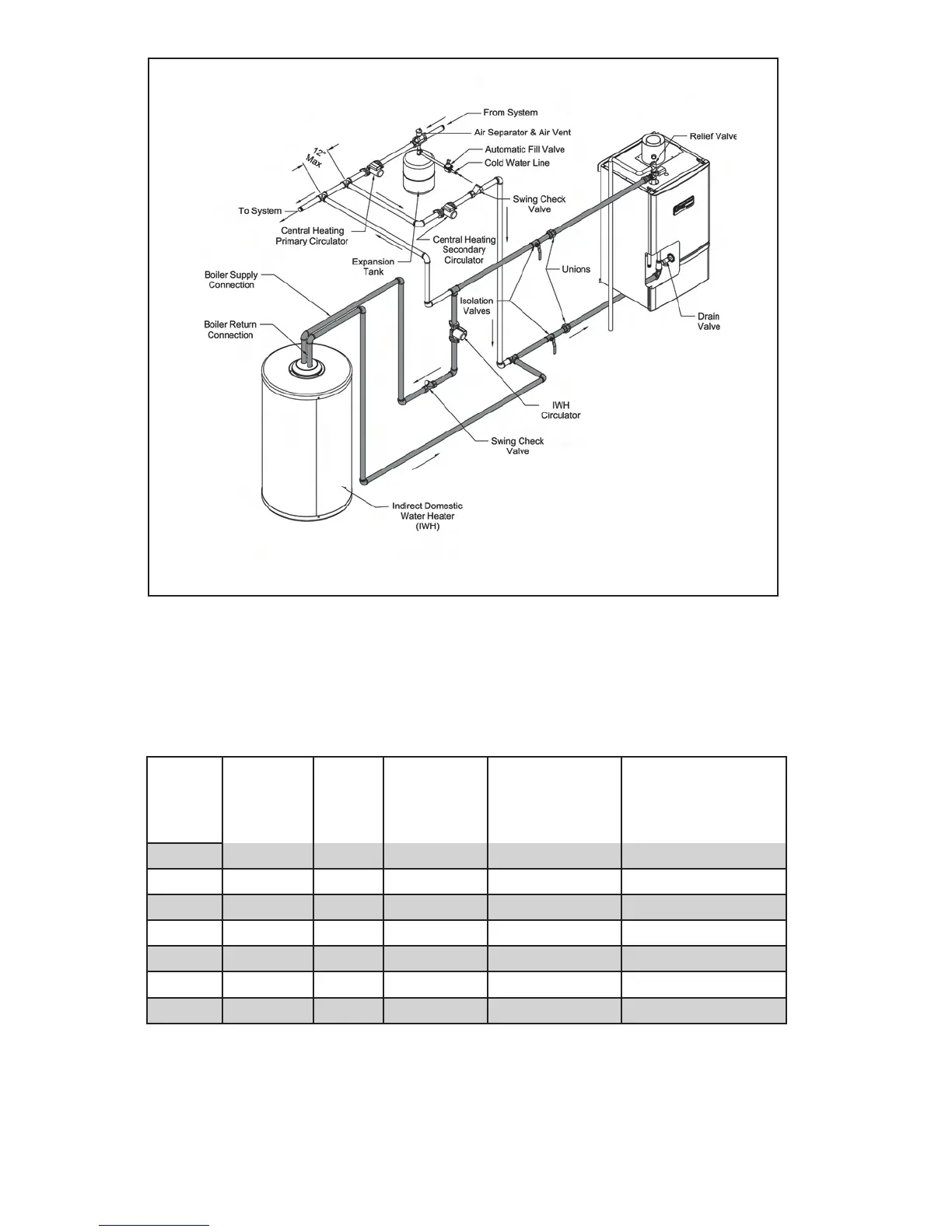

Figure 9.4b: Piping Method #1 - Indirect Water Heater Loop Piping (Shaded)
TABLE 9.5: PIPE AND CIRCULATOR SIZING FOR BOILER LOOP
BOILER
MODEL
(a) (b) (c) (d) (e)
PIPE
SIZE
(inNPT)
FLOW
(GPM)
TEMP
RISE
(F)
CIRCULATOR
MODEL
BOILERLOOP
MAXEQUIVALENT
LENGTH(ft)
FCM070 1 6.0 22 Taco007 55
FCM070 1 6.0 22 Taco008 145
FCM090 1 8.0 21 Taco0014 90
FCM090 1 8.0 21
T
aco0013(Note #1) 230
FCM120 1 8.0 29 T
aco0014 111
FCM120 1 9.0 25 Taco0014 61
FCM120 1 12.0 19 Taco0013(Note #1) 28
NOTE:
1)UseisolationrelaybetweenTaco0013andFCM-seeFigure10.3
