Burnham K2WTC - Page 21

21
107774-01- 9/17
VII. Venting A. Vent System Design (continued)

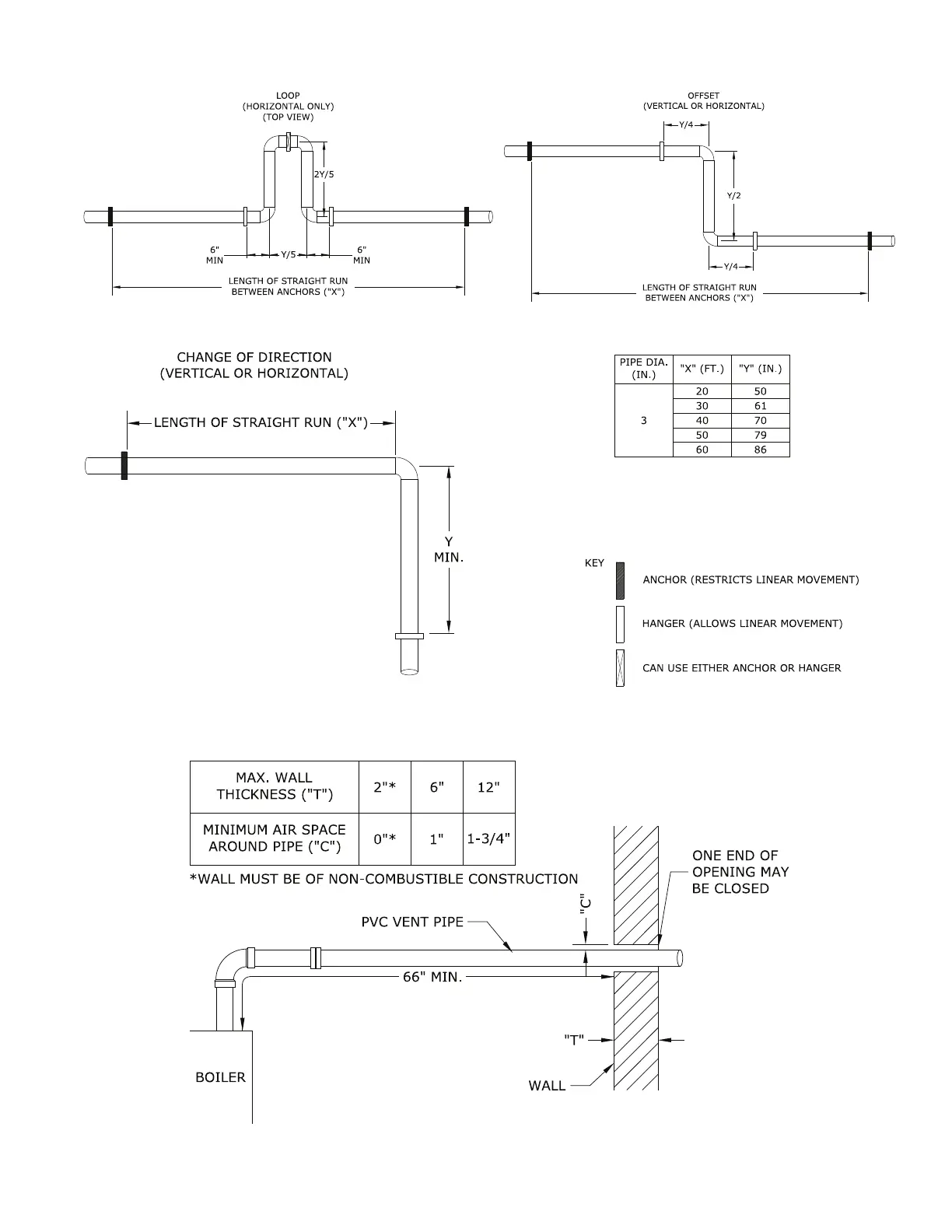

Figure 7.3: Expansion Loops for CPVC/PVC Pipe
Figure 7.3b
Figure 7.3a
Figure 7.4: Wall Penetration Clearances for PVC Vent Pipe
Figure 7.3c
