5 | Installation
10 | 32 Instruction Manual MINK MM 1102-1104 C VM_EN_en
5.2 Optional Mounting Positions: Silencer Assembly
Group
MM 1104 C VM MM 1102 C VM
Stainless steel silencer (Variant 1) X -
Cast silencer (Variant 2) - X
If the variant 1 silencer (SI) assembly group is delivered loosely.
Install the silencer assembly group

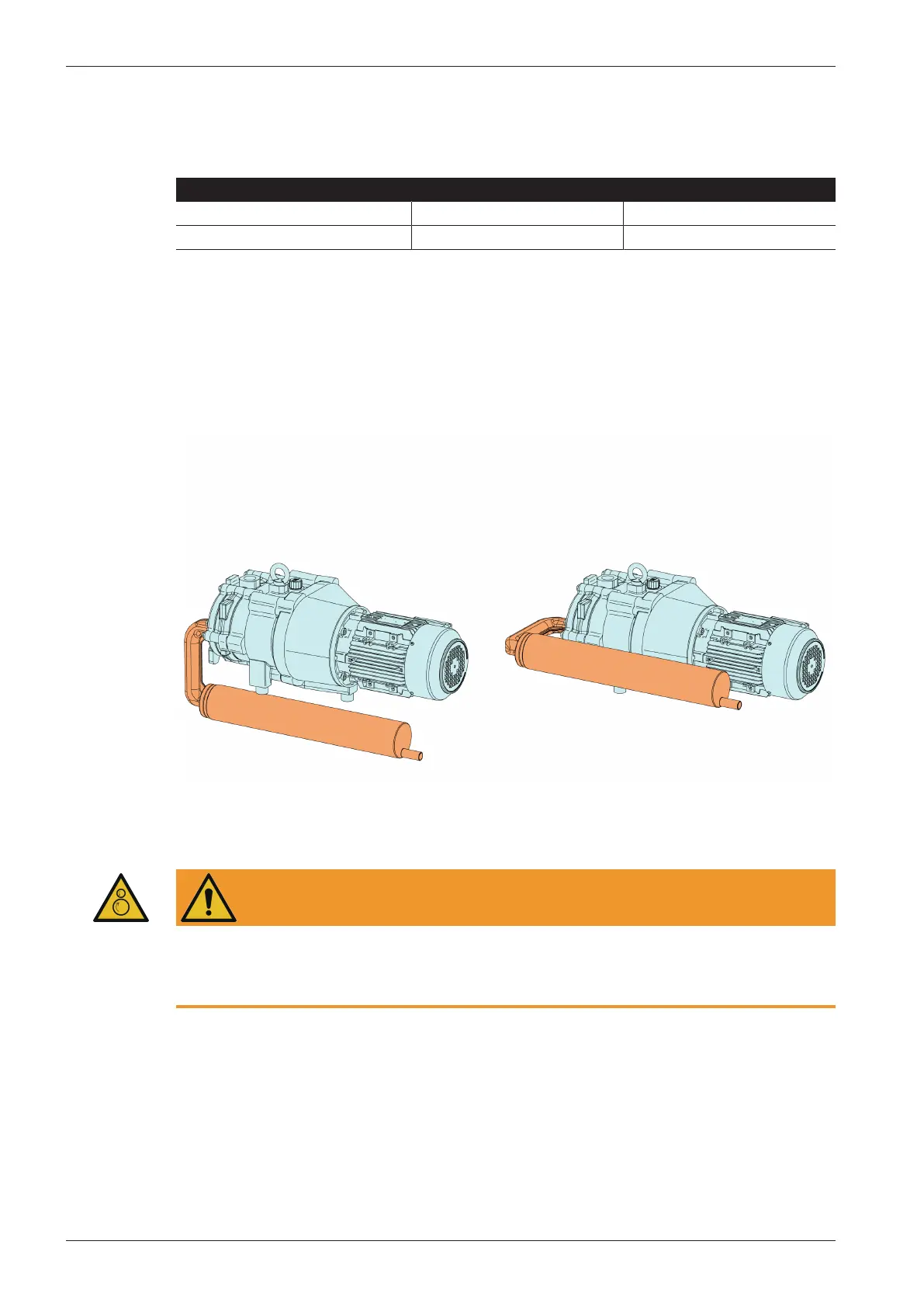

Vertical mounting position Horizontal mounting position
Scope of parts:
- 1x Silencer
- 1x Elbow
- 1x Silencer seal (square)
- 1x Silencer seal (round)
- 7x Hexagonal head bolt
Recommended mounting positions
Silencer assembly group
5.3 Connecting Lines / Pipes
WARNING
Rotating Parts.
Risk of severe injury!
Do not operate the machine without suction / discharge connection installed.
Remove all protective covers before installation.
Make sure that the connection lines cause no stress on the machine‘s connection; if necessary use
flexible joints.
Make sure that the line size of the connection lines over the entire length is at least as large as
the connections of the machine.
In case of long connection lines it is advisable to use larger line sizes in order to avoid a loss of effi-
ciency. Seek advice from your Busch representative.
