Installation | 5
0870169116_RH0003-0021B_-0002_IM_en 9 / 28
5.2.2 Discharge Connection
CAUTION
The discharge gas contains small quantities of oil.
Risk to health!
If air is discharged into rooms where persons are present:
• Make sure that sufficient ventilation is provided.
Connection size:
– ISO-KF 25
– G3/4 (without ISO-KF adapter) for RH 0003 B
– G1 (without ISO-KF adapter) for RH 0010-0021 B
• Make sure that the discharged gas will flow without obstruction. Do not shut off or
throttle the discharge line or use it as a pressurised air source.
Unless the aspirated air is discharged to the environment right at the machine:
• Make sure that the discharge line either slopes away from the machine or provide a li-
quid separator or a drip leg with a drain cock, so that no liquids can flow back into the
machine.

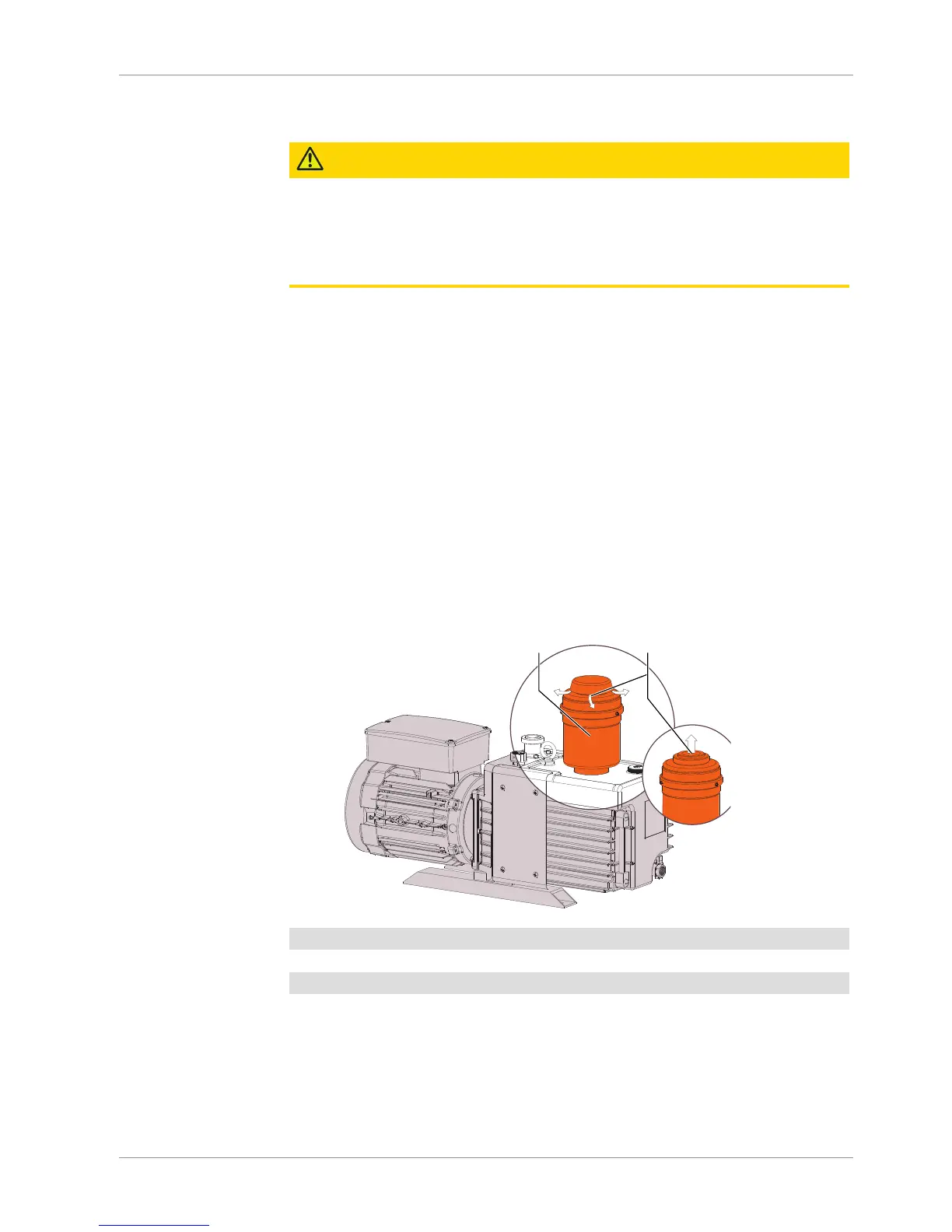

5.2.3 Oil Mist Separator (Optional)
The oil mist separator has to be fitted at the discharge connection.
• Remove the ISO-KF adapter.
• Mount the oil mist separator with its seal.
