Butler CAPTURE 4 - Fixtures Contained in the Packing; Assembly Procedures

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB

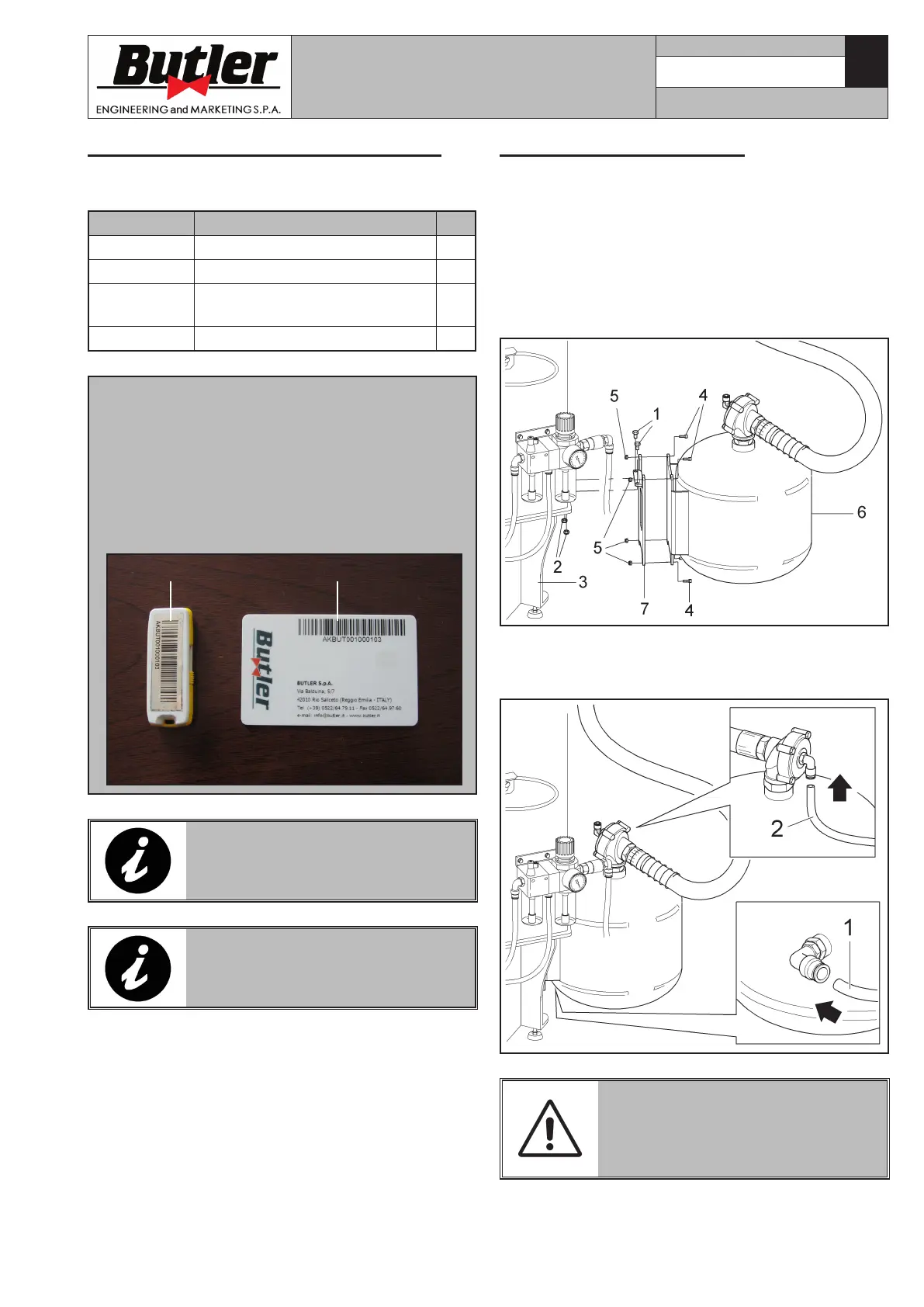

Page 12 of 67
8.3 Assembly procedures
1. Assemble “Tubeless inflation” unit to the machine
keeping to the following instructions:
- fix the tank (Fig. 7 ref. 6) to the support flange
(Fig. 7 ref. 7) using the screws (Fig. 7 ref. 4) and
nuts (Fig. 7 ref. 5) equipped on issue;
- fix the flange (Fig. 7 ref. 7) to the machine (Fig. 7
ref. 3) using the screws (Fig. 7 ref. 1) and nuts
(Fig. 7 ref. 2) equipped on issue;
Fig. 7
2. Connect the black pipe (Fig. 8 ref. 1) and the blue
pipe (Fig. 8 ref. 2) on the provided quick couplings
as shown in figure Fig. 8.
Fig. 8
IN CASE OF A CHANCE SUP-
PLY FAILURE, AND/OR BEFORE
ANY PNEUMATIC CONNECTIONS,
MOVE THE CONTROLS TO THE
NEUTRAL POSITION.
CAPTURE 4 - CAPTURE 4 FI
7104-M007-4_B
8.2 Fixtures contained in the packing
The packing case contains also the fixtures box.
Check that all the parts listed are there.
Code Description N.
B1157000 Two-faced cone 1
710013421 Reverse wheels protection 1
G1000A124
Bead depressing 28" with en-
trainer
1
G1000A152 D.14 pin light truck flange 1
Each machine is supplied with an activation kit
(WARNING: DO NOT THROW AWAY!) in a sepa-
rated box near the monitor; the kit consists of:
- SMART CARD (ref. 1) with serial number
(WARNING: DO NOT THROW AWAY!);
- USB (ref. 2) marked with the same serial num-
ber and containing the machine PC installation
files. The card can be used for backup procedure
(save) and for PC data restore.
12
CAREFULLY KEEP THIS MATE-
RIAL AS IT WON'T BE SUPPLIED
AGAIN AS A SPARE PART.
THE MANUFACTURER DENIES LI-
ABILITY FOR THE LOSS OF THE
SMART CARD AND/OR USB KEY.
