INSTRUCTION, USE AND

MAINTENANCE MANUAL

Page 34 of 67

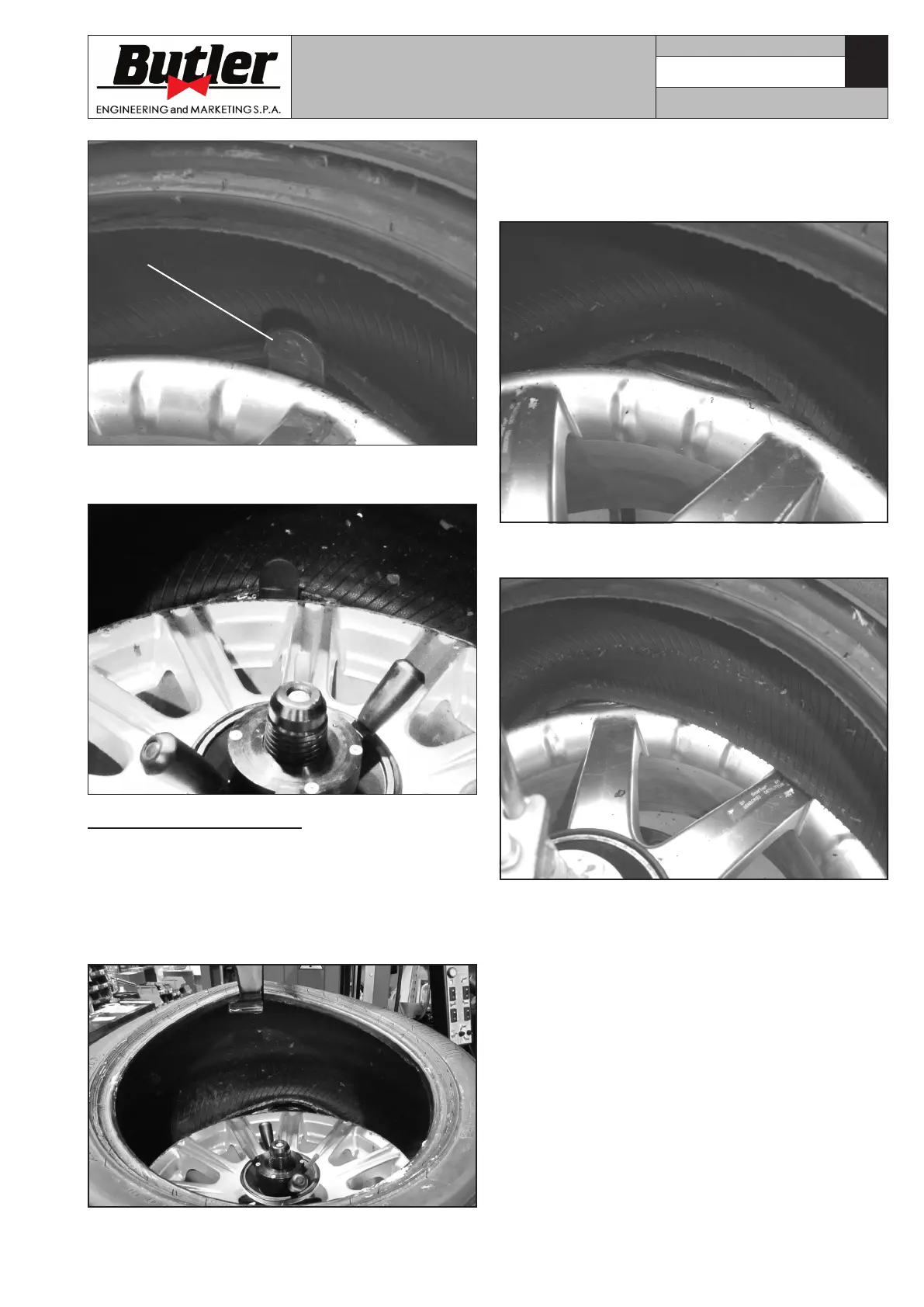

Fig. 38

16. Rotate the mandrel clockwise until the tyre is com-

pletely disassembled (see Fig. 39).

Fig. 39

Demounting the lower bead

To disassemble the lower tyre the bead breaking roller

can be used alternatively. Lift the tool and go away from

the working area.

17. Lift the roll and the tyre just next to the rim edge

(see Fig. 40) using the push button (Fig. 14

ref. E).

Fig. 40

18. Then, move forward the roll through the provided

control (Fig. 14 ref. E) so that it is inserted

between the rim edge and the lower bead (see

Fig. 41).

Fig. 41

19. Then, rotate and complete bead disassembly (see

Fig. 42).

Fig. 42
