BWT COVERDECK - 3. Positioning Regulator and Overflow; Water Level Regulator Placement; Overflow Level Adjustment

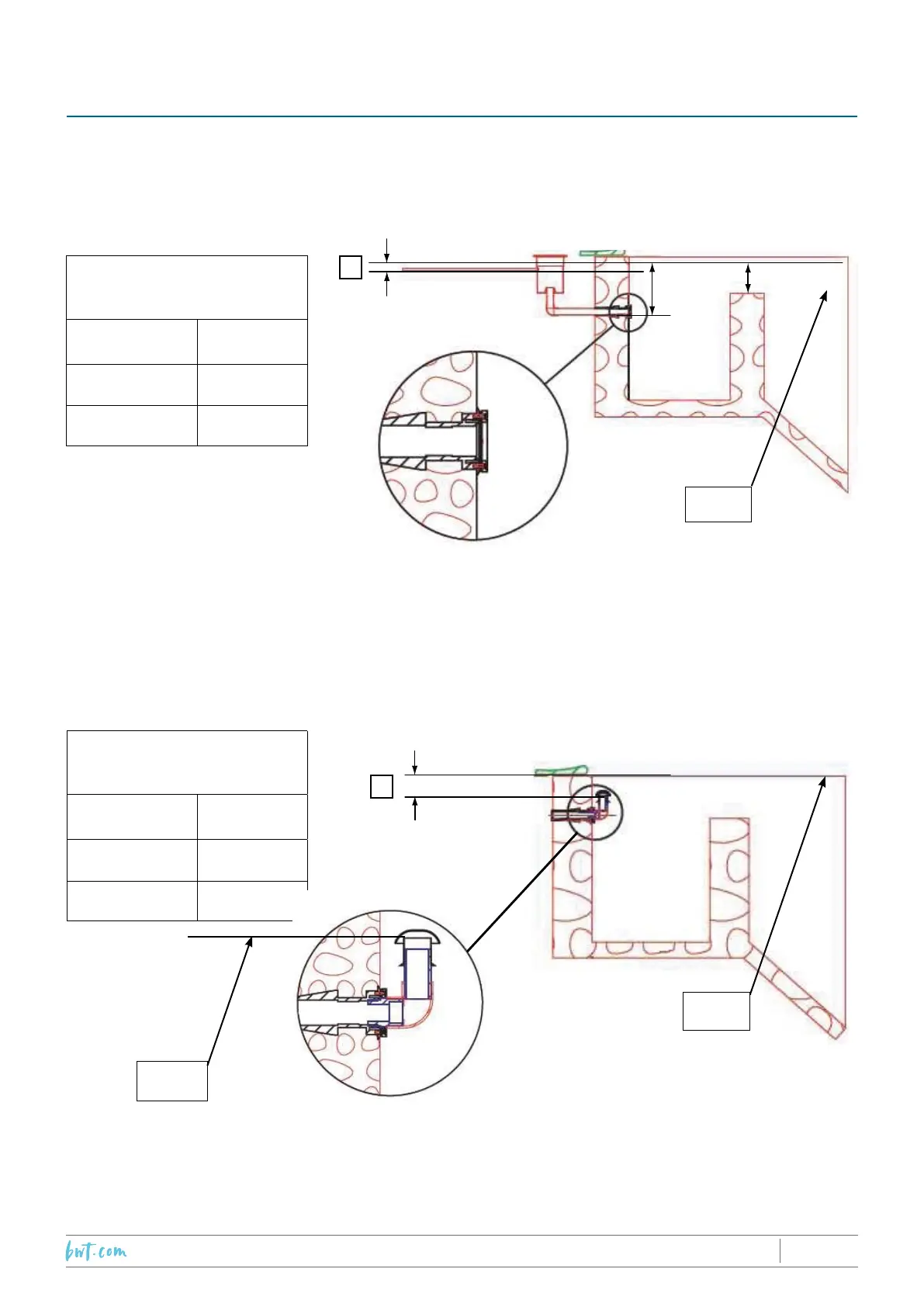

A: Filling stop level with respect to the
deck level
Coping M30 135 mm
Coping M40 125 mm
Coping M55 110 mm
B: Filling start level with respect to the
deck level
Coping M30 115 mm
Coping M40 105 mm
Coping M55 90 mm
A
B
40
21
The water level A is between 110 and 135 mm from the top of the body with respect to the height of the
coping. Adjustable by ± 40 mm.
2.1 Overow
While positionning the overow make sure to roll the cover up totally so that the rst slat is 10cm under
the water level.
The overow B should be positioned between 90 and 115mm with respect to the pool level as a function
of the coping height + 5mm, take care to ensure that the motor gland is not submerged.
By respecting these measurements, the water level lies 20mm under the bottom of the overow opening;
this minimises the volume of water evacuated to waste when the cover is rolled up.
A
B
40
21
Deck
level
Deck
level
Overflow
level
3. IMPORTANT : POSITIONING THE LEVER REGULATOR AND
OVERFLOW
3.1 Water level regulator (add water):
While positioning the water level regulator, make sure to roll the cover out totally (the rst slat touching the
wall opposite the axle). Position the regulator as shown below:
2019/01 - Indice de révision : N - Code : 34201PROTECTION & SÉCURITÉ
35/60
