BWT COVERDECK - 14. Beam Assembly Instructions; Coverdeck Attachment Kit and Beam Assembly

1
3
6
7
2
4
5
8
* 4 screws over if the pit wall option is not installed.
Right-hand side
Left-hand side

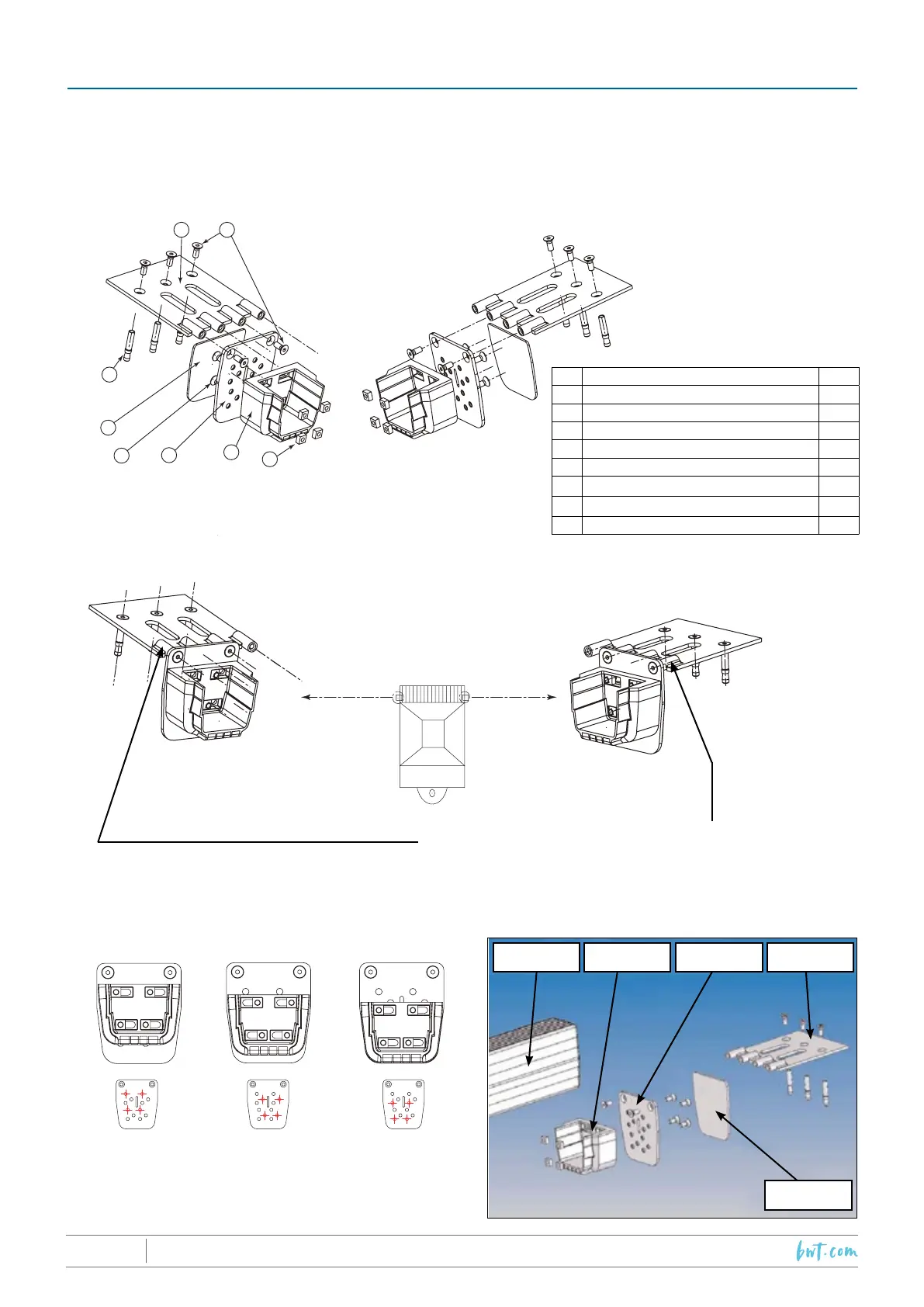

14.1 Coverdeck attachment kit & coverdeck beam
1
3
6
7
2
4
5
8
1
3
6
7
2
4
5
8
Adjust the height of the beam housing to the thickness of the
coping using the corresponding holes such that the top of the
beam is flush with the top of the coping.
Coping M55 Coping M40 Coping M30
Assembly left-hand sideAssembly right-hand side
Coverdeck
beam
Coverdeck beam
housing
Beam mounting
plate
Sub-coping
mounting plate
Beam mounting
gasket
During assembly, use tapped bushings to ensure that the beam
mounting plate is as far forward towards the pool as possible on
each side
14. ASSEMBLING THE BEAMS
No Designation Qty
1 Coverdeck sub-coping mounting plate 2
2 Coverdeck beam mounting plate 2
3 CSFSH M8-20 screw 14*
4 Beam support 2
5
Q M8 nut 8
6
Upat Express M8x50 A4 bushing 6
7
Beam mounting gasket 2
8 CSFSH M8-16 screw 8
