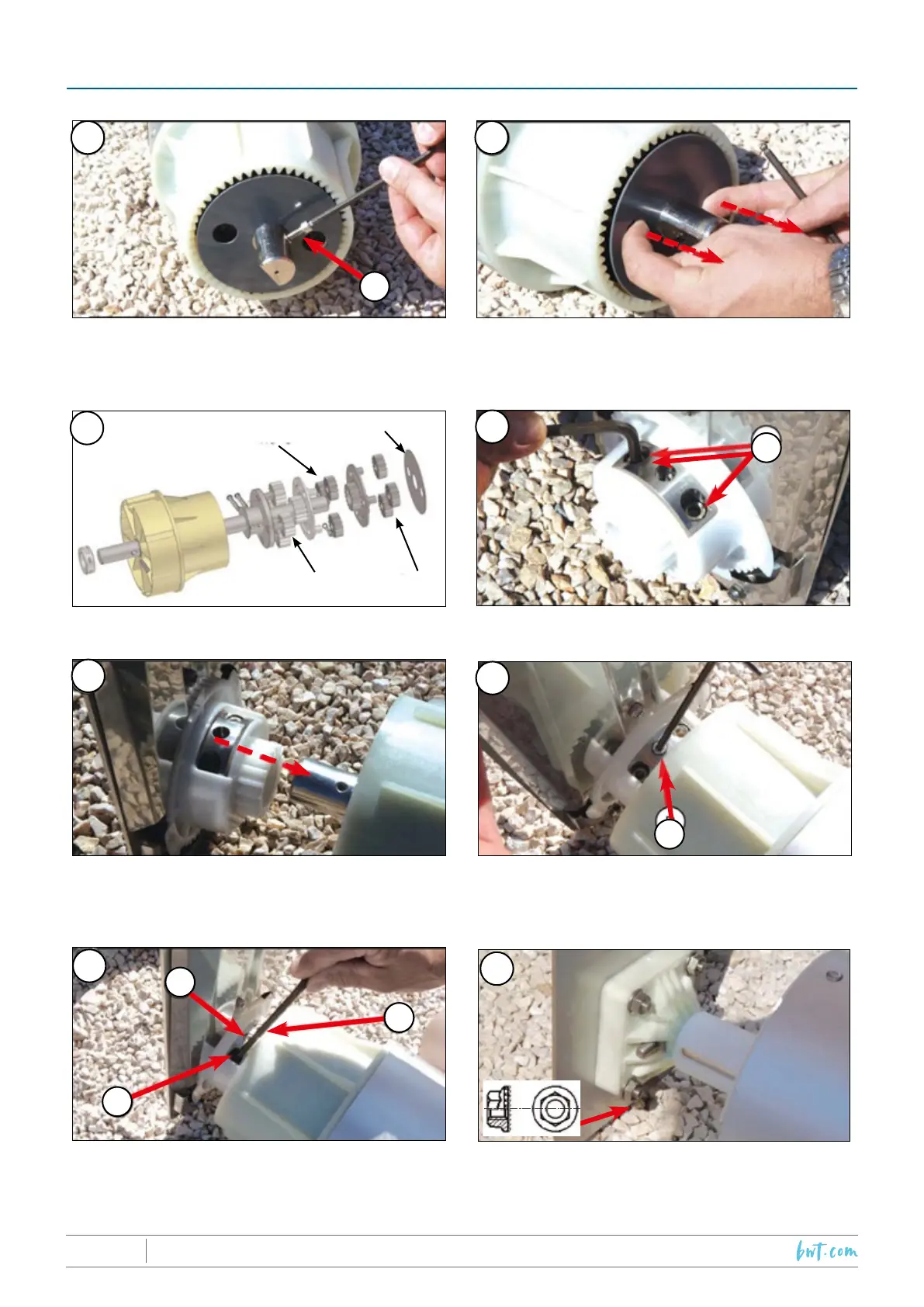

BWT COVERDECK - 4. Assembly Prior to Submersion; Reduction Gear and Pulley Mechanism Assembly

Position the port of the pulley so that it is opposite the
at bar at the end of the stainless steel shaft. Push the
plate towards the axle to drive the stainless steel shaft
into the pulley.
7
Thread the HSHC M6x30 screw (B) through the
aperture in the pulley port, tighten in the stainless steel
shaft tapping and lock it.
8
B
Remove the HSHC M6x20 (B) screw from the end of the
axle on the reduction gear housing side.
3
Remove the protective cover from the gears by inserting
both index ngers into the holes and pulling. Dispose of
the cover (only used during transport). Keep the reduction
gear housing tilted upwards to avoid dropping the gears.
4
B
Loosen the two HSHC M8x30 (A) screws on the pulley
on the motor side.
6
A
An exploded view of the reduction gear assembly.
5
Protective
cover
3 black
gears
4 black
gears
3 pignons
noirs
4. ASSEMBLY PRIOR TO SUBMERSION
In addition, to clamp the assembly together, insert the
two HSHC M8x30 screws (A).
9
A
A
B
At the opposite end to the motor, secure the bearing to the
end xing plate using the 4 CSFSH M8x50 screws and
the hex collar nuts. Caution! the curve on the top side of
the end xing plate should be directed towards the axle.
10
