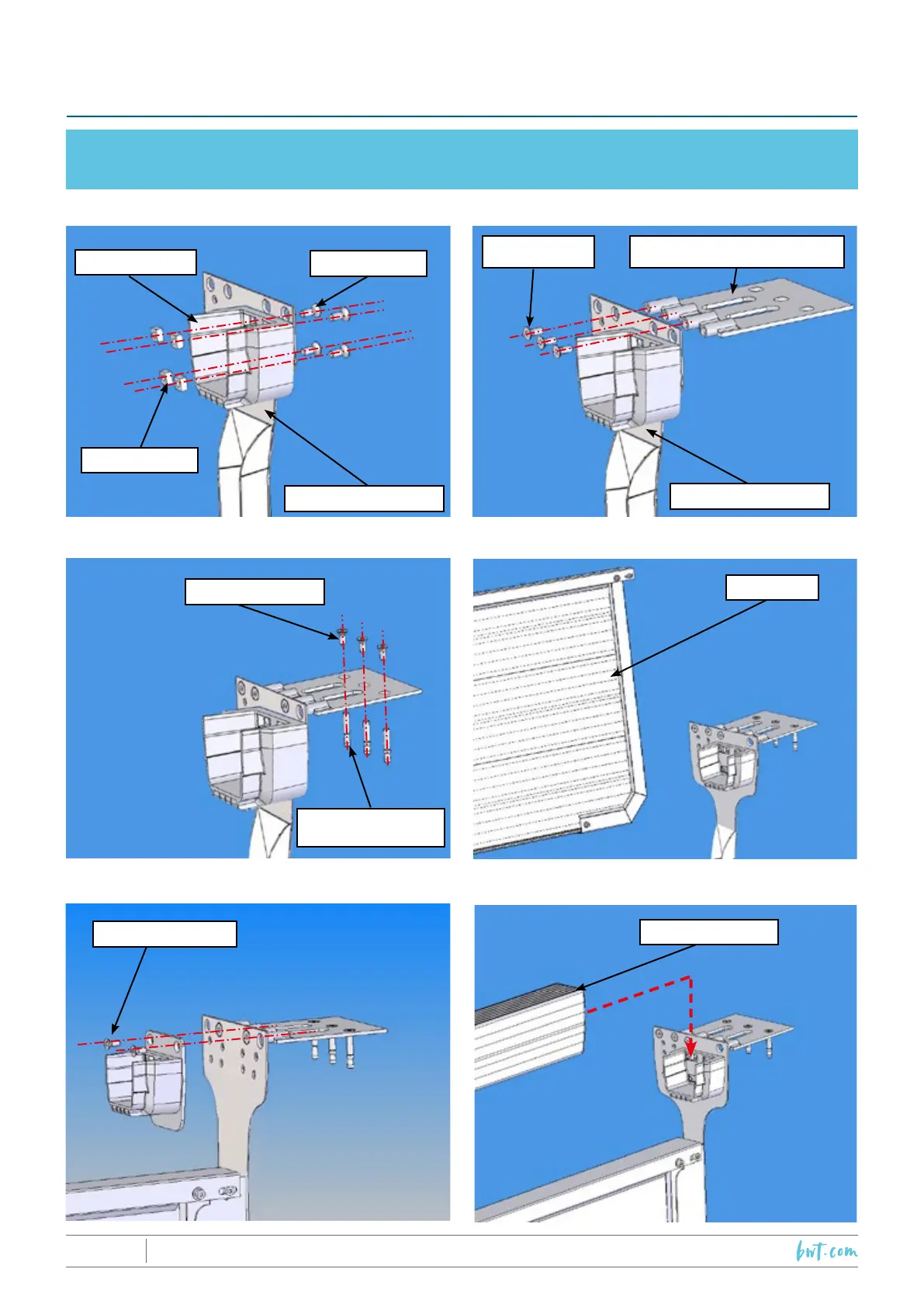

BWT COVERDECK - 15. Pit Wall Assembly Detail - Left-Hand Side; Pit Wall Assembly Steps - Left-Hand Side

Step 5
CSFSH M8x20 screw
Step 6
Coverdeck beam
Step 3
CSFSH M8x20 screw
Upat Express
bushings M8x50 A4
Step 4
Pit wall
15. PIT WALL WITH COVERDECK ATTACHMENT KITS &
COVERDECK BEAM - ASSEMBLY DETAIL (LEFT-HAND SIDE)
Vis FHC M8x16
Beam housing
Q nut M8
CSFSH M8x16 screw
Step 1
Coverdeck sub-coping
mounting plate
Pit wall support flange
CSFSH M8x20
screw
Step 2
THE SEQUENCE BELOW ILLUSTRATES ASSEMBLY ON THE LEFT-HAND SIDE.
FOR ASSEMBLY ON THE RIGHT HAND SIDE, PROCEED IN A SYMETRICAL FASHION.
