CAB A Series Service Manual

10
11
8
9
6
6
7
5
4
3
4
1
2

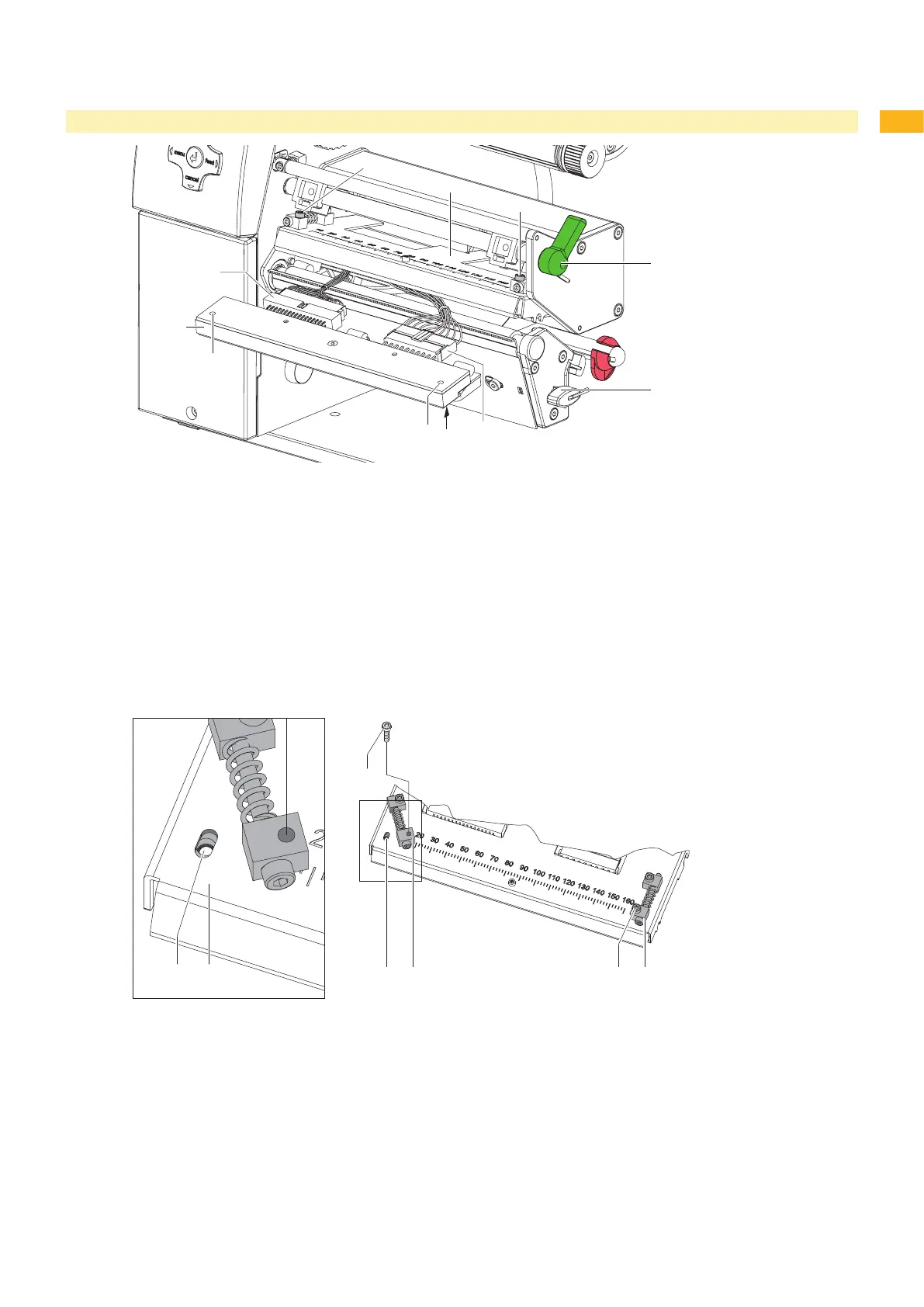

Fig. 7 Removing and installing the printhead A6+, A8+
Removing the printhead
Turn lever (8) counterclockwise to lift the printhead.
Remove labels and transfer ribbon from the printer.
Remove Allen key (9) from its retainer.
Lightly keep printhead mounting bracket (7) on the print roller with one nger and loosen screws (6) with the Allen
key.
Swivel printhead mounting bracket (7) upward.
Remove printhead from the printhead mounting bracket (7) if necessary.
Loosen both plug connections (2, 3) on the printhead.
10 7
10 11
6
116
Fig. 8 Installing the printhead A6+, A8+
Installing the printhead
Attach plug connections (2, 3).
Swing the adjustment elements (11) sidewards to uncover the slots (10) in the printhead carriage.
Put in the printhead into the printhead carriage and swing down the printhead assembly by hand and hold it.
Position the printhead in such a way that the threaded holes of the printhead are centered into the slots (10) of the
printhead carriage.
Swing back the adjustment elements (11) to the home position.
Insert and tighten the screws (6).
Reload labels and transfer ribbon.
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4.
5.
6.
7.
3 Replacing Assembly Units
