3.6 Replacing the Label Sensor
Notice!
Soiling of the label sensor can also cause malfunctions. Before replacing the label sensor, check whether it
is soiled and clean it if necessary..
For A2+, A4+, A4.3+ Operator's Manual, for A6+, A8+ 2.2 on page 6.
Danger!
Risk of death via electric shock!
Before opening the housing cover, disconnect the device from the mains supply and wait at lease one
minute until the power supply unit has discharged.
3.6.1 Replacing Standard Label Sensor A+

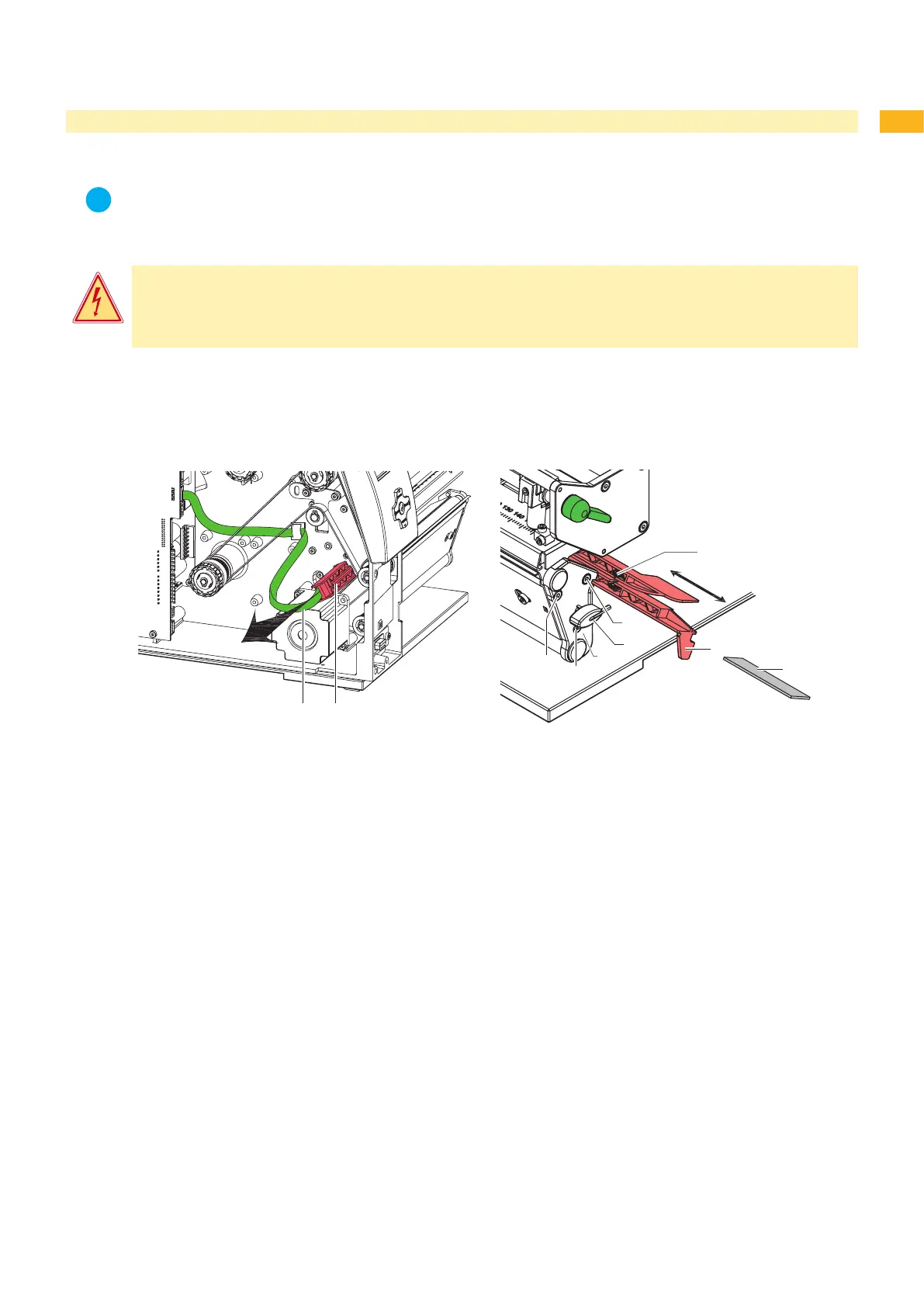

Fig. 14 Replacing the standard label sensor
Removing the label sensor
Remove media from the printer.
Remove the Allen key (6) from its retainer.
Remove the rear cover of the printer.
Slide the label sensor assembly onto the tab (4) toward the rear cover until it stops.
Unplug the cable (2) from the plug on the rear end of the label sensor (1).
Unscrew the screws (5) with an Allen key and remove the side plate (7).
Pull out the label sensor (1) via the tab (4) toward the cover side. At A6+ and A8+ that way the distance plate (3)
is pushed out of label sensor guide.
Installing the label sensor
Insert the label sensor (1) into the guide from the cover side and slide it onto the tab (5) toward the rear cover until
it stops. At A6+ push the distance plate (3) into the guide of the label sensor.
Remount the side plate (7) with the screws (5) by tightening the screws in order, i.e. a, b then c.
Connect the cable (2) to the label sensor (1).
Pull the label sensor (1) via the tab (4) as far as possible toward the cover side.
This prevents the cable (2) from being pinched when installing the rear cover.
Install the rear cover of the printer.
Insert the Allen key (6) into its retainer.
Adjust the label sensor Conguration Manual.
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4.
5.
6.
7.
